Alpha Technologies AlphaNet Series External DOCSIS Analog - Manual (Page 26)

26 745-419-C0-002, Rev. B
2.0 Transponder Installation, continued
2.8 Transponder Placement
Place the transponder in the power supply section of the enclosure away from other heat
sources.
Procedure:
1. Connect all cables to the front of the transponder before mounting.
2. Select an area on the right side of the enclosure if possible (as shown below).
3. Test fi t the transponder to ensure that the cables are long enough.
4. Clean the area to ensure a strong bond with the adhesive.
5. Remove the protective tape over the adhesive and press into place.

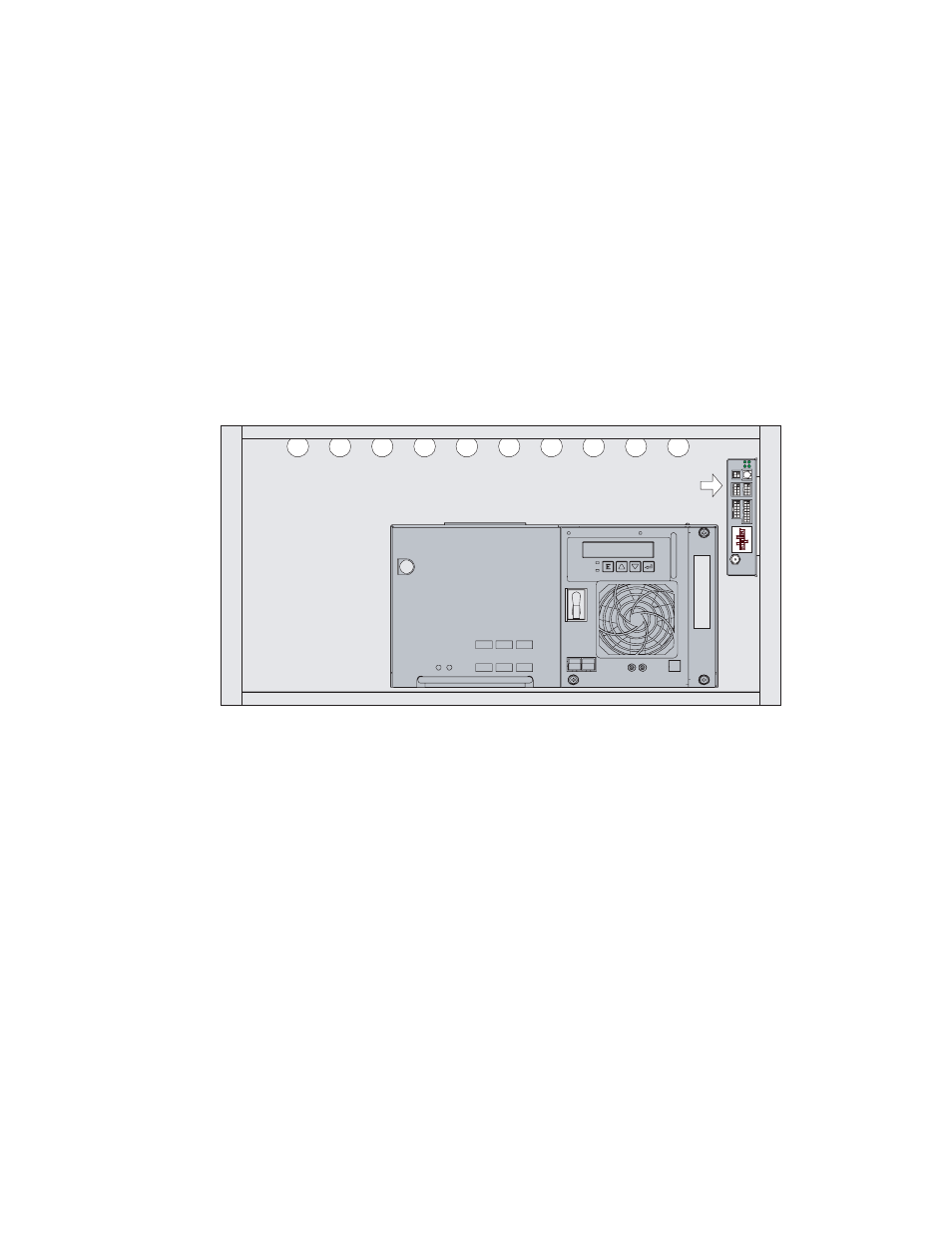

Fig. 2-9, Suggested Transponder Mounting Location
1
1 1
1 1
Power Supply Compartment
Mount Transponder
in this area
