1.0 Introduction to the DOCSIS Transponder, continued
1.1 System Overview
The DOCSIS Analog Transponder receives data from a Universal Status Monitoring Card on
XM series power supplies, from the status monitor connector on Lectro ZTT power supplies,
or from the RPM card on AM power supplies. The transponder and power supply can be
network managed through your existing CMTS.

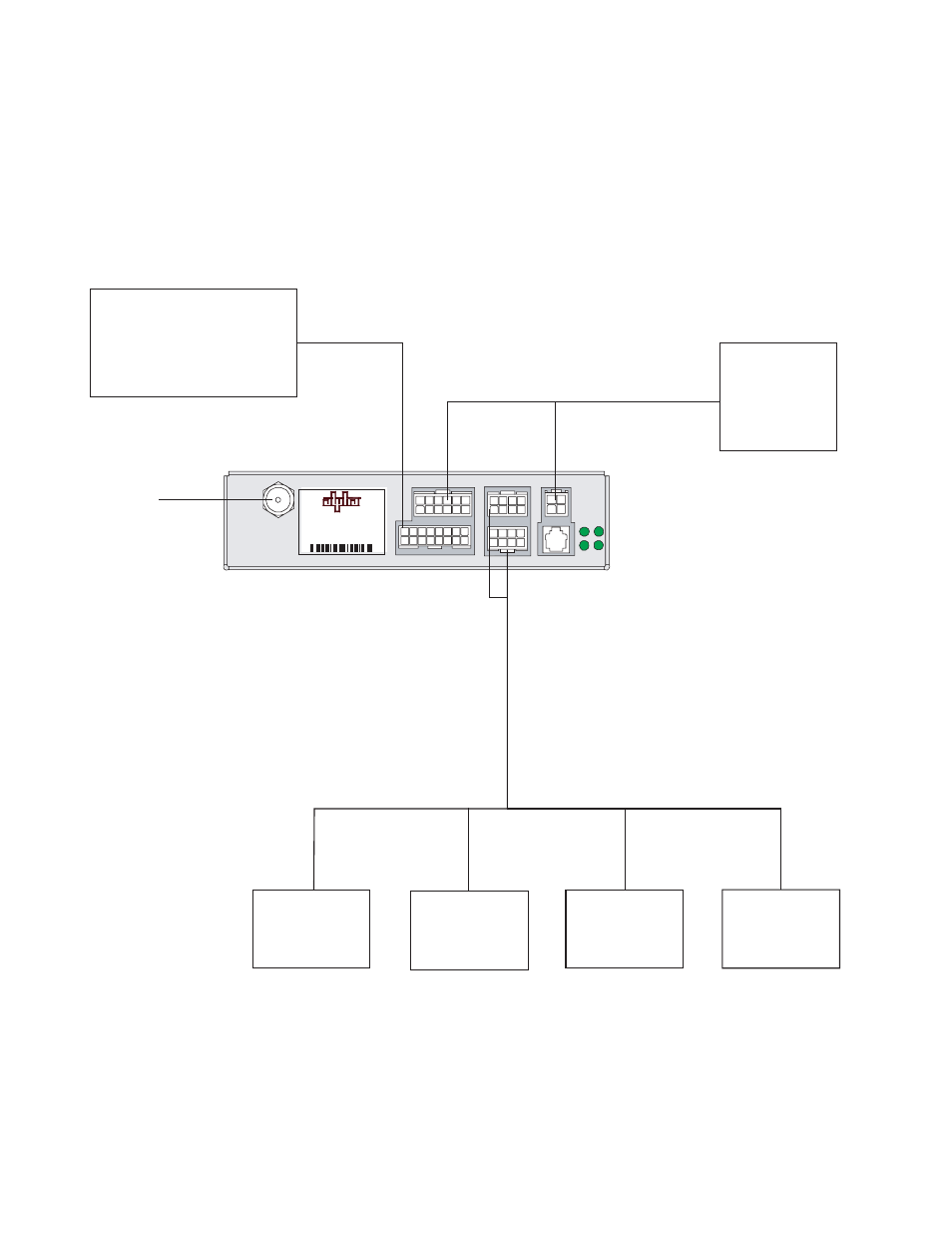

Fig. 1-2, Basic System Block Diagram
PWR SPLY
R
F
GEN
BAT C/D
BAT A/B AUX PWR
LOCAL
RX
TX
1 1 1
CM: 00:10:3F:XX:XX:XX
P/N: 745-419-20-XXX
S/N: XXXXXX 1 1
Up to Four 24V, 36V, or 48V Battery Strings
To CMTS
Power Supply
(XM, XM2, ZTT, or AM)
AlphaGen
Generator
System
Battery
String
Battery
String
Battery
String
Battery
String
