4. Installation
The power system must be mounted in a clean and dry environment. Provide sufficient free space at the front
and rear of the distribution system to allow easy access to the system components.
4.1 Rack Mounting
The CXDS-M is designed for a standard flush or center mount in a 19" or 23" rack.
1. Mechanically secure the rack to the floor or other suitable structure.
2. Mount the BDFB(s) to the rack using four #12 – 24 x 1/2" screws in each bracket.
3. Use Phillips-type screws and screwdriver to prevent slippage and scratching of the unit’s exterior.
4. Washers (such as internal tooth) or special screws that are designed to cut through the painted surface
should be used to ensure a good chassis ground.

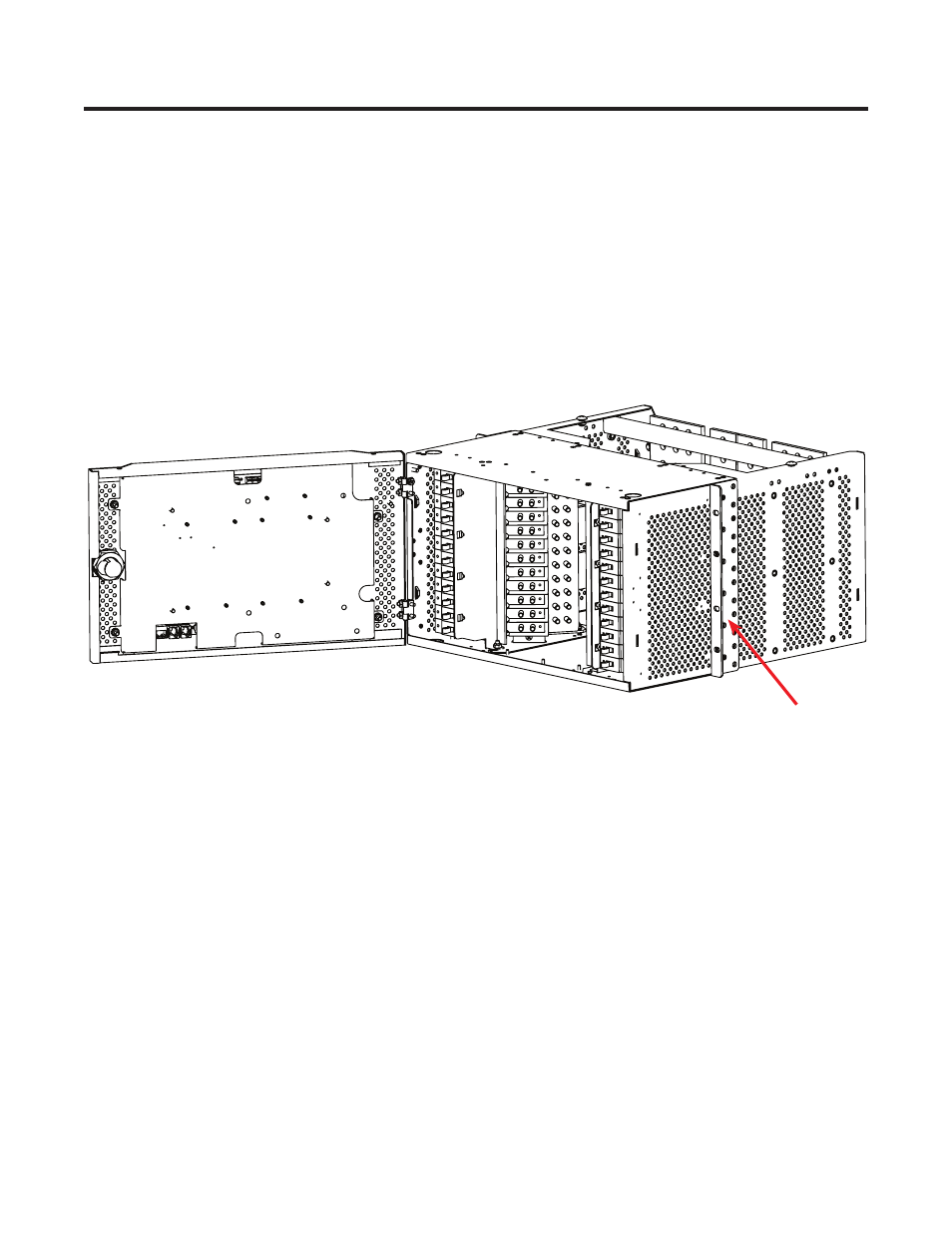

Figure 10 — BDFB with center mount brackets
Mounting brackets can
be moved for flush or
center mounting.
