4.2 Using the Standard Interface Device, continued
Line Synchronization
When both the “LINE POWER” and “LINE FAILURE” LEDs are ON, the UPS is
synchronizing its output frequency to the utility input prior to resuming AC line
operation. Synchronization takes approximately 15 seconds. If the line frequency
(generator frequency) is out of tolerance, the UPS can not synchronize to it, and stays
in the inverter mode.
Line Failure (AC Input Out of Tolerance)
Whenever AC line voltage becomes unacceptably high or low (+10 % /
25%), or the line frequency exceeds + 3%, the "LINE PRESENT" LED
flashes and the "LINE FAILURE" LED lights indicating the UPS is
running on backup power.
NOTE: High generator THD can also cause this condition.
Line Failure Operation
Whenever a utility power outage occurs, the UPS initiates LINE FAILURE
operation without interruption of output power. The amber “LINE FAILURE” LED lights
to indicate that the UPS is running on backup power.

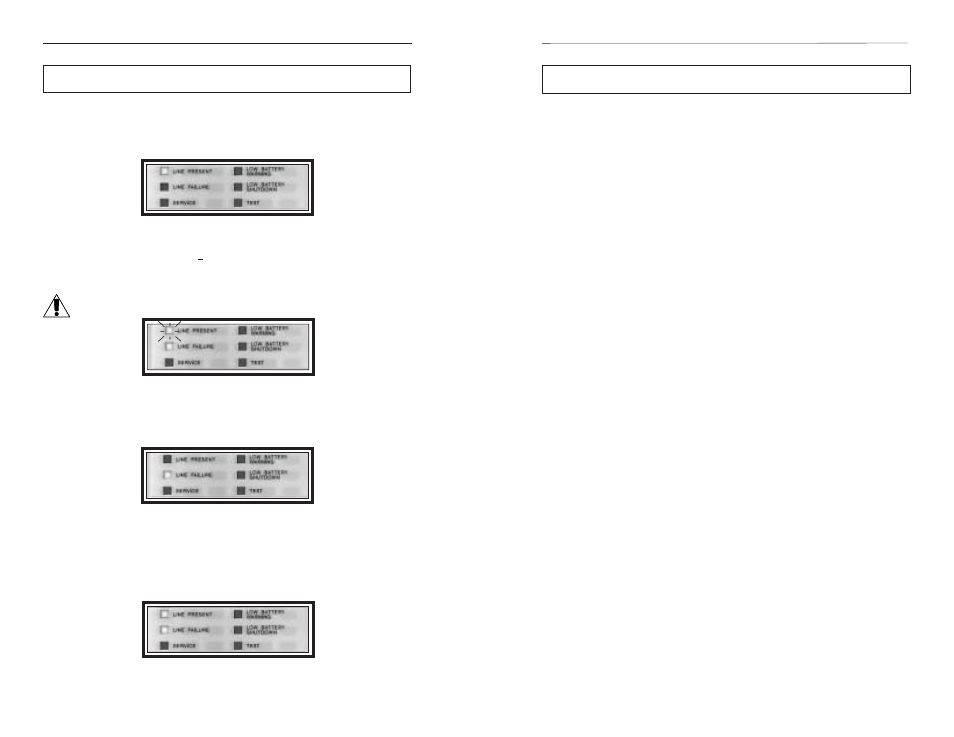

Fig.19
Fig. 21
Fig.22
Fig.20
Line Present Operation
The green “LINE PRESENT” LED indicates that the UPS is running on AC line
(utility / mains) power.
5. RS-232 TERMINAL COMMUNICATION
35
The menu items outlined in this manual can be accessed from a remote terminal.
The numbers contained in this guide act as a quick reference to accessing menu
functions. Single-digit numbers relate to specific main menus. Double-digit numbers
relate to specific sub-menus.
0 QUERY ALL PARAMETERS
1 SYSTEM PARAMETERS
BATTERY TEMPERATURE
11 START TEST Mode
12 STOP TEST Mode
2 INPUT PARAMETERS
VOLTAGE
CURRENT
VOLT AMPS
POWER IN WATTS
POWER FACTOR
LINE FREQUENCY
3 OUTPUT PARAMETERS
OUTPUT #1
VOLTAGE
CURRENT
OUTPUT #2
VOLTAGE
CURRENT
VOLT AMPS
POWER IN WATTS
POWER FACTOR
LINE FREQUENCY
4 BATTERY PARAMETERS
VOLTAGE
CURRENT
CHARGER STATUS
TEMPERATURE
5 USER PARAMETERS
SET TEST SCHEDULE
53 SET TEST START
55 SET TEST FREQUENCY
56 TRANSMIT UNSOLICITED ALARMS
58 SET USER SECURITY CODE
59 SET MAINTENANCE SECURITY CODE
CFR SOFTWARE VER.
MICRO BOARD SER. NO.
EEPROM VERSION NO.
POWER BOARD SER. NO.
501 START SHUTDOWN WHEN DELAY IS SET
502 START OUTPUT SHUTDOWN
503 CANCEL OUTPUT SHUTDOWN
504 RECOVER OUTPUT SHUTDOWN ONLY WHEN AC LINE RESTORED
505 SET OUTPUT SHUTDOWN DELAY
506 SET OUTPUT SHUTDOWN DURATION
507 SHUT OFF INVERTER - SAVE BATTERY
508 START UP INVERTER FROM SAVE BATTERY
509 NONE
510 TRANSMIT IPC-XXX TYPE UNSOLICITED ALARMS
511 INVERTER ON ALARM DELAY
6 - not available -
7 MAINTENANCE PARAMETERS
70
FAST DETECT LOW REF
71 FAST DETECT HIGH REF
72 MEDIUM DETECT LOW REF
73 MEDIUM DETECT HIGH REF
74 SLOW DETECT LOW REF
75 SLOW DETECT HIGH REF
76 SLOW DETECT HYS. LO REF
77 SLOW DETECT HYS. HI REF
78 MAX. PLL SLEW RATE
79 BATTERY WARNING REF.
5.3 Remote Terminal Quick Reference
