Alpha Technologies CFR 5000, CFR 5000RM - Manual (Page 74)

5 Maintenance 68
Alpha Technologies
5.5 Configuring the Input/Output Voltage (Continued)

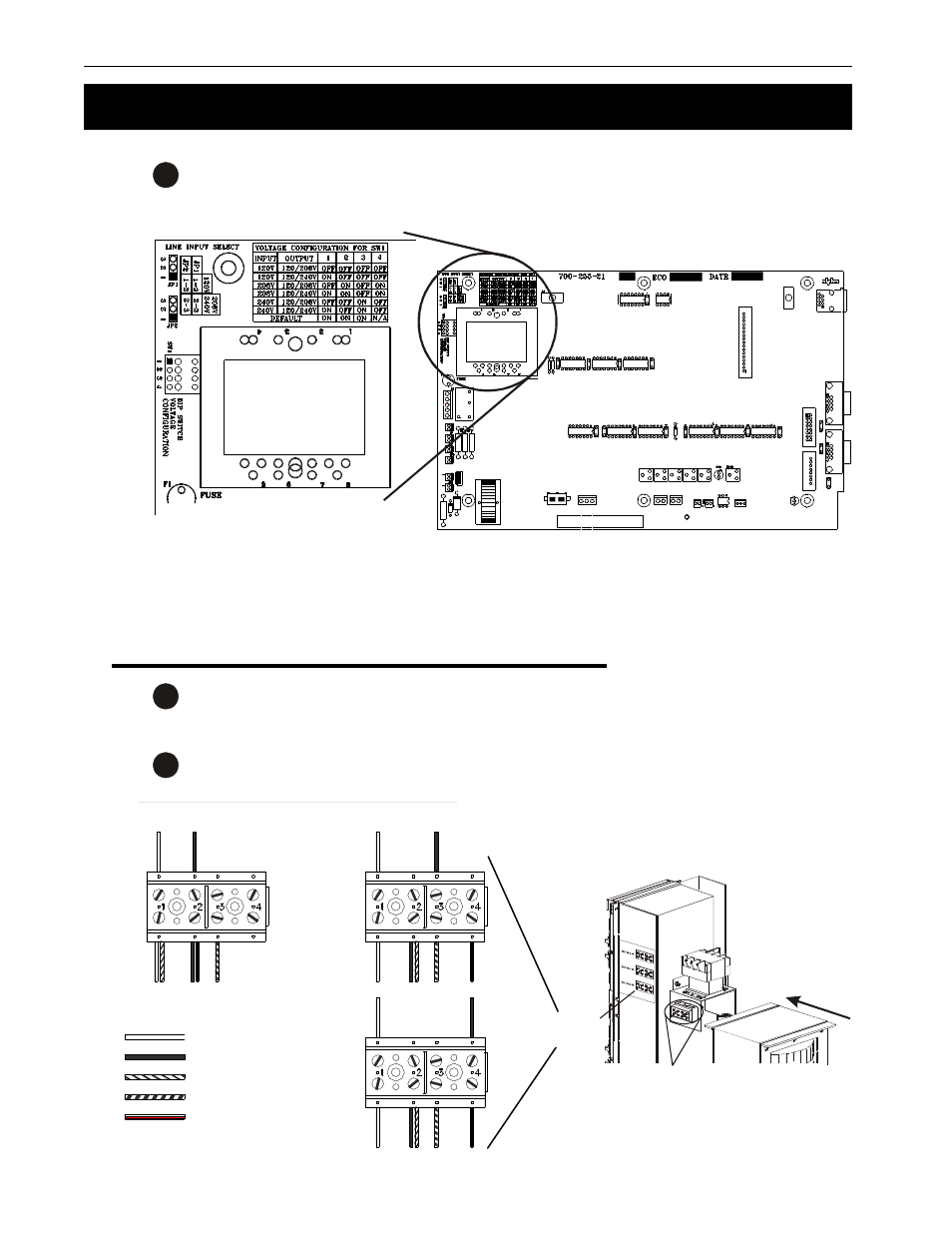

4 Reconfigure the DIP switches and the jumpers on the main board according to the
table printed on it (see diagram below).
Main Board Reconfiguration Finished. Go to Step 2.
Step 2: Reconfigure the Input Terminal Block
1 Find the input terminal block, which is on the right hand side of the unit when you
are facing the batteries.
2 On the side of the battery compartment is a chart showing how to configure the
input terminal block for 120/208/240 VAC. Configure it to the input voltage you are
using.
BA
TTE
R
IE
S
UPS FR
ONT
TRANSFORMER INPUT
TERMINAL
BLOCK
INPUT
CONFIGURATION
CHART
120 V
INPUT
208 V
INPUT
240 V
INPUT
LOWER TERMINALS
P0
P1
P2
P3
P5 WHITE
BLACK
WHT/BLK
BLK/WHT
BLK/RED
