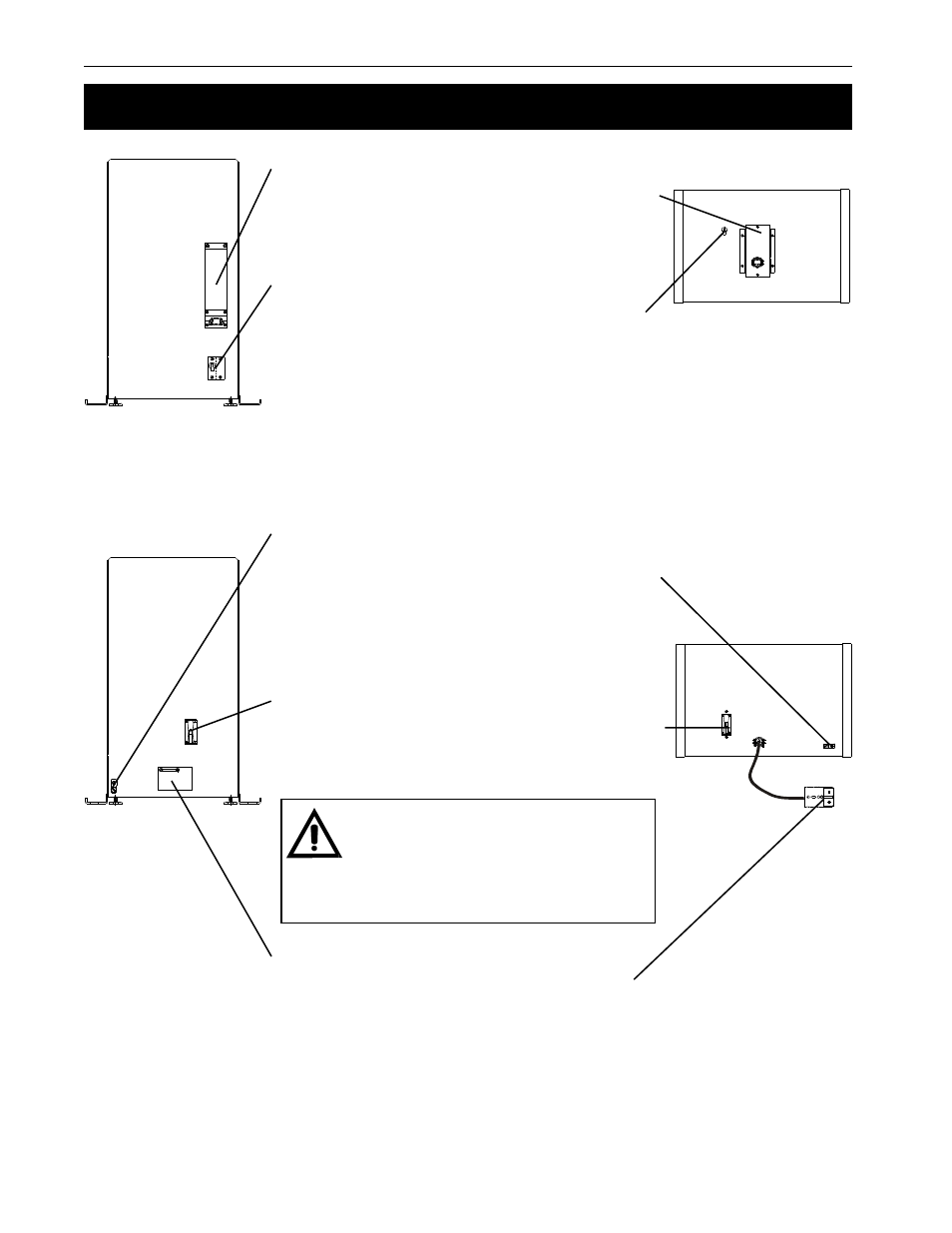

1.3 The Alpha CFR 5000 and CFR 5000RM (Continued)
Input Line Cord or Terminal Block
This is the unit’s line connector. It can either be
a standard, grounded line cord or be factory
configured to your specifications.
Input Circuit Breaker
This provides protection for the unit. It can be
used as an input power on/off switch.
External Ground Lug
This provides a single point ground connec-
tion. Always follow your local electrical code for
correct grounding.
This connector grounds the external EBP
battery packs to the unit
Battery Circuit Breaker
This protects the unit’s inverter and DC circuits
and can be used as a battery power on/off
switch.
TIP: It should be turned off whenever
the unit is turned off for more than a
few hours or is being serviced. The
battery can be drained if this breaker
is left on.
External Battery Connector
It accepts a Blue Fast Disconnect plug from
either Alpha's EBP series battery pack or a
custom battery source (Section 2.4).
