4.1 Setting Up RS–232 Communications (Continued)
6 The CFR Screen appears.
7 Press Enter to go to the Opening
Menu (Figure 4.4).
The Opening Menu (Figure 4.5)
appears.
HyperTerminal Set-Up
Finished
Figure 4.4
Opening Menu in CFR Screen
ALPHA TECHNOLOGIES–CFR
OPENING MENU
1 SYSTEM PARAMETERS
2 INPUT PARAMETERS
3 OUTPUT PARAMETERS
4 BATTERY PARAMETERS
5 USER PARAMETERS
6 -NOT AVAILABLE-
7 MAINTENANCE PARAMETERS
INPUT LINE: PRESENT
SERVICE2: SERVICE CODE 3

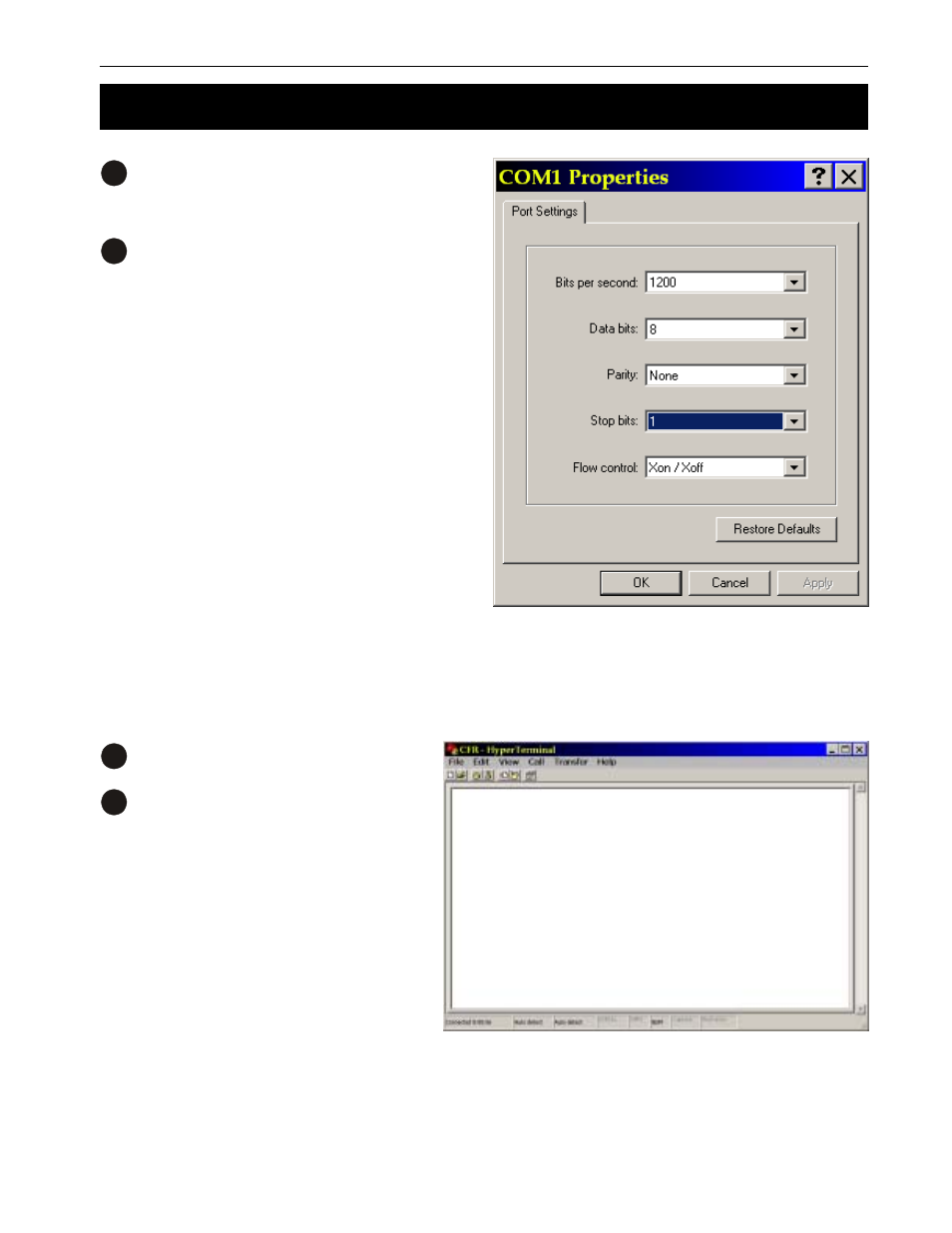

4 The Com 1 Properties screen appears
(Figure 4.3). Fill out the fields as shown.
5 Click OK.
Figure 4.3
COM 1 Properties Screen
