4.1 Setting Up RS–232 Communications
Wire the DB–9 connector as shown in Section 2.6, “Connecting the RS–232 Port.”
Windows HyperTerminal Connection
For this tutorial, Com 1 is used and the unit is called CFR.
Procedure
1 The path is Start/Programs/Accesso-
ries/Communications/HyperTerminal.
2 Click on the Hypertrm.exe icon. The

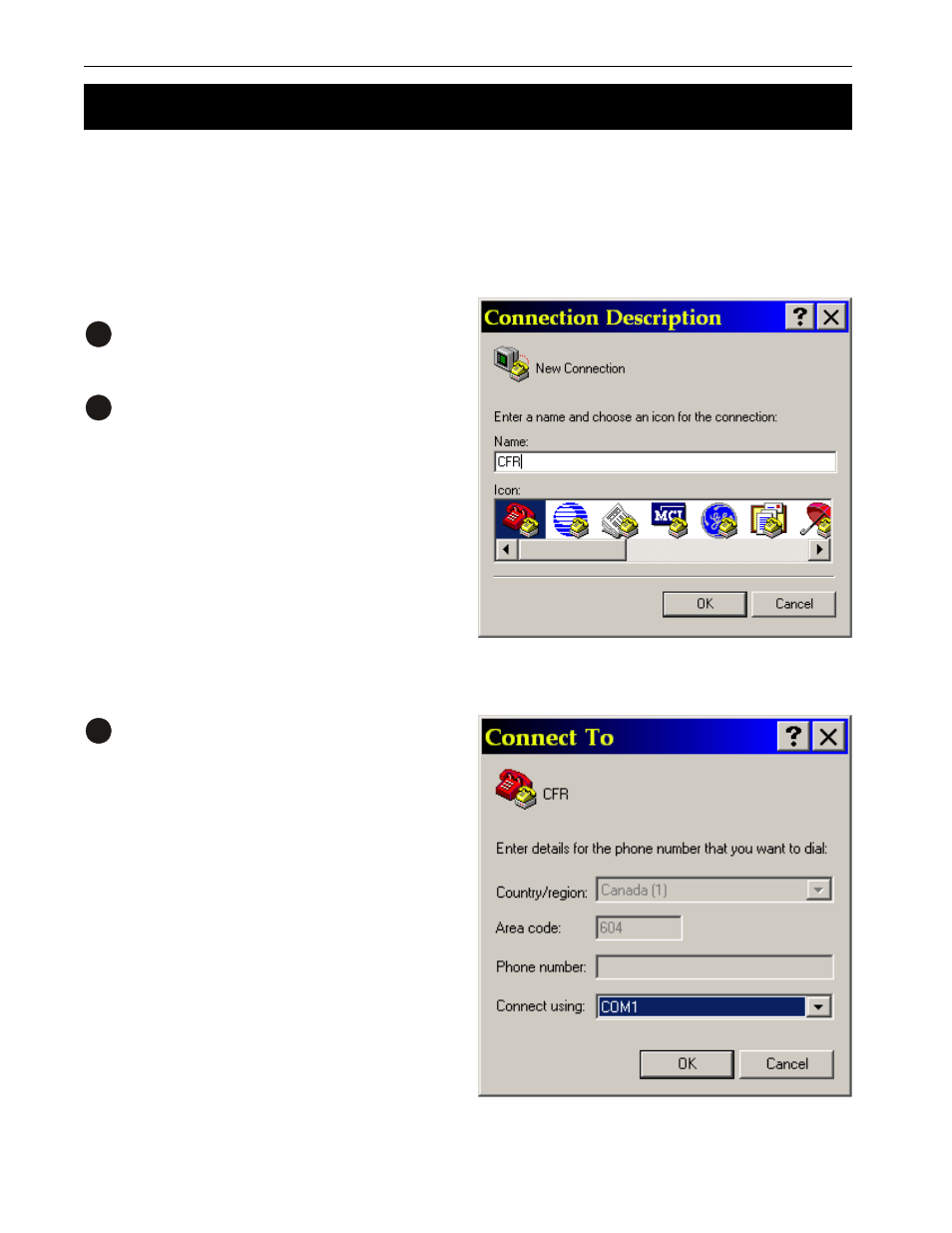

Connection Description screen appears
(Figure 4.1).
Enter a name and choose an icon for your
unit. Click OK.
Figure 4.1
Connection Description Screen
Figure 4.2
Connect To Screen
3 The Connect To screen appears (Figure
4.2).
Connect to COM 1. Click OK.
