2.7 Connecting the LAN Port
The unit can be remotely monitored and shutdown with the unit’s DB–9 LAN port (Figure 2.9).
Two dry contacts provide line failure and low battery information. A connection to the unit’s mi-
croprocessor shuts down the unit’s output. The shutdown delay, duration and recovery is con-
trolled via RS–232 commands (Section 4.5).

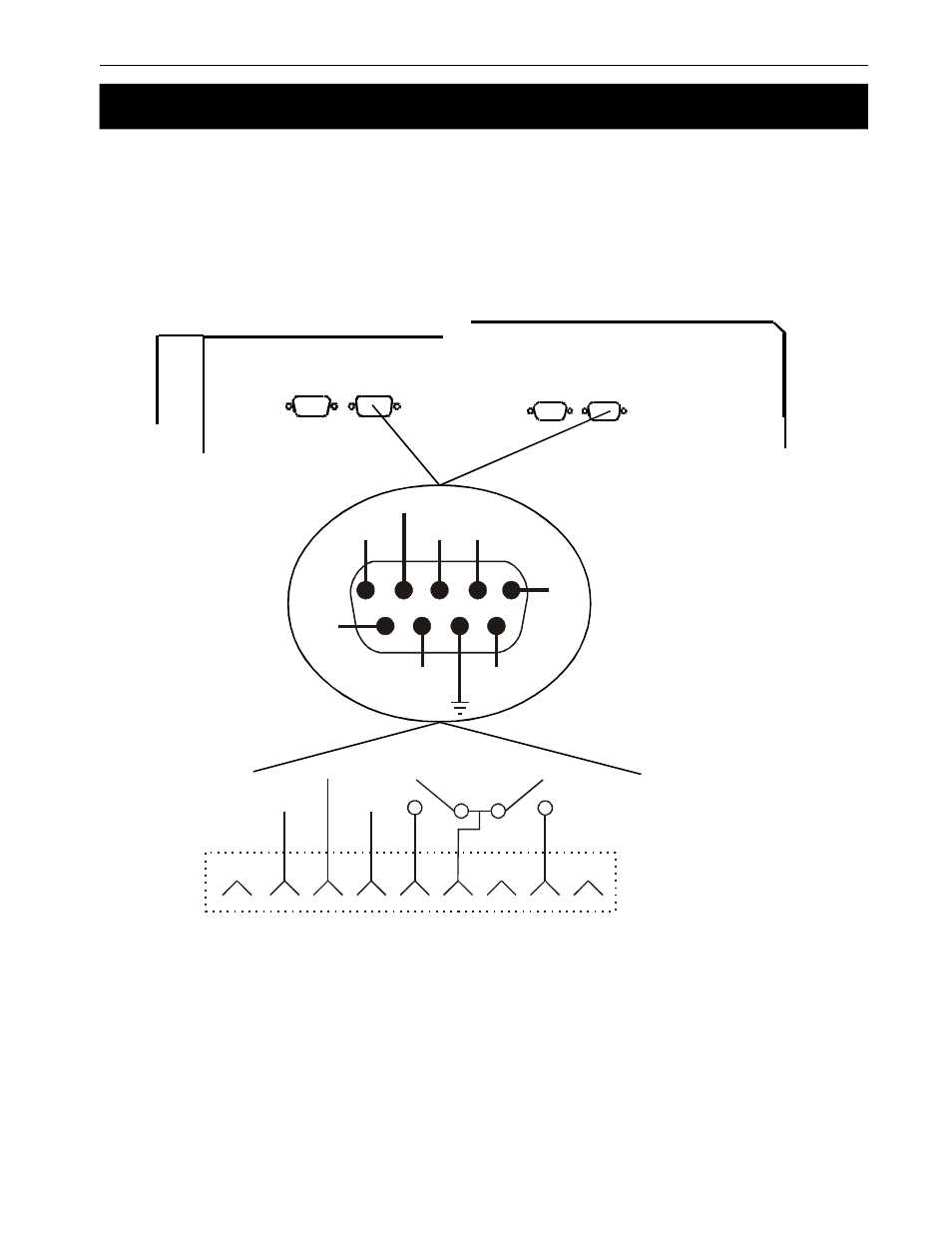

Figure 2.9
Wiring the LAN Port
8 7 6 5 4 3 2 1
Output
Shutdown
N.O. Line
Failure
N.O. Low
Battery
UPS Internal
UPS External
9
GND
+12 VDC
5 mA (Max)
Common
1 2 3 4 5
6 7 8 9
Low
Battery
Not
Connected
Not
Connected
+12 VDC
5 mA (Max)
Output
Shutdown
Line
Fail
Common
Not
Connected
