Plank wall mount – Alera Lighting PLKWM User Manual
Page 6
© 2009 Alera Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Alera Lighting reserves the right to change specifications
without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Tech Support 864.678.1580 / Website www.aleralighting.com
Page 6/6 Rev. 12/21/09
BeAMS / PLK WM TID
Plank Wall Mount
Technical Installation Data

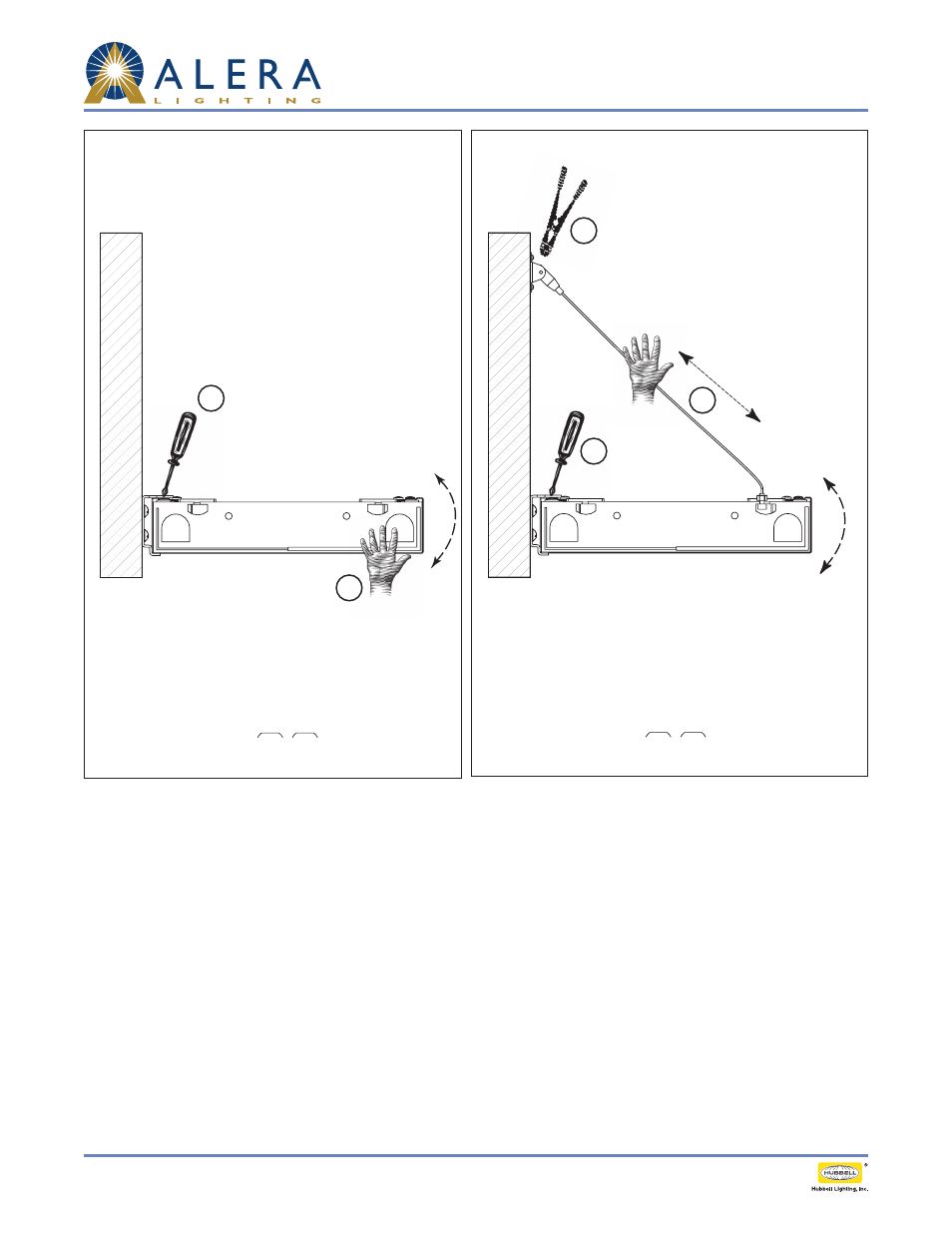

Fixture Leveling Without Cable
Fixture Leveling Without Cable
Step 10A
Step 10B
1
1
2
2
1. Move end of fixture by hand until level.
2. Tighten attachment screw (#8 Flat-Head) securely to hold fixture in position)
1. Adjust length of cable by hand until fixture is level.
2. Tighten attachment screw (#8 Flat-Head) to a snug fit. Over-
tightening may shift fixture.
3. Trim off excess aircraft cable extending through wall cleat.
