Description
The A+ClAss™ Daylight sensor provides daylight level information to the Classroom Control Module. The Daylight sensor continuously
measures daylight levels and sends this information to the Classroom Control Module.
speciFicAtions
• supply voltage (supplied by Classroom Control Module): 24VDC
• Ul and cUl listed when installed as part of a complete A+Class™ system
• 5-year warranty when installed as part of a complete A+Class™ system
precAUtions
• CAUTION: FOR USE WITH CLASS 2, LOW VOLTAGE SYSTEMS ONLY. DO NOT USE IN HIGH VOLTAGE APPLICATIONS.
• Read and understand all instructions before beginning installation.
• NOTICE: For installation by a licensed electrician in accordance with National and/or local Electrical Codes.
• NOTICE: For indoor use only.
• CAUTION: USE COPPER CONDUCTOR ONLY.
• Confirm device ratings are suitable for application prior to installation. Use of device in applications beyond its specified ratings or in
applications other than its intended use may cause an unsafe condition and will void manufacturer’s warranty.
• NOTICE: Do not install if any damage to product is noticed.
incLUDeD coMponents
1. Classroom Control Module (CCM)

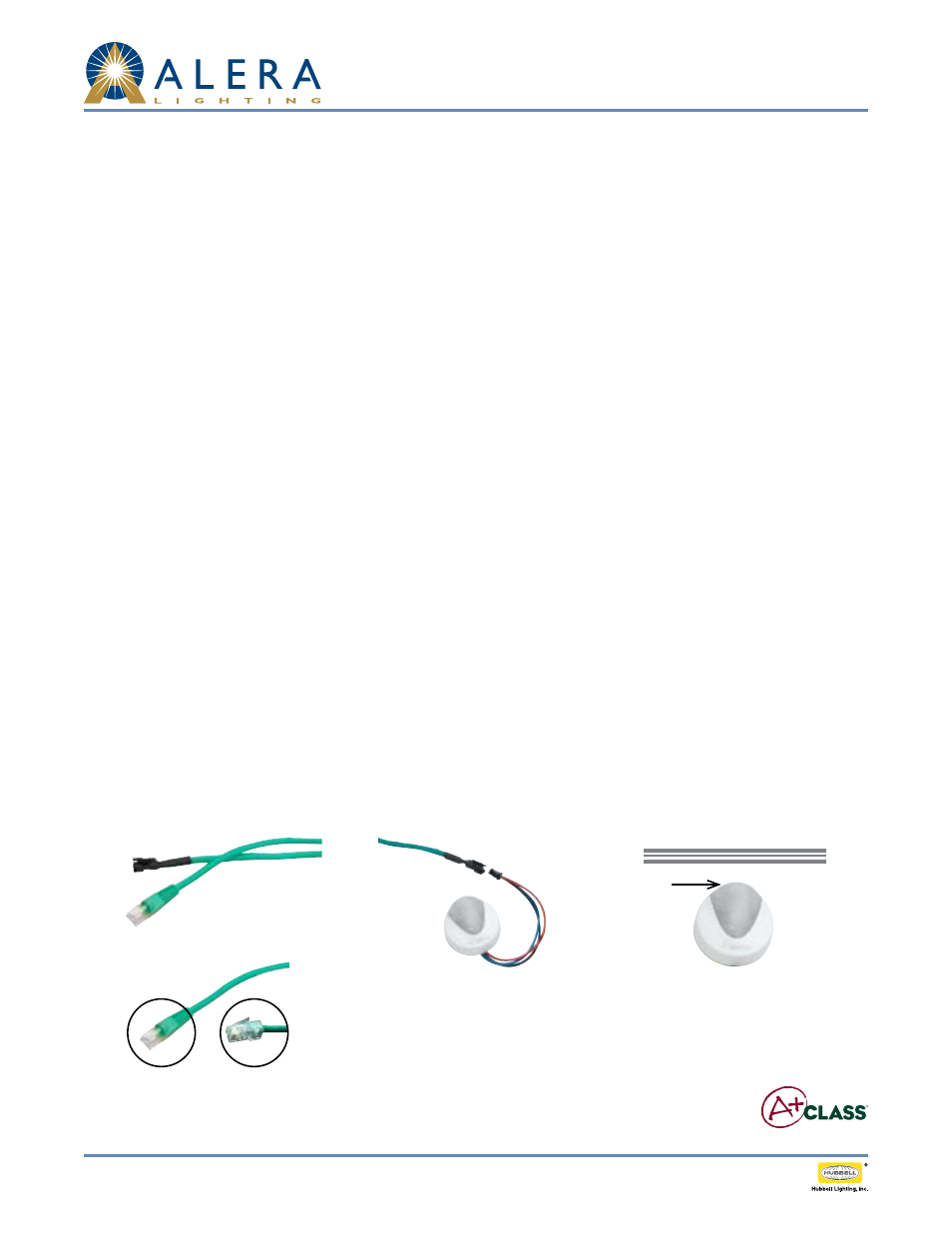

2. 50' Green low voltage cable
with CAT5 connection on one end and snap-in connection which mates to Daylight sensor on the other end (see Figures 1 and 1a).
3. Daylight Sensor with pre-installed low voltage Quick–To-Install™ (QTI) connector. The sensor’s QTI connector quickly mates to the
snap-in QTI connection on Green low voltage cable, also provided (see Figure 2).
4. A+CLASS™ Lighting fixtures with 0-10V dimming ballasts installed for the General lighting mode.
DAYLiGHt sensor pLAceMent
The Daylight sensor must be placed to see only daylight with no contribution from artificial light sources. The sensor typically mounts on the
ceiling between the window and the row of fixtures closest to the window. For skylight applications, the sensor mounts in the lightwell. The
sensor is aimed toward the daylight. A light meter is required for light level measurements at the task areas (see Figure 3).
Window
Fig. 2
Point
towards
daylight
Fig. 3
Fig. 1
(Cat cable end may look like A or B)
Fig. 1a
A B
