Page 1/2 Rev. 02/18/13 LED, rEcEssED / micro6 LED, micro6 G, SG TiD
micro6 grid, slot grid

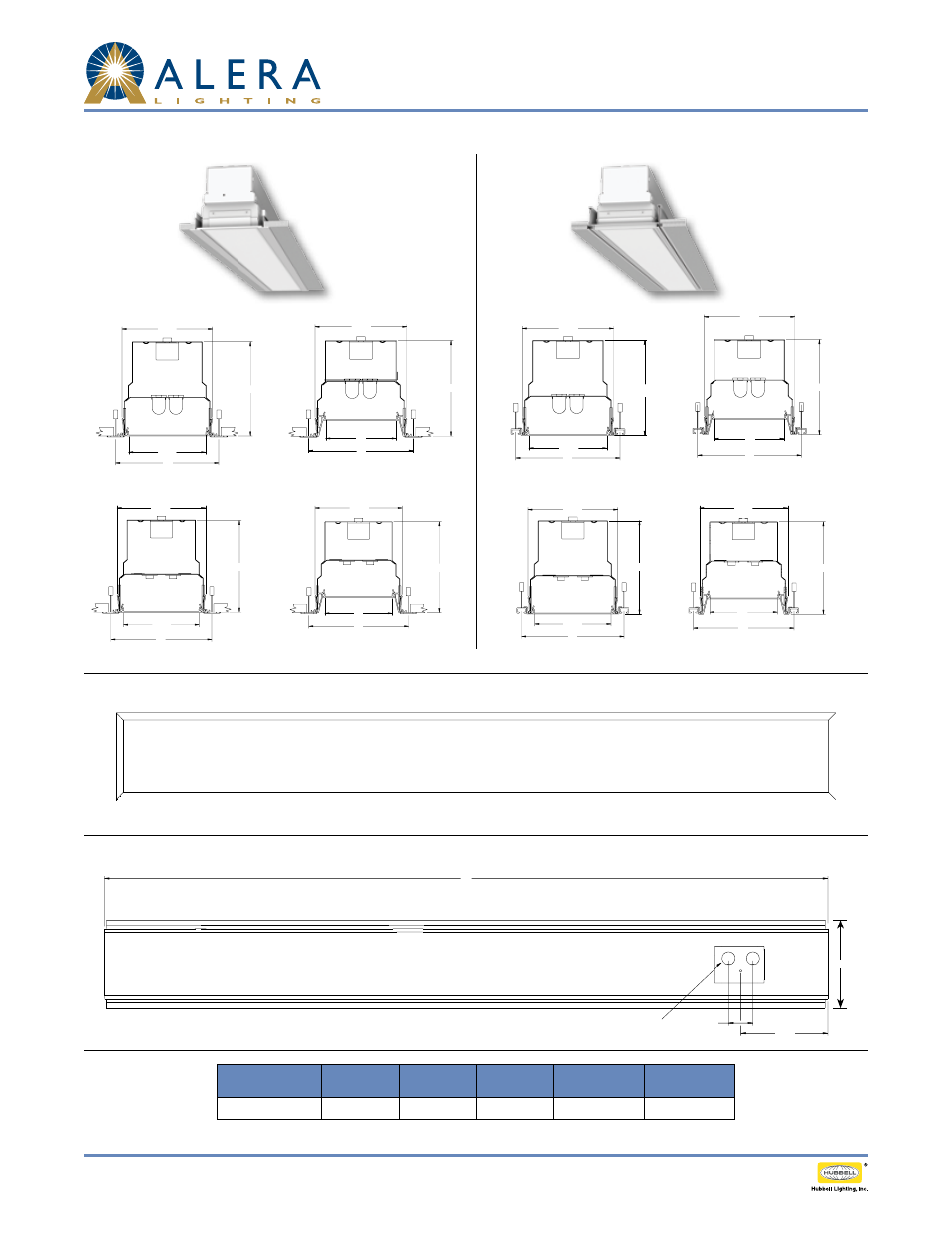

Technical installation Data
4' Single, Shown with Flush Lens
A
B
5¾"
1⅝" ½" K.O.
2X
Single Mounting (typical)
Data chart
Nominal Length Weight A B
Center-to-Center
T-Bar Length
Center-to-Center
T-Bar Width
48" 18 lbs. 47¾" 5¾" 48" 6"
15⁄16" G Regressed, 2T5
5¼"
5½"
6"
4"
15⁄16" G Flush, 2T5
15⁄16" G Regressed, LED
5¼"
5½"
6"
4"
5¼"
5½"
4½"
6"
15⁄16" G Flush, LED
5¼"
5½"
4½"
6"
SG Regressed, 2T5
5¼"
5½"
6"
4"
SG Flush, 2T5
5¼"
5½"
4½"
6"
SG Regressed, LED
5¼"
5½"
6"
4"
SG Flush, LED
5¼"
5½"
4½"
6"
15⁄16" Grid Flush Slot Grid Flush
croSS SectionS
BottoM View
