ABUS TVCC50511 - Manual (Page 26)

26

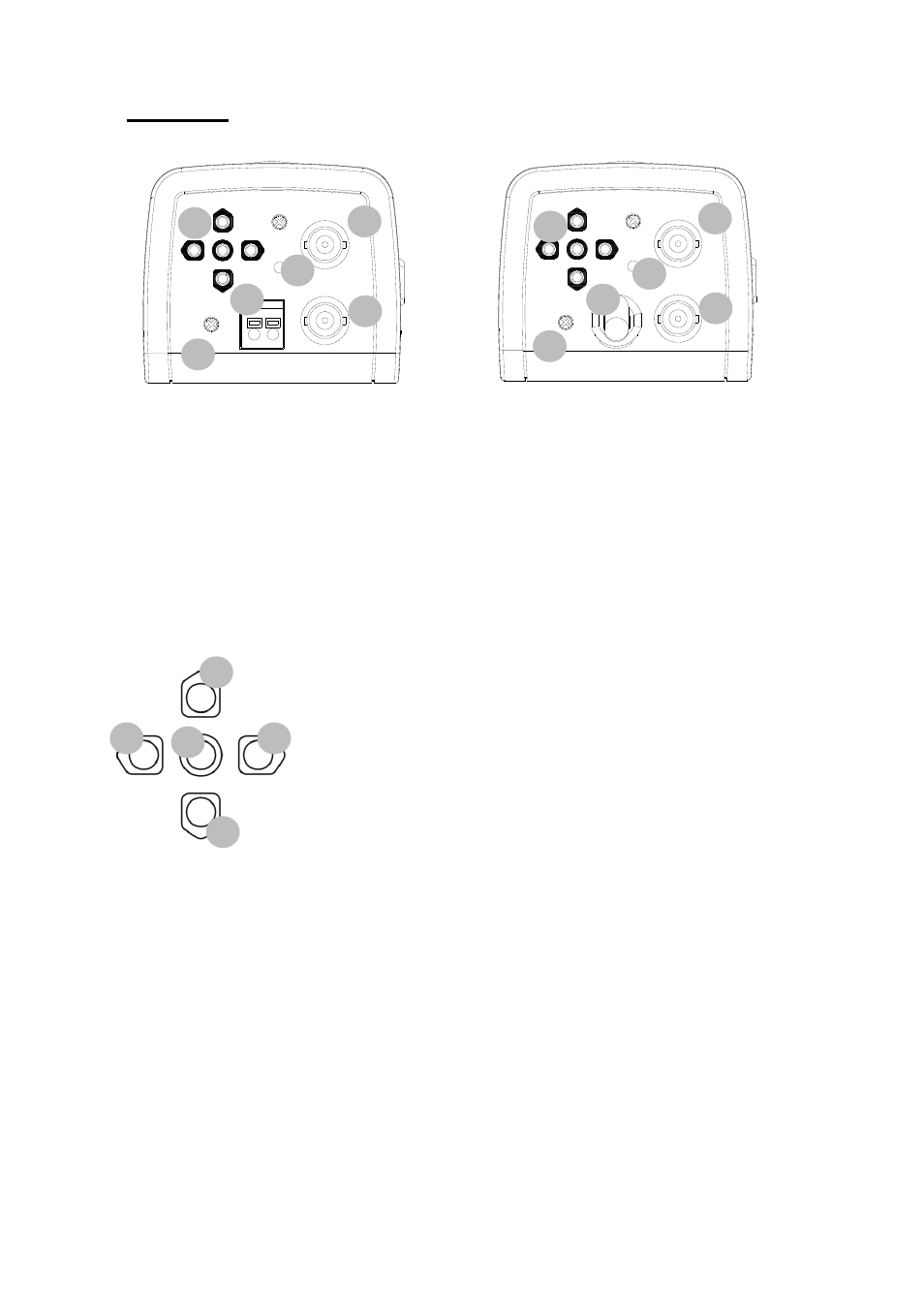

7. Rear view
12VDC Variante 110~240VAC Variante
(1)
OSD menu buttons
(2) Power Supply (12VDC/24VAC or 110~240VAC)
(3) Status LED (active if power is connected)
(4) BNC Video output (MONITOR)
(5) BNC Video output (VIDEO)
(6) Day/Night level adjustment
Buttons Function
(1) Enter : Enter menu / execute
(2) Up : Navigate upwards
(3) Down : Navigate downwards
(4) Left : Decrease value / select option
(5) Right : Increase value / select option
POWER
12VDC
24VAC
MONITOR
VIDEO
D/N LEVEL
DC LEVEL
POWER
MONITOR
VIDEO
D/N LEVEL
DC LEVEL
110~240VAC
2
3
4
1
5
6
1
4
3
2
5
5
2
1 4
6
3
