5. Description of device
5.1 Overview – article numbers
Article number TVCC50011 TVCC50511
Resolution 650 TVL 650 TVL
WDR 46 dB (max.) 46 dB (max.)
DNR 2D DNR 2D DNR
Day/Night
(removable IR cut-filter)
 
Operating voltage 12VDC/24VAC 110-240VAC
5.2 Unpacking
While you are unpacking the device please handle it with utmost care.
If you notice any damage of the original packaging, please check at first the device.
If the device shows damages, please contact your local dealer.
6. Mounting
6.1 Power supply
Before you start with the installation please make sure that the main voltage and the nominal
voltage of the camera comply together.

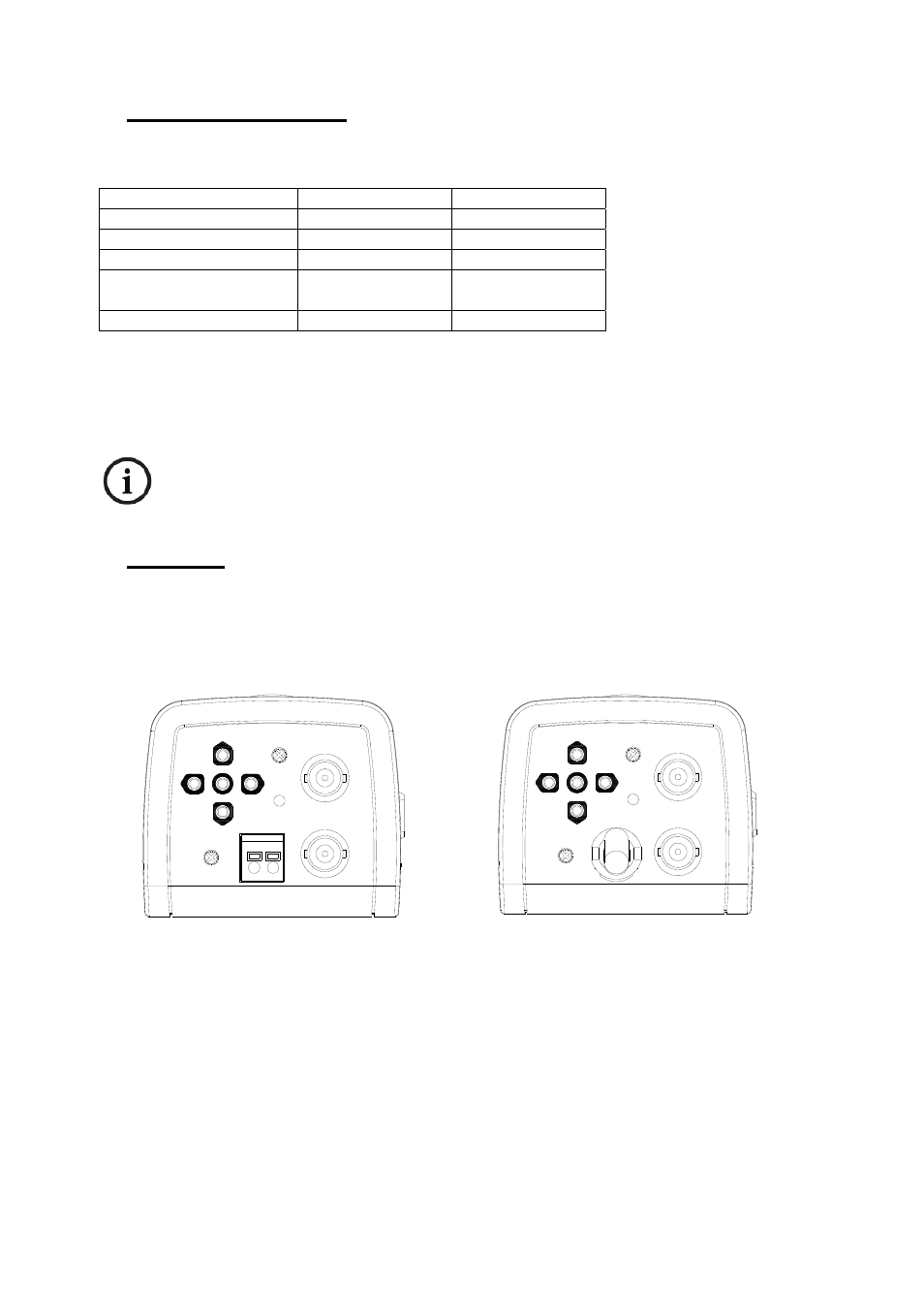

TVCC50011
TVCC50511
(1) TVCC50011 is run by a 12 VDC / 24 VAC power supply. The polarity can be ignored.
In order to connect a 12 VDC power supply (DC Connector 5.5mm x 2.1mm) to the camera
you have to first install the included connector cable. Therefore you need to press the pins
and insert the cable ends into the terminals.
(2)
TVCC50511 is run by a 110~240VAC power supply (preinstalled cable).
POWER
12VDC
24VAC
MONITOR
VIDEO
D/N LEVEL
DC LEVEL
POWER
MONITOR
VIDEO
D/N LEVEL
DC LEVEL
110~240VAC
