ABUS TVIP40000 - Manual (Page 67)

67
English

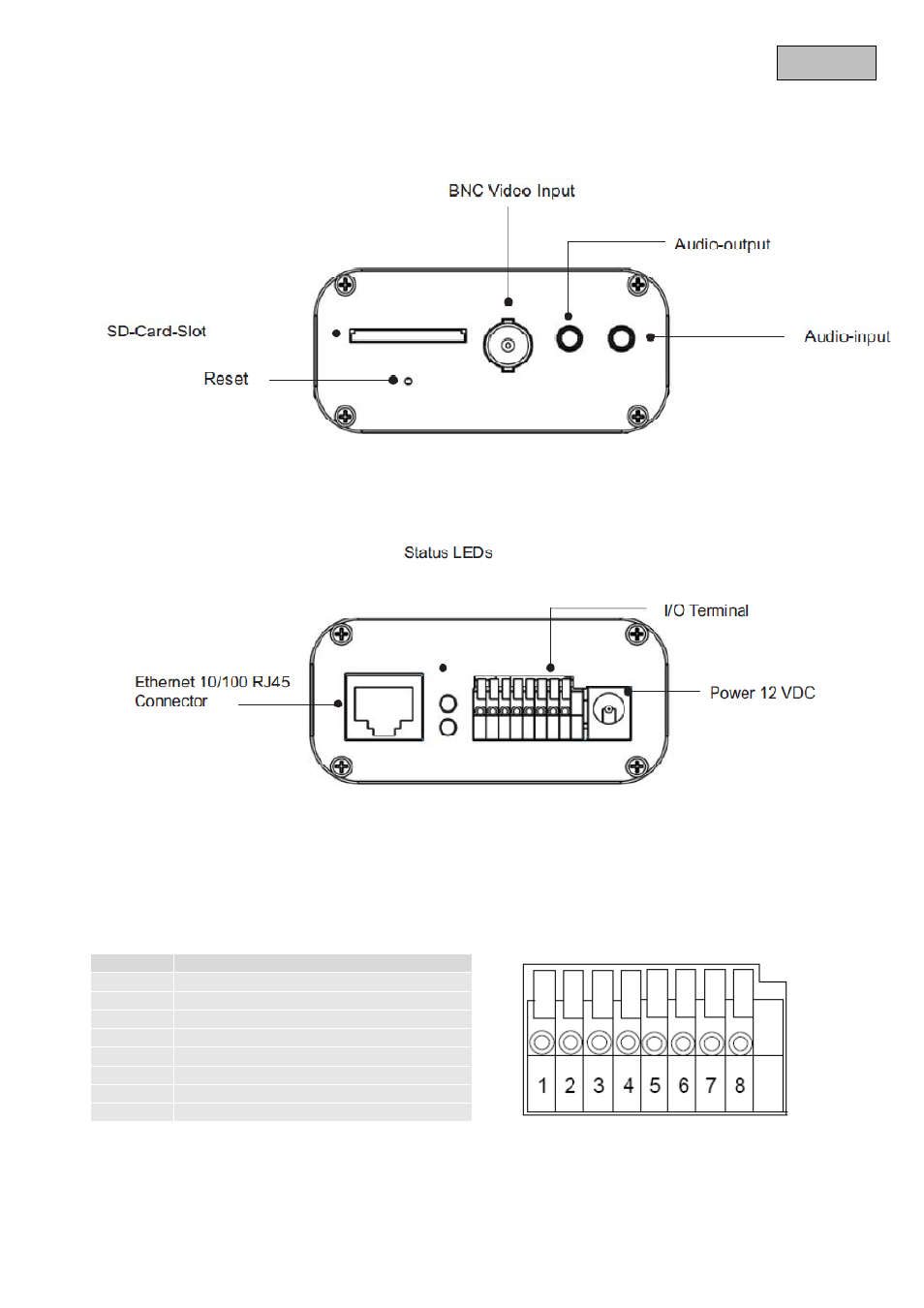

3. Video server description
3.1 Front view
3.2 Rear view
3.3 Alarm inputs and digital outputs
PIN Descritption
1 +12V Output
2 Digital output
3 Digital input
4 Ground
5 24V AC input
6 24V AC input
7 RS-485 +
8 RS-485 -
Microphone switch
internal/external
Power supply
