ABUS TV8761 User Manual
Page 4
4

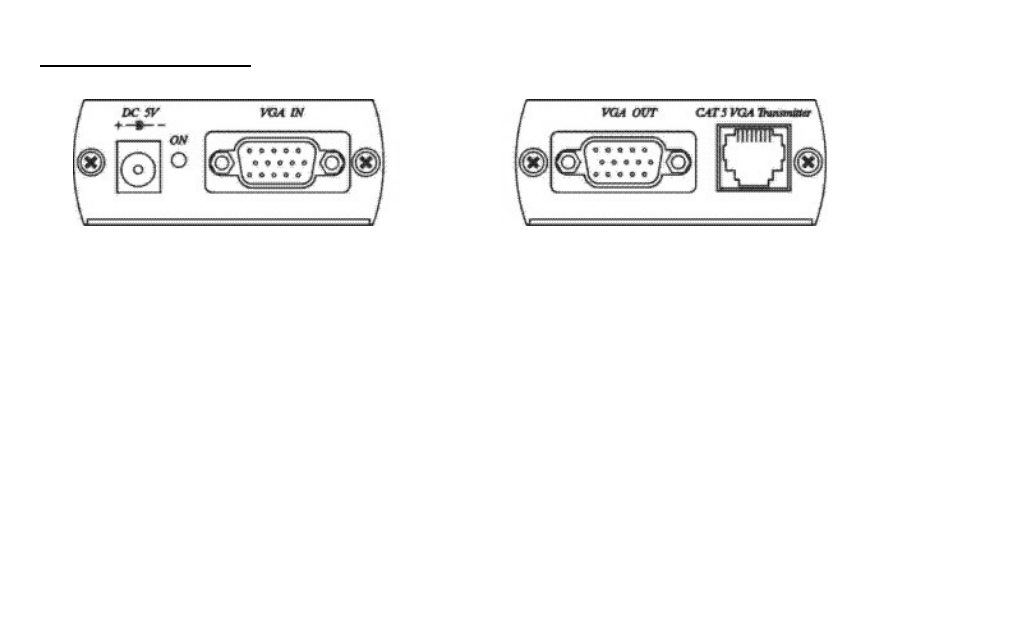

Sendermodul Frontseite
Sendermodul Rückseite
6. Anschlüsse Sendermodul
Anschlüsse am Sendermodul
DC 5V:
Anschluss des Netzadapters
VGA IN:
Eingang für die VGA-Video-Signale
VGA OUT
Ausgang für den Anschluss des lokalen Monitors
CAT5 VGA Transmitter:
Ausgang für den Anschluss des CAT5 UTP-Kabels
ON:
Aktivitätsanzeige
