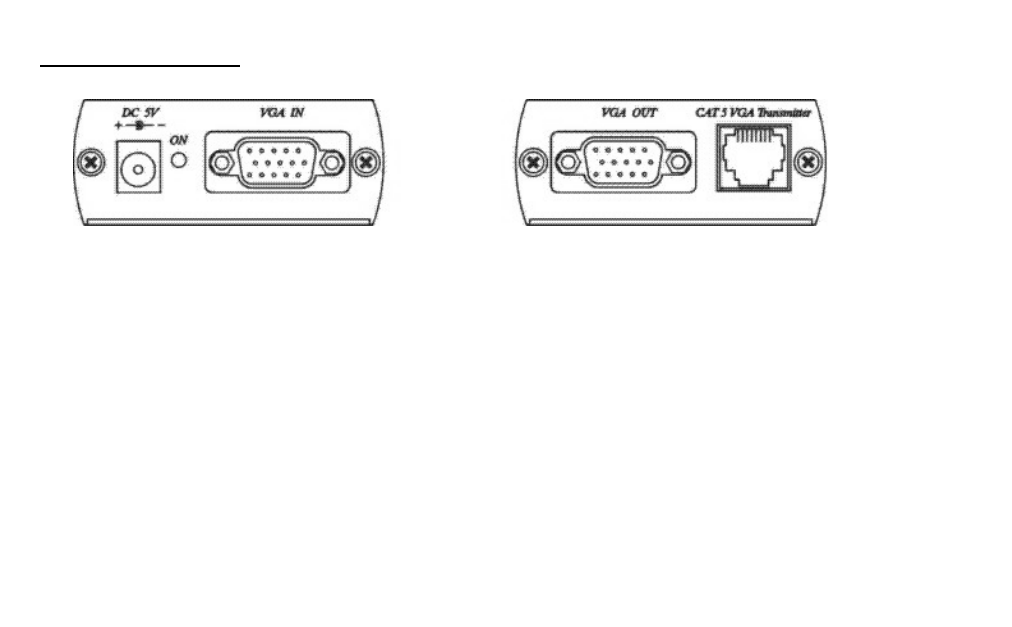

Sendemodul Forside
Sendemodul Bagside
6. Tilslutning Sendemodul
Tilslutning på Sendemodul
DC 5V:
Tilslutning til netadaptere
VGA IN:
Indgang for VGA-Video-Signal
VGA OUT
Udgang for tilslutning af lokale monitorer
CAT5 VGA Transmitter:
Udgang for tilslutning af CAT5 UTP-Kabeler
ON:
Aktivitetsvisning
