ABUS TV8761 User Manual
Page 11
11
6. Connections, transmitter

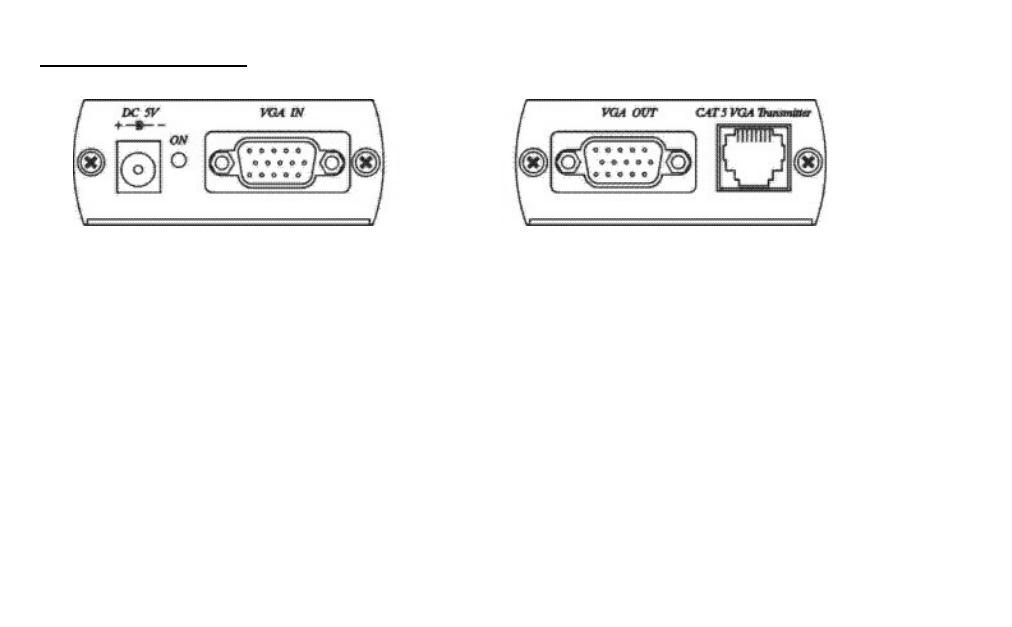

Transmitter module, front side
Transmitter module, rear side
Connections on transmitter module
5V DC:
Mains adapter connector
VGA IN:
Input for VGA video signals
VGA OUT
Output for connection of local monitor
CAT5 VGA transmitter:
Output for connection of CAT5 UTP cable
ON:
Activity
display
