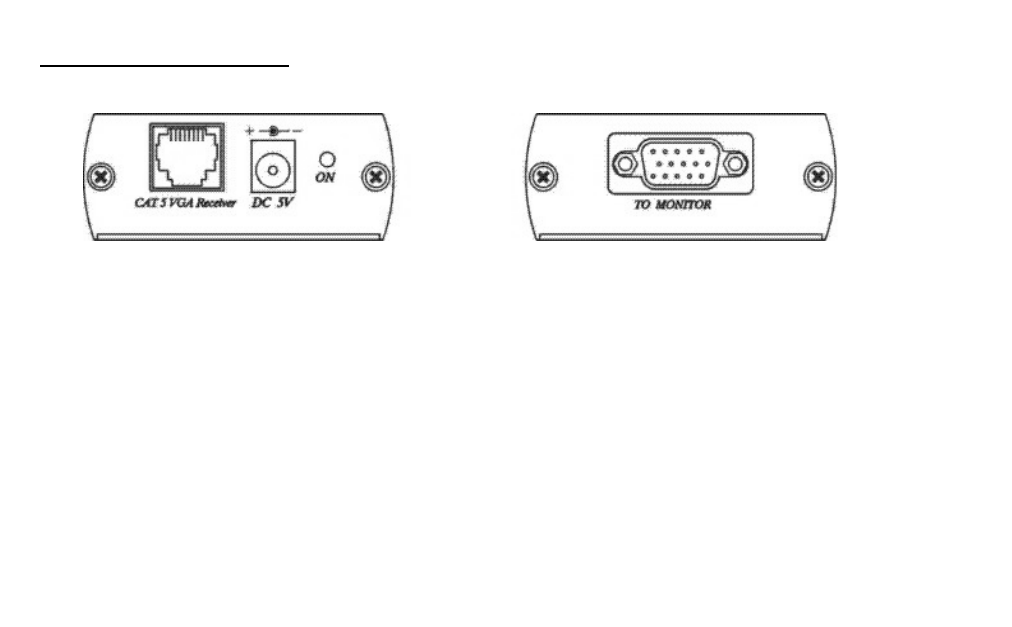

Modtagermodul Forside
Modtagermodul bagside
7. Tilslutning af modtagermodul
Tilslutninger på modtagermodul
CAT5 VGA Receiver:
Indgang for overførsel af de samlede videosignaler via CAT 5 UTP eller STP Kabel
DC 5V:
Udgangsbøsning for VGA-Signal
TO MONITOR:
Udgang for en opsat monitor
ON:
Aktivitetsvisning
