ABUS TV8761 User Manual
Page 25
25

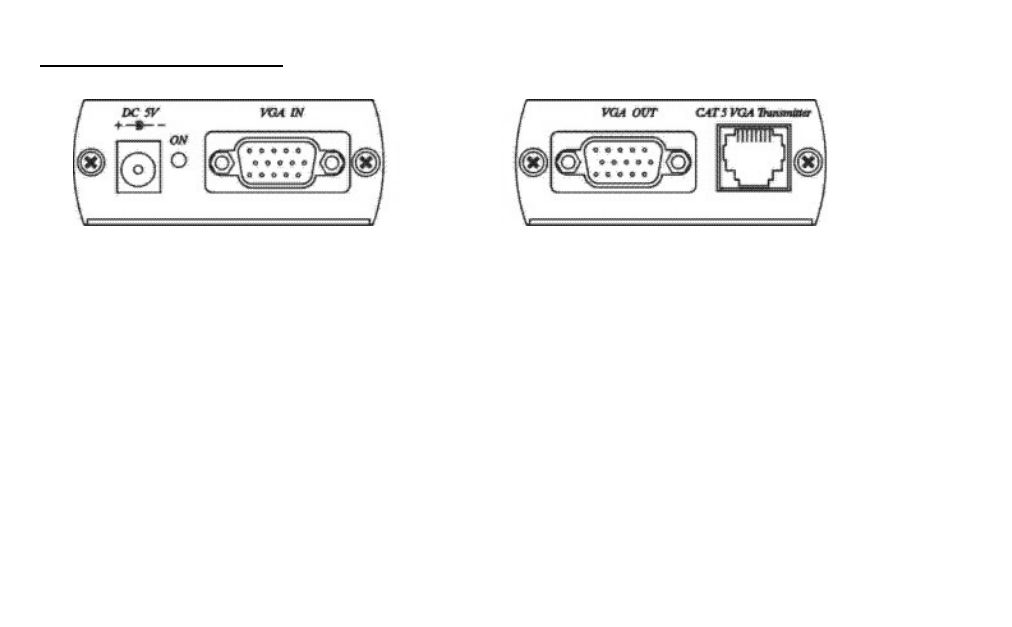

Zendermodule voorzijde
Zendermodule achterzijde
6. Aansluitingen zendermodule
Aansluitingen op de zendermodule
DC 5V:
Aansluiting van de netadapter
VGA IN:
Ingang voor de VGA-videosignalen
VGA OUT
Uitgang voor de aansluiting van de lokale monitor
CAT5 VGA Transmitter:
Uitgang voor de aansluiting van de CAT5 UTP-kabel
ON:
Activiteitsindicatie
