6. Raccordements du module émetteur

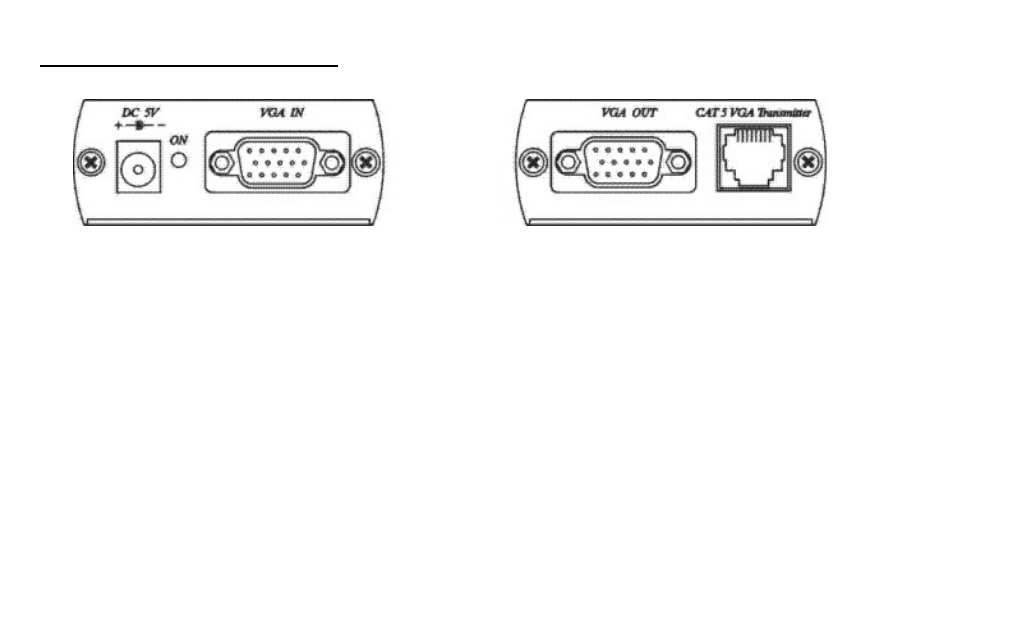

Face avant du module émetteur
Face arrière du module émetteur
Connecteurs du module émetteur
DC 5V :
raccordement de l’adaptateur secteur
VGA IN :
entrée du signal vidéo VGA
VGA OUT :
sortie de raccordement de l’écran local
Transmetteur VGA CAT5 : sortie de raccordement du câble UTP CAT5
ON
:
signalisation
d’activité
