4. Features

• Looped-through VGA output on transmitter module for local monitor and RJ45 output for connecting remote receiver module via CAT5 UTP

cable

• Built-in contrast and brightness control on receiver

• Maximum resolution: 1600 x 1200 @ 85 Hz

• Maximum transmission range: 300 meters

• Use of 4-paired CAT5 UTP cable

• Use of 2 interference filters for suppression of different signal runtimes

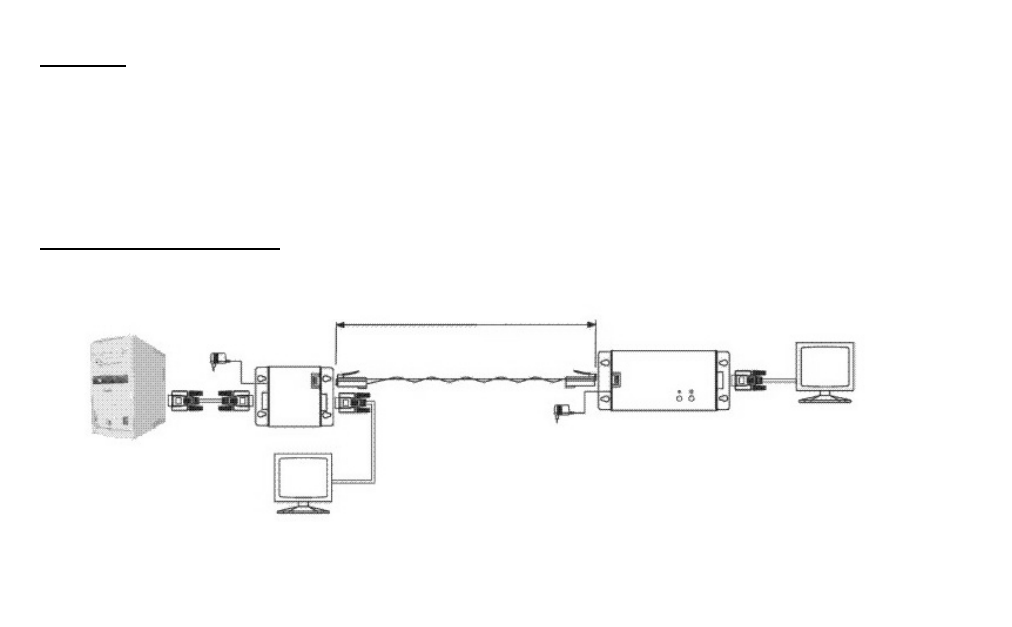

5. Connection diagram, TV87xx

300m (max)

Transmitter module

Receiver module

VGA Display
