ABUS TV8761 User Manual
Page 12
12
7. Connections, receiver

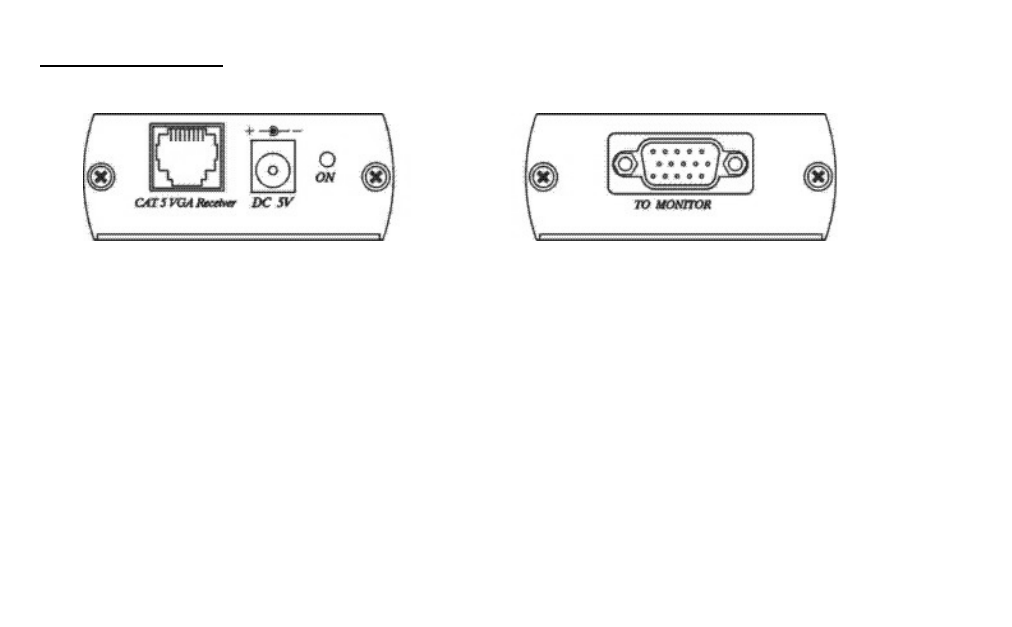

Receiver module, front side
Receiver module, rear side
Connections on receiver module
CAT5 VGA receiver:
Input for transmission of full video signal via a CAT 5 UTP or STP cable
5V DC:
Output socket for VGA signals
TO MONITOR:
Output for connection of remote monitor
ON:
Activity
display
