31

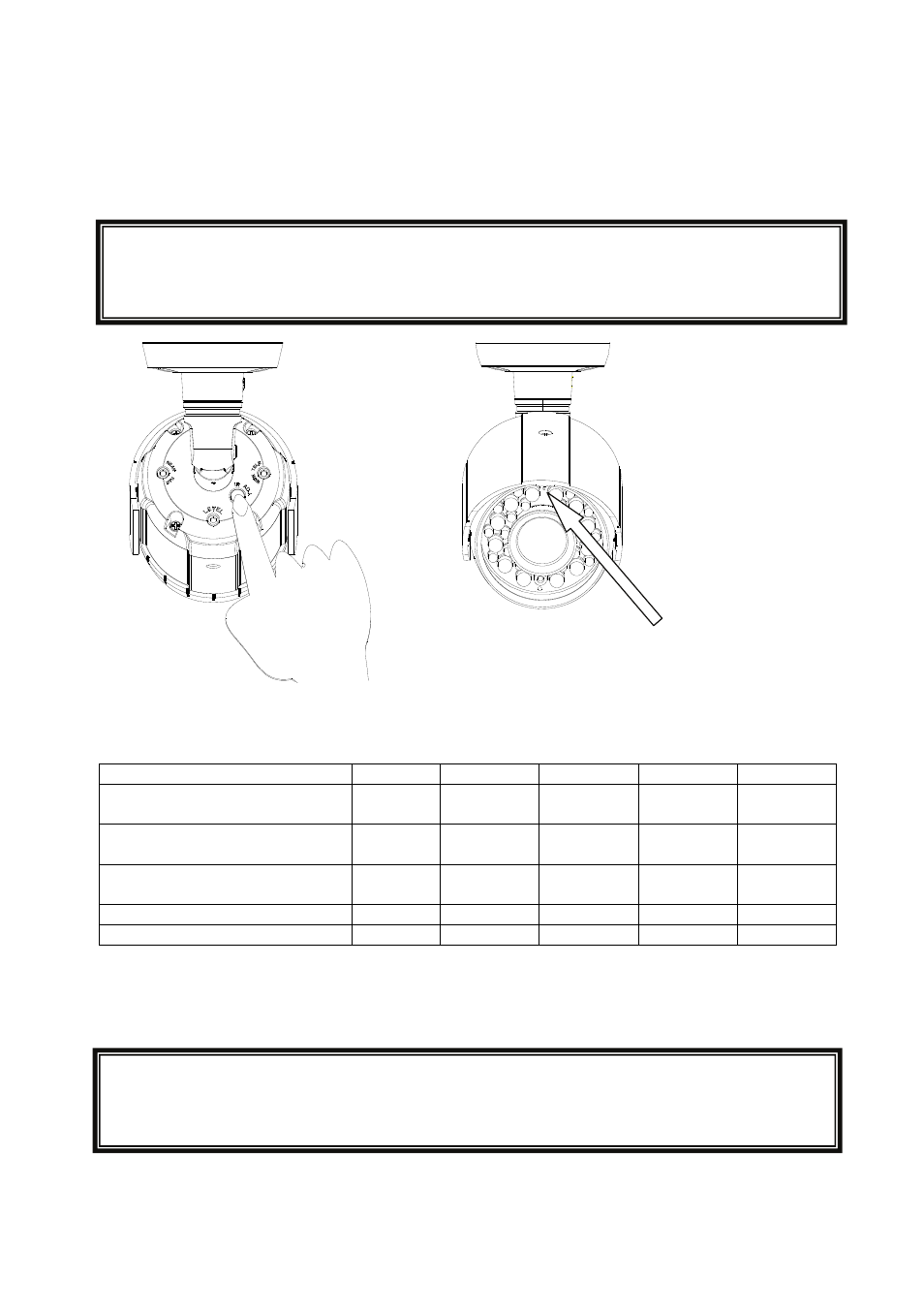

6.8 IR LED range / angle of radiation adjustment
By pressing several times the „IR ADJ.“ button located on the rear side of the camera you
can cycle through the different LED options. Before you adjust the IR settings you need to
adjust the zoom and focus.
IR indicator
Table: Range / Emission angle
Function / Mode 1 2 3 4 5
Horizontal emission angle
(degree) 55 55 30 30 -
Vertical emission angle
(degree) 55 55 30 30 -
LED intensity in % (55°/30°
type) (100/0) (46/14) (15/47) (0/100) (0/0)
IR range (m) 10 20 30 40 Off
LED indicator (flash) 1x 2x 3x 4x 5x
Regarding the confirgured focal length, the emission angle and IR range can be adjusted. This will
be done pushing the button „IR ADJ.“ Several times. The selected mode will be indicated by one
LED at the camera front.
The key lock function is activated approx. 15 minutes after last time pressing the
„IR ADJ.“ button.
In order to deactivate the key lock press and hold the „IR ADJ.“ for approx. 20 seconds.
The key lock function is activated approx. 15 minutes after last time pressing the
„IR ADJ.“ button.
In order to deactivate the key lock press and hold the „IR ADJ.“ for approx. 20 seconds.
