6. Mounting

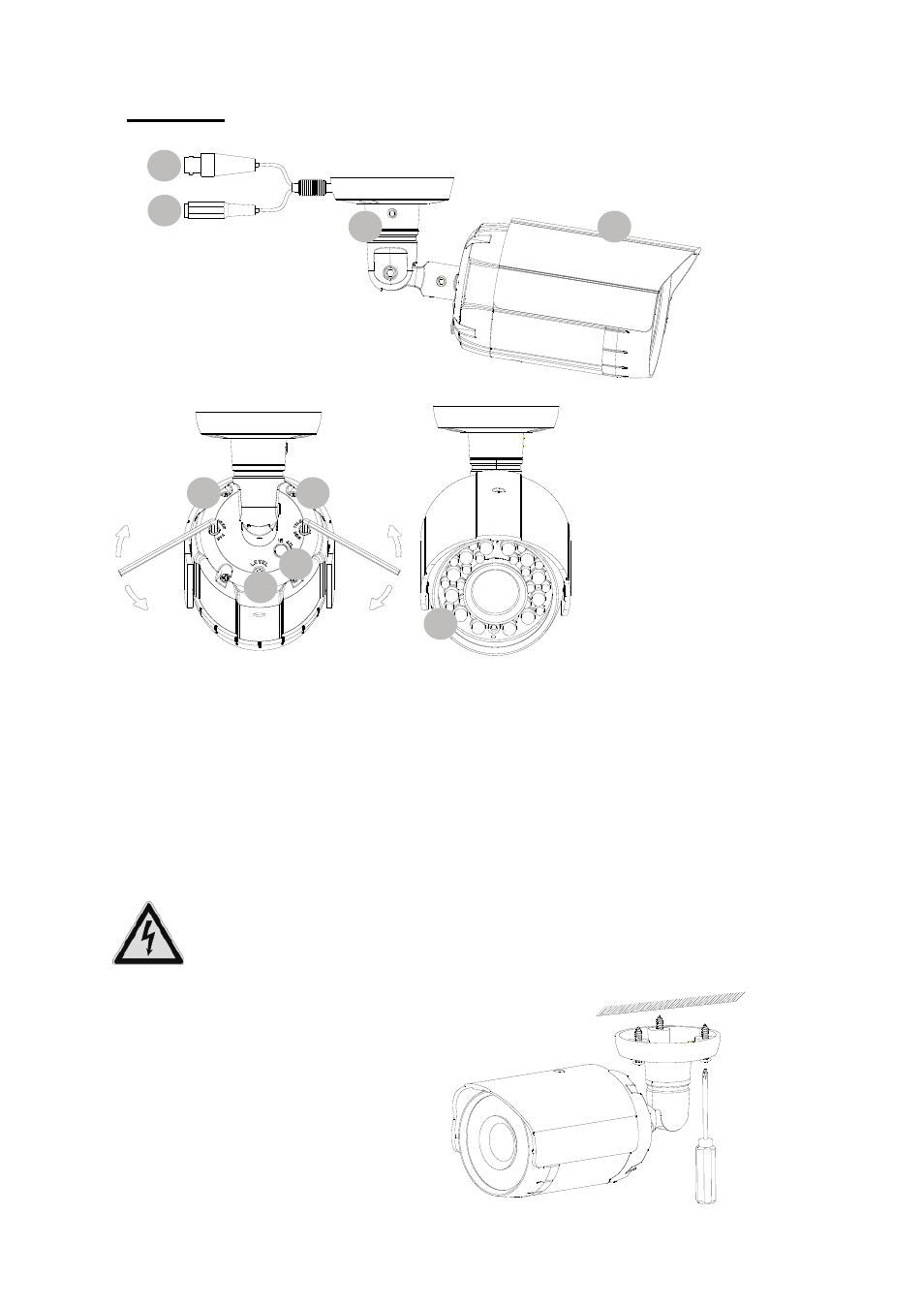

(1) Video signal connector (BNC)
(2) Power supply connector
(DC 5.5mm x 2.1mm)
(3) 3-axis camera bracket
(4) Sunshield
(5)
Focus adjustment (FOCUS ADJ.)
(6) Zoom adjustment (ZOOM ADJ.)
(7) IR range / angle of radiation adjustment
(IR ADJ.)
(8) Auto-Iris Level (LEVEL) (TVCC60000,
TVCC60010, TVCC60011)
(9) IR LEDs
6.1 Mounting of the camera
ATTENTION!
During the assembly the camera must be separated from the mains voltage.
In order to mount the camera place it on a
suitable surface and use the supplied pegs
and screws to fix it.
2
3 4
5 6
7
8
9
1
