ABUS SG1660 Optic_acoustic combination signal transmitter User Manual
Page 3
3

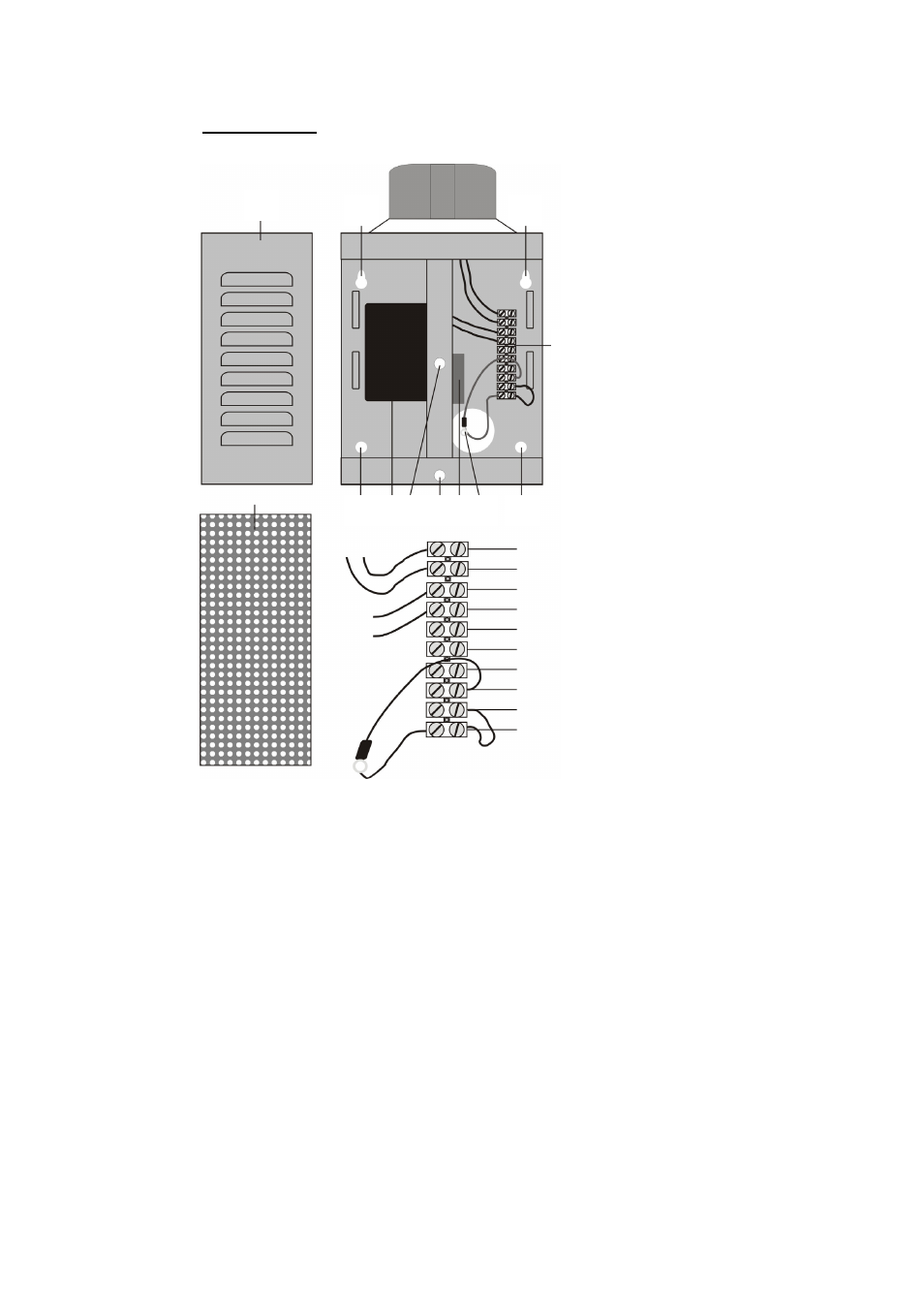

Beschreibung
1
2
2
2
2
3 4 5 6 7
8
9
Masse Anschluss Blitz
12V Anschluss Blitz (SG1660)
Masse Anschluss Sirene
12V Anschluss Sirene
Nicht belegt
Deckelkontakt NC
Deckelkontakt NC
Wandabrisskontakt (intern)
Wandabrisskontakt (intern)
Wandabrisskontakt (intern)
1 Gehäusedeckel
2 Montagelöcher
3 Sirene
4 Befestigung
Schutzhaube
5 Befestigung
Gehäusedeckel
6 Deckelkontakt
7 Befestigung
Wandabrisskontakt
8 Schraubklemmleiste
9 Schutzhaube
