Description – ABUS SG1660 Optic_acoustic combination signal transmitter User Manual
Page 11
11

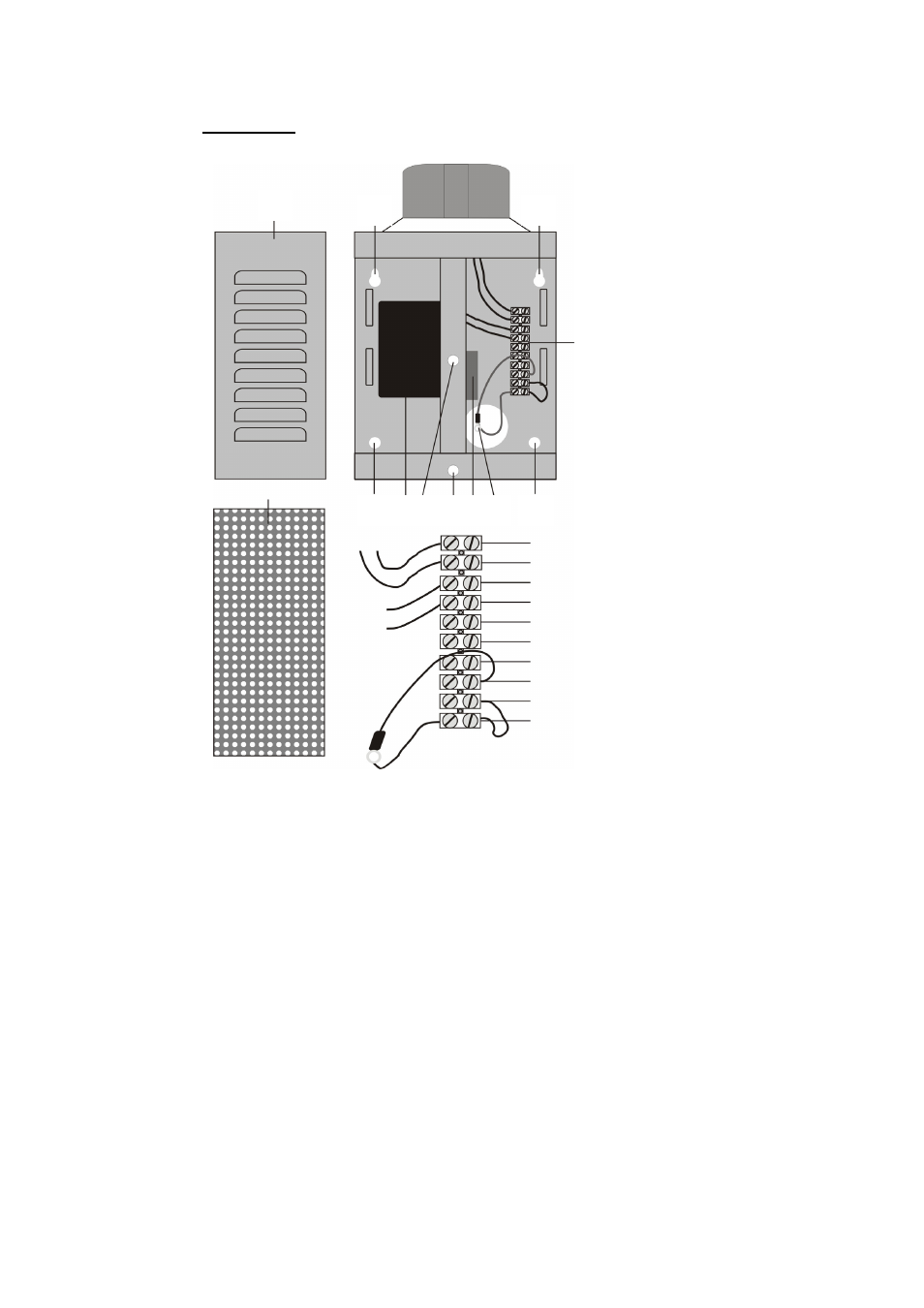

Description
1
2
2
2
2
3 4 5 6 7
8
9
Connexion neutre du flash (SG1660)
Connexion 12 V du flash (SG1660)
Connexion neutre de la sirène
Connexion
12 V de la sirène
Libre
Contact du couvercle NC
Contact du couvercle NC
Contact anti-arrachement (interne)
Contact anti-arrachement (interne)
Contact anti-arrachement (interne)
1 Couvercle du boîtier
2 Trous de montage
3 Sirène
4 Fixation du
capuchon
protecteur
5 Fixation du
couvercle du boîtier
6 Contact du
couvercle
7 Fixation du contact
anti-arrachement
8 Réglette de
borniers à vis
9 Capuchon de
protection
