X145 e-Display™
Quick Start Instructions
3
Port Style
Line Size
inches (mm)
*2 "
(50)
(100-49
Body)
2-1/2 "
(65)
3 "
(80)
4 "
(100)
6 "
(150)
8 "
(200)
10 "
(250)
12 "
(300)
14 "
(350)
16 "
(400)
18 "
(450)
20 "
(500)
24 "
(600)
Full Port
Valves
4mA = 0
(GPM - l/s)
20mA Range
(GPM)
260 375 575 1000 2250 3900 6000 8750 10500 14000
Consult factory
20mA Range
(l/s)
16.4 23.7 36.3 63.1 140 245 380 550 660 880
Reduced
Port Valves
4mA = 0
(GPM- l/s)
20mA Range
(GPM)
not available
675 1600 2900 4500 5650 7750 9350
20mA Range
(l/s)
42.5 100 180 285 355 490 590
* 2" X144 e-FlowMeter may be installed on new valves only
X145 e-Display™ Scaling Instructions
Scaling Instructions
Scaling the e-Display:
A signal source is not needed to scale the e-Display; simply
program the inputs and corresponding display values.
Determine display values using Table 1 above, for example:
6” Full Port Valve (4mA = 0, 20mA = 2250)
Follow menu trees (Figures 5) to navigate to desired settings.
• Press the Menu button to enter or exit the Programming
Mode at any time.
• Press the Right arrow button to move to the next digit or
decimal position during programming.
• Press the Up arrow to scroll through the menus, decimal
point, or to increment the value of a digit
• Press the Enter/Ack button to access a menu or to accept
a setting.
• Press and hold the Menu button for five seconds to access
the Advanced features of the e-Display.

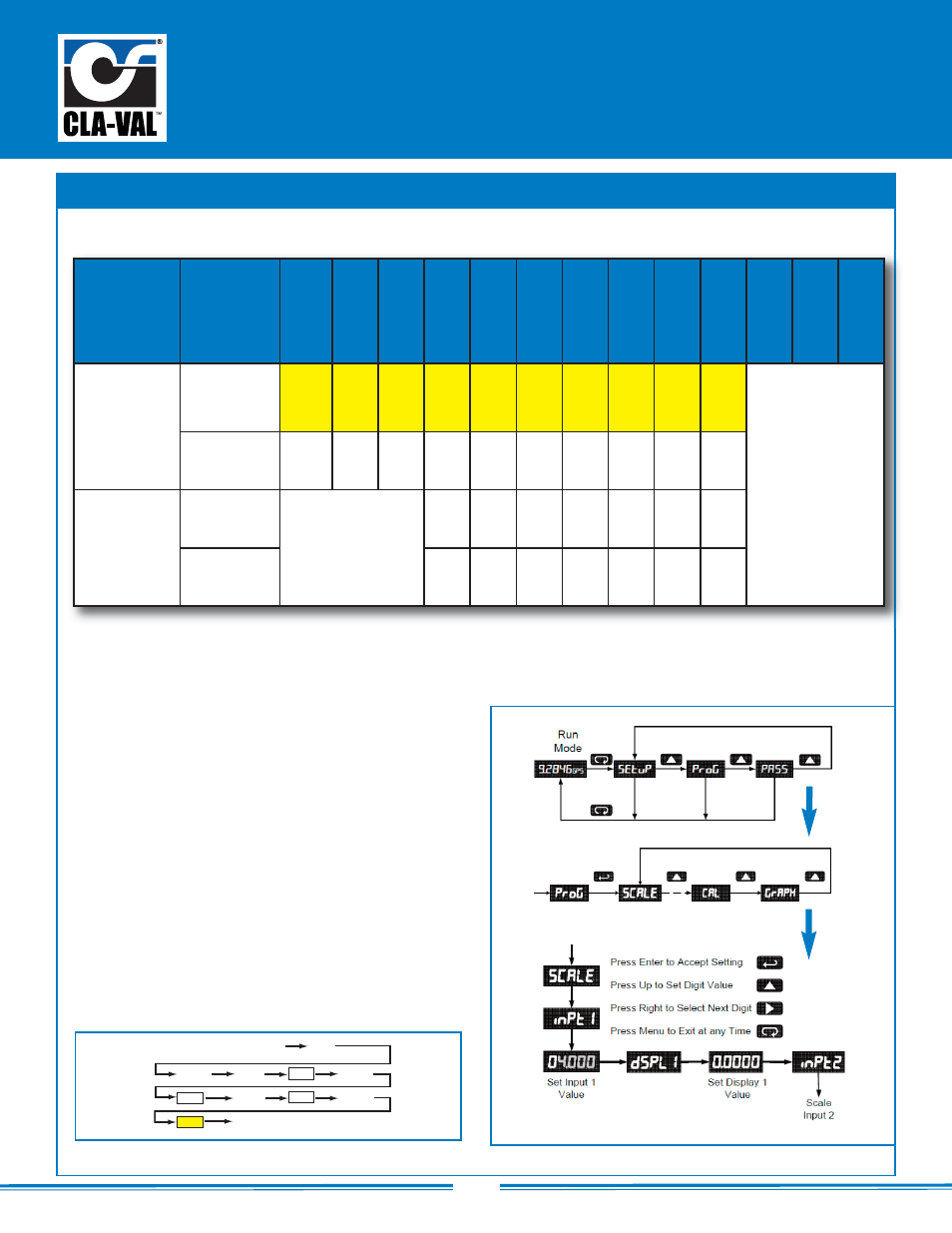

Figure 5: Menu Trees
Table 1: X144 e-FlowMeter™ 4-20mA Scaling: Factory Settings
SCALE inPT 1 dSPL 1
Normal Operating Mode ProG
(Run Mode)
0 20
4
from Table 1 - see shaded area above
inPT 2 dSPL 2
