Cla-Val X145 Quick Manual User Manual
X145 e-display™ quick start instructions, X145 e-display installation, Required steps for start-up

Required Steps for Start-Up
1) Attach display unit to wall using integral mounting tabs
(note: maximum distance from valve 30 feet)
2) Make electrical connections:
• AC Power
• X144 e-FlowMeter™
• Additional outputs (optional)
See page 2 for Wiring Instructions
3) Scale X145 e-Display™ according to scaling
instructions on page 3.
X145 e-Display Kit
The X145 e-Display is shipped ready for installation
with the X144 eFlowMeter™ using AC Power.
The kit contains the following items:
• Loop-powered 4-20mA e-Display
• Enclosure
• Power supply
X145 e-Display™
Quick Start Instructions
for technical assistance, call 800.942.6326
or log-on to www.cla-val.com

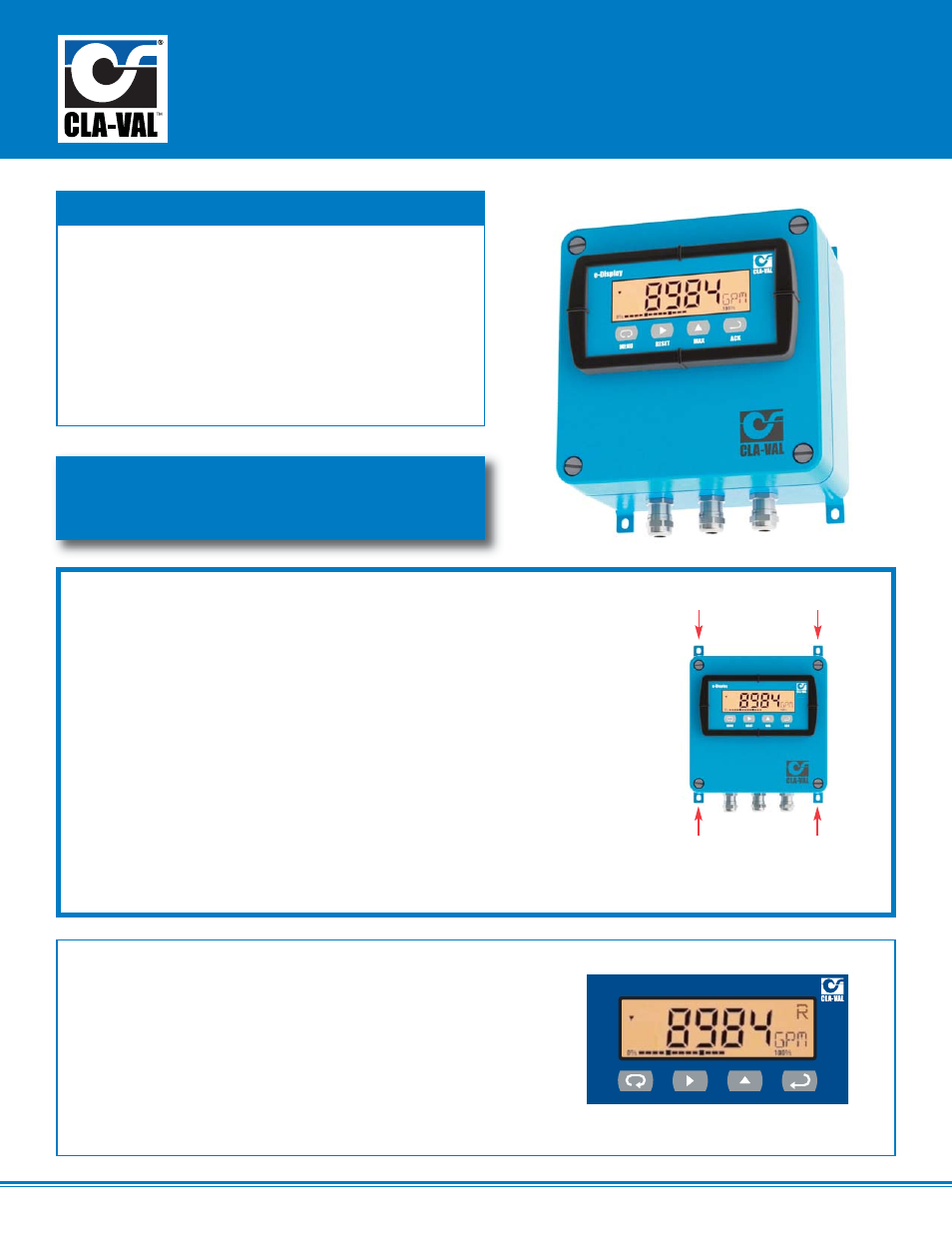

X145 e-Display Installation
Figure 1:
Integral Mounting Tabs
How to View Flow Rate and Total Flow
• Once powered, flow rate will automatically be displayed.
To toggle between flow rate and total flow, press the
ACK button.
• To reset totalizer, press the RESET button.
• For more information regarding totalizer, see provided
e-Display™ Instruction Manual.
ACK
MAX
RESET
MENU
e-Display™
Figure 2: e-Display Face
