Sierra Assembly
No.
Product Name
Qty
1
103290
Lid Assembly: 1 Lid, 2 Latch Strikes, 2 Bumpers, 4 Pop Rivets, 4 Washers
1 set
2
103227
454 Sq. In. Intercept Micro Filter
10/pk
3
102063
Micro Cloth Filter
1 ea.
4
100030
Dome Filter w/Foam Media
1 set
5
100343
Foam Filter Media for Dome Filter
1 ea.
101220
High Filtration Disk (optional)
2/pk
6
103330
Motor/Fan w/Crimps for Sierra
1 ea.
7
105697
Carbon Brush Set for Motor (Domel)
1 set
100424
Carbon Brush Set for Motor (Ametek) (116311-00)
1 set
106904
Carbon Brush Set for Motor (Ametek) (122157-00)
1 set
8
105605
Motor Plate Gasket
1 ea.
9
103270
Draw Latch Assembly: 1 Latch, 2 Rivets, 2 Washers
1 set
10 103393
Backplate System Complete (Includes: # 11, 14, 17, 18, 19)
1 set
11 100356
Shoulder Strap Assembly (includes: #12, 13, 16)
1 set
12 100358
Shoulder Strap Plastic Adjustment Buckle (Top)
1 ea.
13 100357
Shoulder Strap Plastic Adjustment Buckle (Bottom)
1 ea.
14 100359
Waist Belt (Includes: #15)
1 ea.
15 100375
Barrel Nut Connection Set for Backplate (Replacement)
1 set
16 103627
Sternum Strap Buckles (Latch and Keeper)
1 set
17 101737
Carry Handle w/Rivet and Washer Set
1 set
18 103282
Backplate (Blk) Connection Set: 4 Bolts w/Washers
1 set
19 106719
Waist Belt (Latch and Keeper)
1 ea.
20 102604
Schulte Cord Holder
1 ea.
21 102181
Motor Plate
1 ea.
22 105709
Motor Plate Screw Set: 4 Screws
1 set
23 103198
On/Off Switch
1 ea.
24 101760
Wire Splitter
1 ea.
25 103181
Power Cord (18" 14/3) Assembly Complete w/Strain Relief
1 ea.
26 103273
Powerhead Receptacle Assembly: 1 three-wire Receptacle, 2 Rivets, 2 Washers
1 set
27 102052
Exhaust Louver Cover
1 ea.
28 103274
Sound/Exhaust Assembly: 2 Nylock Nuts, 2 Hex Nuts w/Washers, 2 Screws,
1 Small Acoustic Insulator, 1 Exhaust Bracket, 2 Nylon Spacers
1 set
29 102510
Accoustic Insulator, Large
1 ea.
30 103275
Bottom Cap Screw Kit: 4 Screws
1 set
31 103182
Bottom Cap (Blk) w/Wheel Wells
1 ea.
32 103048
Static Dissipating Hose w/Cuffs
1 ea.
33 101928
Replacement Cuff w/Swivel Elbow (Blk) 1 ½"
1 ea.
34 100694
Replacement Swivel Cuff (Black) 1½"
1 ea.
35 103476
Thermal Protector
1 ea.
101678
50' Extension Cord (Not Shown)
1 ea.
105880
48" Electrified Hose, Handle, Swivel Cuff and 2 Wire Power Cord (not shown)
1 set
36 106895
Upgrade Wheel Kit for Conversion to Canister
1 set

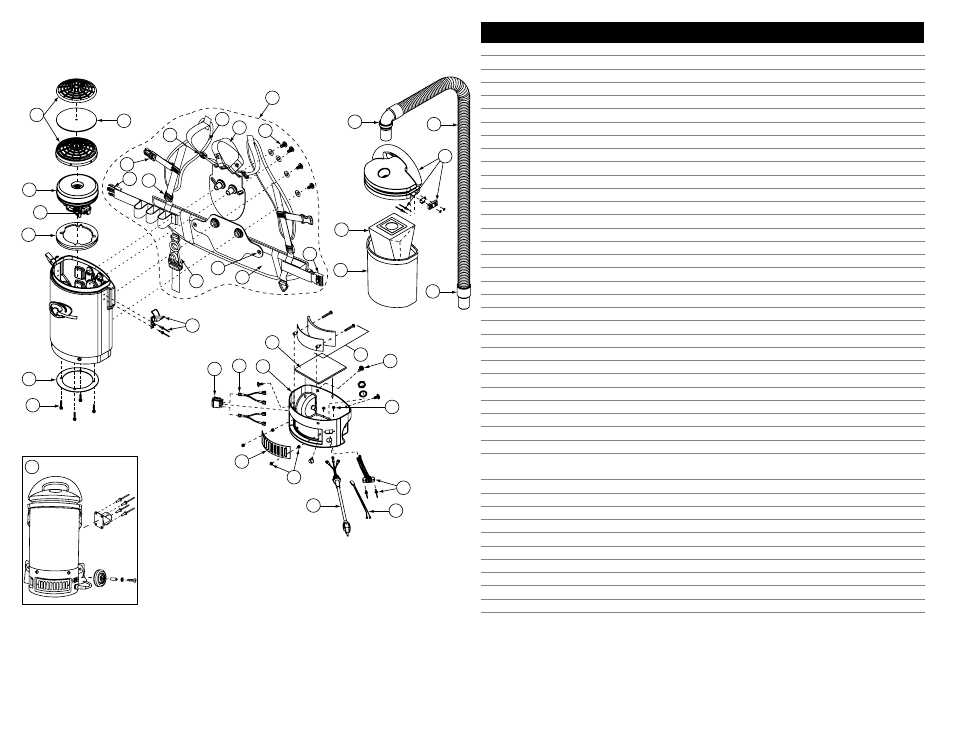

SIERRA PARTS LIST
