ProVac BP/AviationVac Assembly
No. Product Name Qty
1 104273 Twist Cap (Black) 1 ea.
2 100431 496 Sq. In. Intercept Micro Filter 10/pk
3 100564 Micro Cloth Filter 1 ea.
4 102604 Shulte Cord Holder 1 ea.
5 101737 Carry Handle w/Rivet and Washer Set 1 set
6 100356 Shoulder Strap Assembly (includes: #5a, 5b, 5c) 1 set
6a 100358 Shoulder Strap Plastic Adjustment Buckle (Top) 1 ea.
6b 100357 Shoulder Strap Plastic Adjustment Buckle (Bottom) 1 ea.
6c 103627 Sternum Strap Buckles (Latch and Keeper) 1 set
7 105046 Backplate (includes: #7) 1 ea.
8 100375 Barrel Nut Connection Set for Backplate (Replacement) 1 set
9 100716 Backplate (Black) Connection Set: 4 Screws w/Washers 1 set
10 106719 Waist Belt Keeper and Latch 1 ea.
11 100359 Waist Belt (includes: #9) 1 ea.
100354 Strap Assembly Complete (includes: #5, 10) 1 set
103166 Backplate (Black) System Complete (includes: #4, 5, 6, 8, 10) 1 set
12 100641 Power Cord (18" 14/3) Assembly 1 set
13 101610 Switch Cord Assembly (includes: #14, 15) 1 set
101714 Switch Cord w/Crimps 1 ea.
101715 Switch Cord w/Crimps (AviationVac) 1 ea.
101717 Switch Cord Assembly Complete w/Switch and Box (AviationVac) 1 ea.
14 101472 Switch Box w/Velcro and New Lamb Switch 1 set
106287 Switch Box w/Velcro and Screws 1 ea.
15 106066 On/Off Switch (must use with #106287) 1 ea.
16 105800 Sound Muffler 1 ea.
17 105044 Motor Shroud Diffuser w/Screw Set: 2 Screws 1 set
18 100335 Motor Compression Ring w/Screws 1 set
100378 Compression Ring Screw Set: 4 Screws 1 set
19 100014 Tetraseal 1 ea.
20 105697 Carbon Brush Set (Domel Motor) 1 set
100424 Carbon Brush Set (Ametek Motor) (116311-00) 1 set
106904 Carbon Brush Set (Ametek Motor) (122157-00) 1 set
100173 Carbon Brush Set for 400 Hz Motor (AviationVac) 1 set
21 100422 Motor/Fan (120 V) w/Crimps 1 ea.
100171 Motor/Fan w/Rectifier and Crimps (400 Hz) 1 ea.
100174 Motor Rectifier 1 ea.
100379 Motor Ground and Wire Clamp Set w/Screws 1 set
100380 Motor Crimp Set: 4 Female, 4 Male, Ground Crimp Connector 1 set
22 100586 Bottom Bumper 1 ea.
23 100368 Motor Mounting System Set: 3 Well Nuts, 3 Bolts, 3 Washers, 3 Covers 1 set
24 100030 Dome Filter w/Foam Media 1 ea.
25 100343 Foam Filter Media for Dome Filter 1 ea.
101220 High Filtration Disk (optional) 2/pk
26 100505 Static-Dissipating Hose w/Cuffs (Black) 1½" 1 ea.
103237 Static-Dissipating Hose w/Cuffs (Black) 1¼" (AviationVac) 1 ea.
103048 Static-Dissipating Hose (Black) 1½" (AviationVac) 1 ea.
27 100694 Replacement Swivel Cuff (Black) 1½" 1 ea.
102715 Replacement Double Swivel Elbow Cuff (Black) 1¼" (AviationVac) 1 ea.
103279 Replacement Swivel Cuff (Black) 1¼" (AviationVac) 1 ea.
28 103476 Thermal Protector 1 ea.
101678 50' Extension Cord (Not Shown) 1 ea.

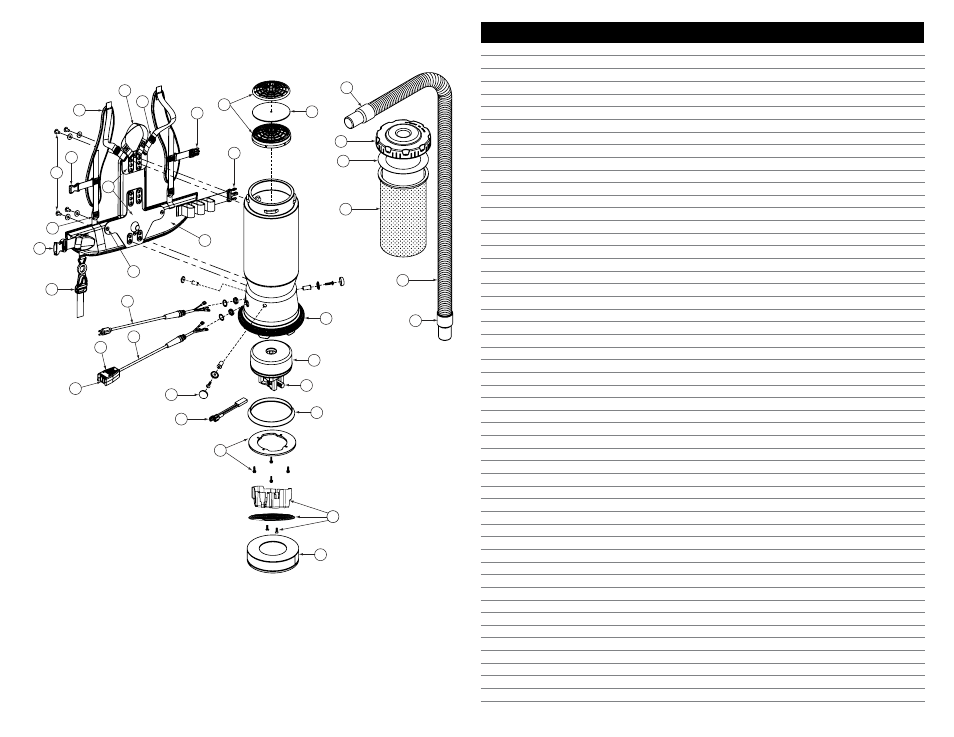

PROVAC BP/AVIATIONVAC PARTS LIST
