Infinity Drain S-AG 38 Install Instructions - Manual (Page 2)

2
S-AG 38 Series
A 3836 36″ Stainless Steel Grate
A 3848 48″ Stainless Steel Grate
A 3860 60″ Stainless Steel Grate
G 3836 36″ PVC Channel
G 3848 48″ PVC Channel
G 3860 60″ PVC Channel
G 3896 96″ PVC Channel
E 38
PVC Stop End
S 32 PVC Outlet Section
S 50 PVC Threaded Outlet
S-DG 65 Series
D 6548 48″ Stainless Steel Grate
D 6560 60″ Stainless Steel Grate
G 6548 48″ PVC Channel
G 6560 60″ PVC Channel
G 6596 96″ PVC Channel
E 65
PVC Stop End
S 50 PVC Threaded Outlet
S-AG 100 Series
A 10048 48″ Stainless Steel Grate
G 10048 48″ PVC Channel
G 10096 96″ PVC Channel
E 100
PVC Stop End
S 50 PVC Threaded Outlet
S-DG 38 Series
D 3848 48″ Stainless Steel Grate
D 3860 60″ Stainless Steel Grate
G 3848 48″ PVC Channel
G 3860 60″ PVC Channel
G 3896 96″ PVC Channel
E 38
PVC Stop End
S 32 PVC Outlet Section
S 50 PVC Threaded Outlet
S-AG 65 Series
A 6536 36″ Stainless Steel Grate
A 6548 48″ Stainless Steel Grate
A 6560 60″ Stainless Steel Grate
G 6536 36″ PVC Channel
G 6548 48″ PVC Channel
G 6560 60″ PVC Channel
G 6596 96″ PVC Channel
E 65
PVC Stop End
S 50 PVC Threaded Outlet
S-TIF 65 Series
TA 6540 40″ Stainless Steel Grate
TA 6548 48″ Stainless Steel Grate
TA 6560 60″ Stainless Steel Grate
G 6540 40″ PVC Channel
G 6548 48″ PVC Channel
G 6560 60″ PVC Channel
G 6580 80″ PVC Channel
G 6596 96″ PVC Channel
E 65
PVC Stop End
S 50 PVC Threaded Nipple
TIF PL TIF Plates
TKEY
Lift Out Key

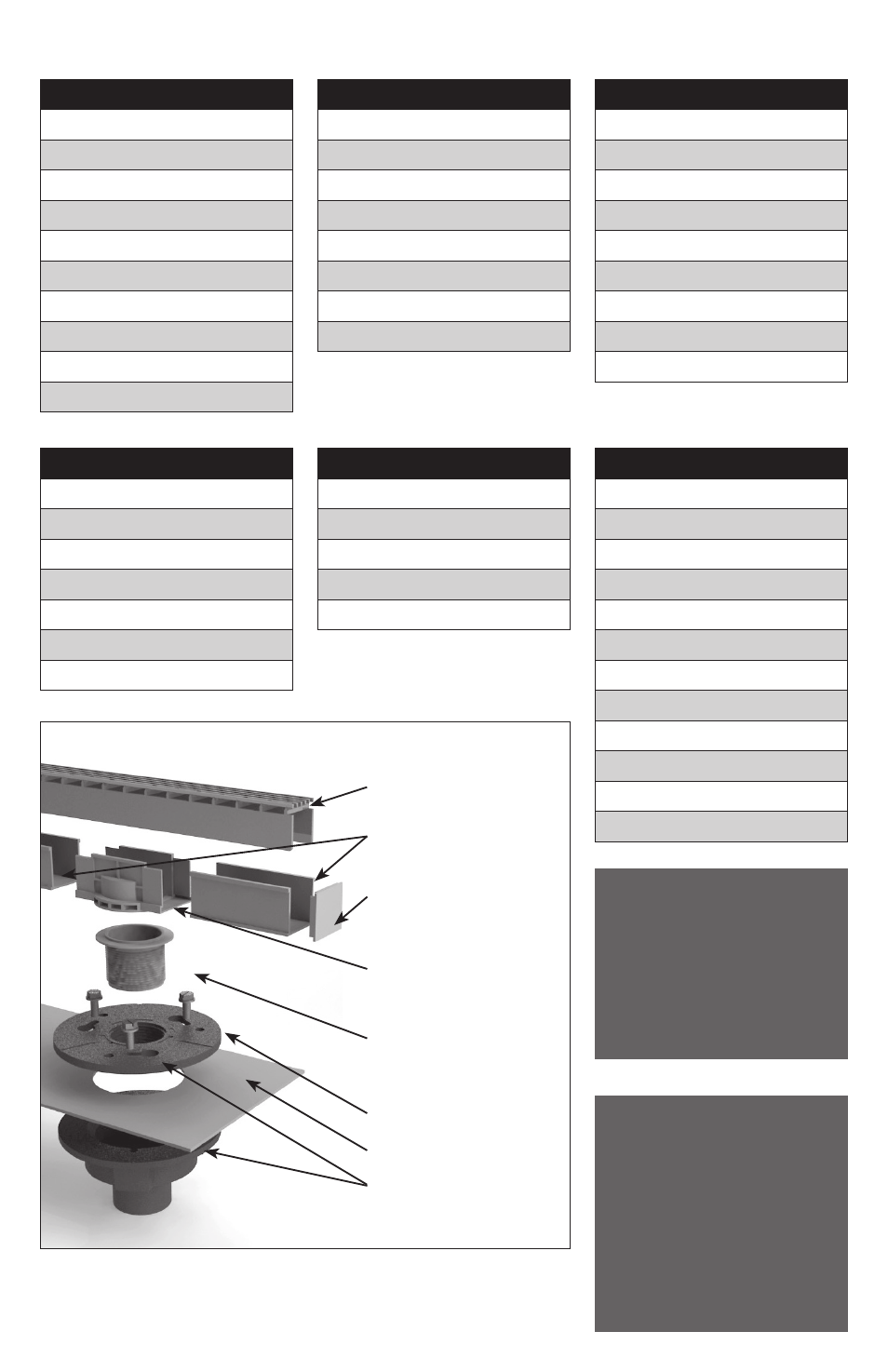

Series Components:
Note: Installer must verify
all rough-in dimensions
prior to installation and
consult local and national
codes. Conformity and com-
pliance to local and national
codes are the responsibility
of the installer.
Tenga en cuenta: Instala-
dor debe comprobar todas
las dimensiones en las par-
tes previa a la instalación
y consultar localmente y
nacionalmente los códigos.
La conformidad y el cum-
plimiento de códigos local
y nacional es responsabili-
dad del instalador.
*Not provided by Infinity Drain kits
KEY
(A) Top Grate –
A38/D38/A65/TA65/A100
(B) PVC Channel –
G38/G65/G100
(C) Stop End – E38/E65/E100
(D) Outlet Section – S32
(Not Applicable for
AG65/DG65/TIF65/AG100)
(E) Threaded Nipple - S50
(F65 – non-threaded
nipple, for no-hub
installation)
Weep Holes
Waterproofing Membrane
(F) 2” Throat Clamp Down
Drain Body*
(Two Pieces)
(F1)
(F2)
