Installation, cont’d
USB HUB4 Series • Installation 2-12
PRELIMINAR
Y
Rack mounting procedure
To mount the USB HUB4 directly to a rack or to a rack shelf,
1. Connect all cables to the rear panel of the HUB4.
2. Insert the HUB4 in one of the spaces in a rack space frame and attach it to the
frame using the provided hex screws and nuts.
3. Attach any desired additional AAP or MAAP devices to the rack space frame.
4. Attach the rack space frame to the rack shelf, using the provided screws.
5. If using a rack shelf, mount the shelf, with the HUB4 attached, to the rack.
#4-40 Nut with
Captive Washer AAP 301
USB HUB4 AAP
AAP 301
Architectural Frame
#10-32 Screw/
Nylon Captive
Cap Washer
USB H UB4 A AP AC TIVITY

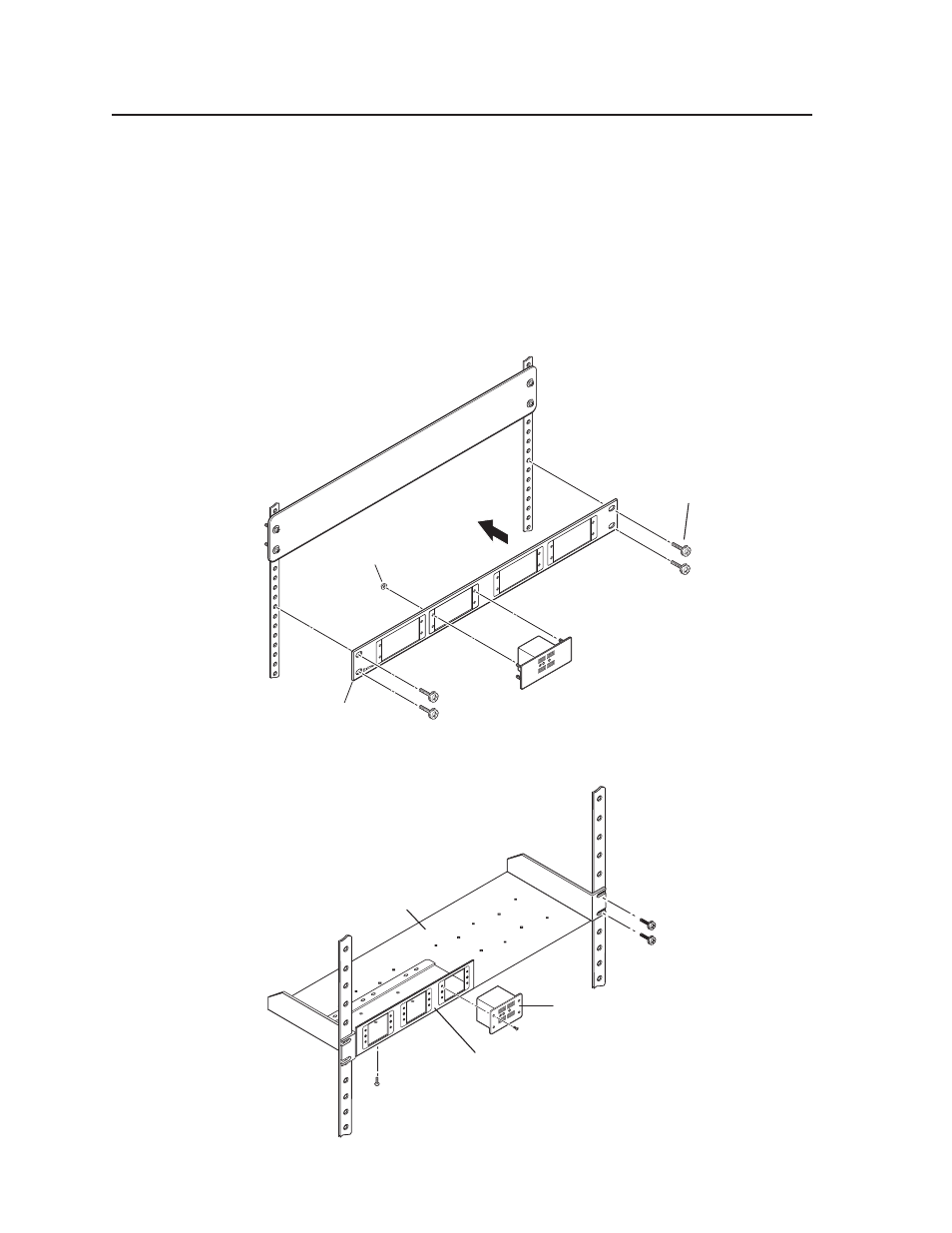

Mounting a USB HUB4 AAP directly to a rack using an AAP 301 frame
(4) #4 - 40 Screws
(2) #6 Screws
RSB 126
Rack Mount Shelf
USB HUB4 MAAP
AC TIVITY
CPM130
A/V Connector Frame
USB HUB4 MAAP
Mounting a USB HUB4 MAAP on a rack shelf using a CPM133 frame
