Installation, cont’d
USB HUB4 Series • Installation 2-10
PRELIMINAR
Y
AAP 102 Mounting Frame
AAP 102
Extron
USB HUB4 AAP
USB HUB4 AAP
ACT IVITY

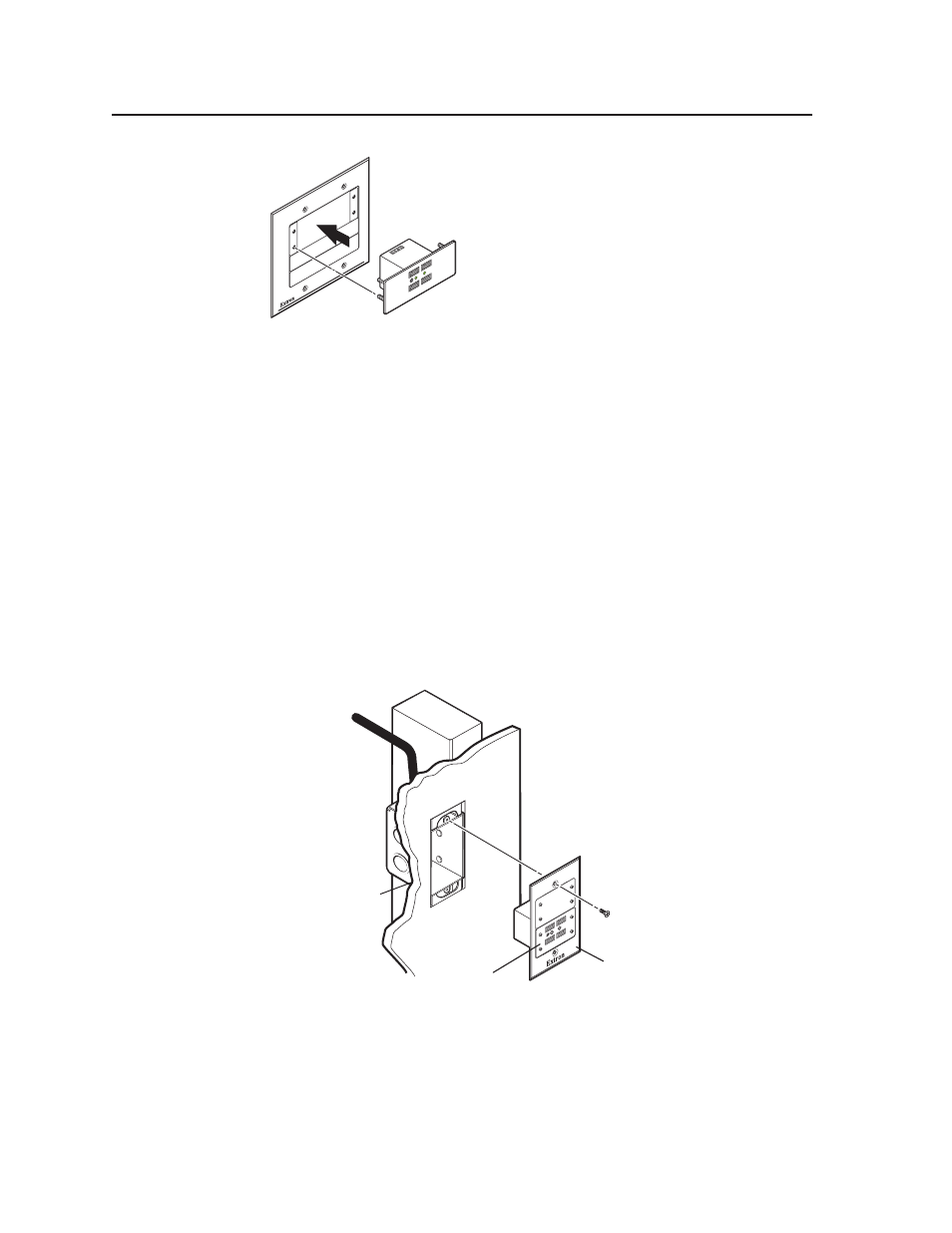

Mounting a USB HUB4 AAP to a two-gang mounting frame
USB HUB4 MAAP:
1. Place the HUB4 MAAP in the one-gang opening in the mounting frame.
2. Insert the included hex screws through the HUB4 front panel mounting holes
and the holes in the MAAP mounting frame.
3. Attach the provided hex nuts to the screws on the back of the frame.
Mounting the hub to a wall box
To mount the HUB4 to an electrical box in a wall or furniture,
1. Mount the HUB4 into a mounting frame as described in the previous section.
2. Attach all power and USB cables to the HUB4 rear panel connectors and test
the system.
3. Attach the mounting frame with the attached HUB4 to the wall box, using the
two included mounting screws.
Wall opening
flush with
edge of box
Extron
CPM101
Mounting Frame Extron
USB HUB4
USB Hub
VT T0 01 MA AP
PO WER
USB HUB4 MAAP
AC TIVITY
Installing a USB HUB4 MAAP in a one-gang wall box
Mounting the hub to a mounting bracket
1. Mount the HUB4 to an AAP or MAAP mounting frame (see “ Mounting the
hub to a mounting frame ”, earlier in this chapter.
2. Attach all required cables to the HUB4’s rear panel connectors and test the
system.
