2-9 USB HUB4 Series • Installation
PRELIMINAR
Y
Sleeve ( )
Ring (-)
Tip (+)
3.5 mm Stereo Plug Connector
(balanced)
6. Insert the wall box or mounting bracket into the opening, and attach it to the
wall, stud, or furniture, leaving the front edge flush with the outer wall or
furniture surface.

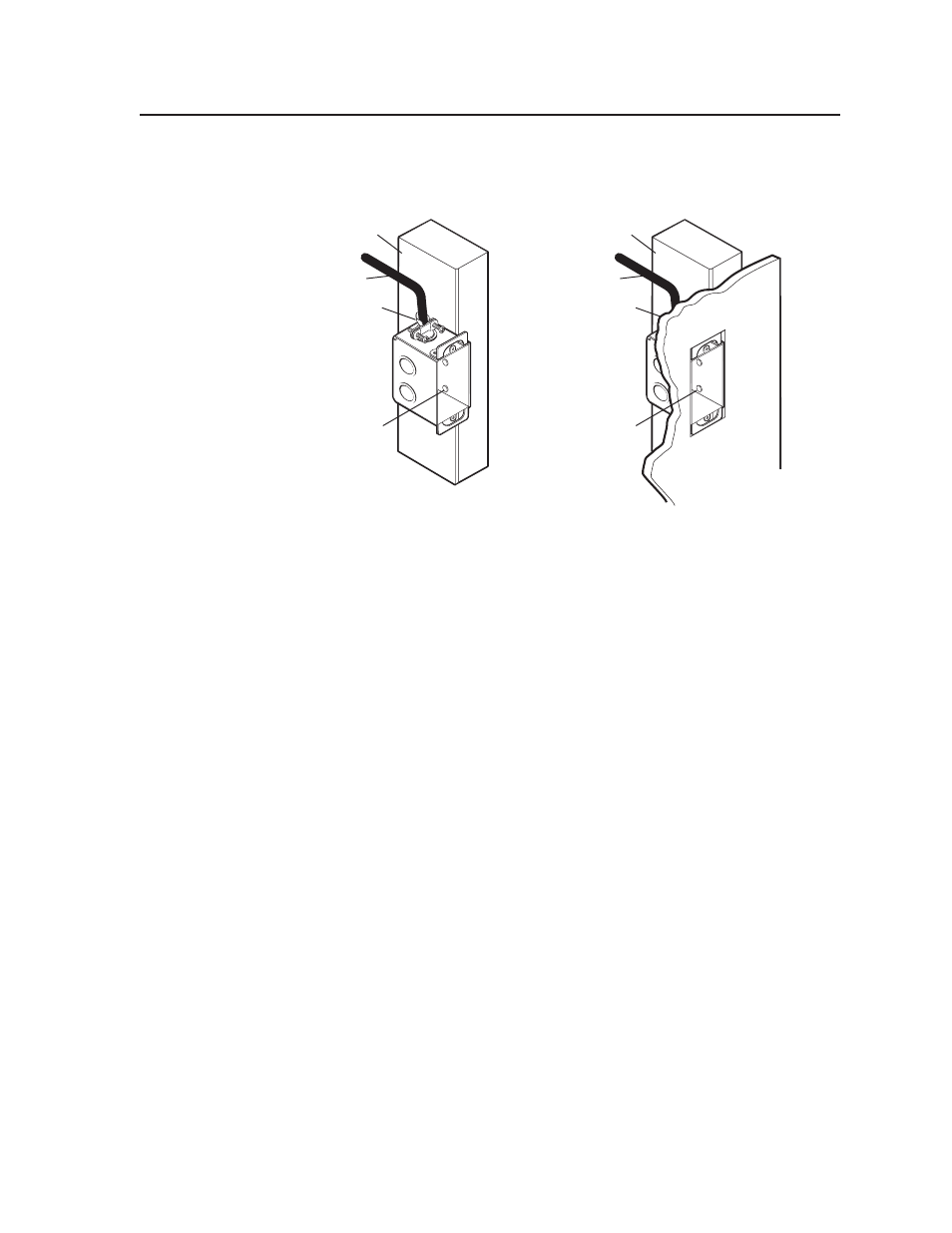

Installation Cable
Cable Clamp
Wall Stud
Installation Cable
Cable Clamp
Wall Stud
Screws or Nails Screws or Nails
Attaching a wall box to a wall stud
• To attach a wall box to wood, use four #8 or #10 screws or 10-penny nails.
A minimum of 1/2 inch (1.3 cm) of screw threads must penetrate the
wood.
• To attach a wall box to metal, use four #8 or #10 self-tapping sheet metal
screws or machine bolts with matching nuts.
• If using a mounting bracket, follow the directions included with the
bracket to attach the clips that fasten the bracket to the wall or furniture.
N Cable and test the HUB4 before mounting it to the wall box, mounting bracket,
or furniture.
Mounting the hub to a mounting frame
If the HUB4 will be mounted to a wall box or mounting bracket, it must first be
mounted into an AAP or MAAP mounting frame, such as the Extron AAP 102 or
CPM101. See “ Optional accessories ” in appendix A, “Reference Material”, for
information on ordering the mounting frames.
Follow the steps below to mount the HUB4 into the appropriate size mounting
frame.
USB HUB4 AAP
:
1. Insert the four threaded studs on the back of the front panel through the
holes in an AAP mounting frame and seat the HUB4 in the frame’s two-gang
opening.
2. Attach the provided hex nuts to the studs on the back side of the frame.
See the example on the next page.
