Page 14

RGB 460xi Series • Installation and Operation
2-6
Blank plates (two single space and one double space) are
included with the interfaces to cover unused spaces. Adapter
plates must be ordered separately (see “Adapter Plates” in
appendix A). They must also be attached to the faceplate and
cabled before the interface is installed in the wall or furniture.
The screws needed for installing the adapter plates are supplied
(MAAPs), or built into the plates (AAPs), so no additional
screws are needed.
1
.
Remove the blank plates from the interface by unscrewing
the hex screws (MAAPs) or nuts (AAPs) that fasten the
plates to the faceplate.
2
.
Attach the adapter plates to the faceplate with the
provided hex screws (MAAPs) or captive washers and #4-
40 nuts (AAPs).
3
.
Attach the output cables to the rear connectors of the
adapter plates. Soldering will be required for some
connectors. Attach foil and braided shields to ground
connections.
Rear Panel Features and Cabling
4
8
5
3
7
6
2
9
4
8
5
3
7
6
2
9
5
1

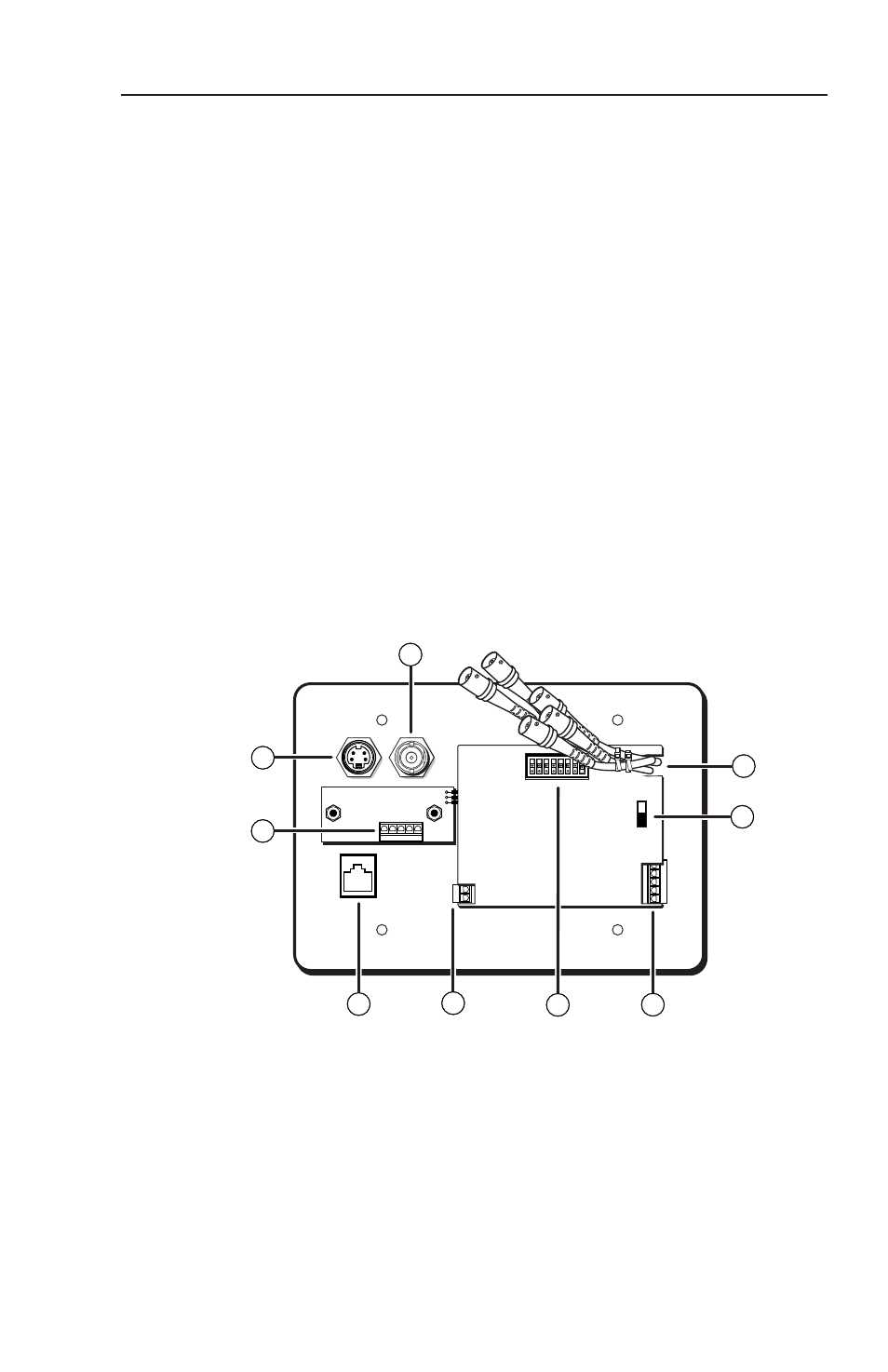

Rear panel of the RGB 464
xi
xi
xi
xi
xi interface
