Refer also to the MTPX Plus User’s Manual at www.extron.com .
k
Ethernet port — If desired, connect a network WAN
or LAN hub, a control system, or a computer to the
Ethernet RJ-45 port.
•
Network connection — Wire as a patch (straight) cable.
• Computer or control system connection — Wire the
interface cable as a crossover cable.
N The factory default IP address is 192.168.254.254.
Power
l
Power connector — Plug the switcher into a grounded AC
source.
Front Panel
AUDIO VIDEO
I/O CONTROL
ENTER PRESET VIEW ESC
CONFIG
MTPX PLUS SERIES
MTP MATRIX SWITCHER
13

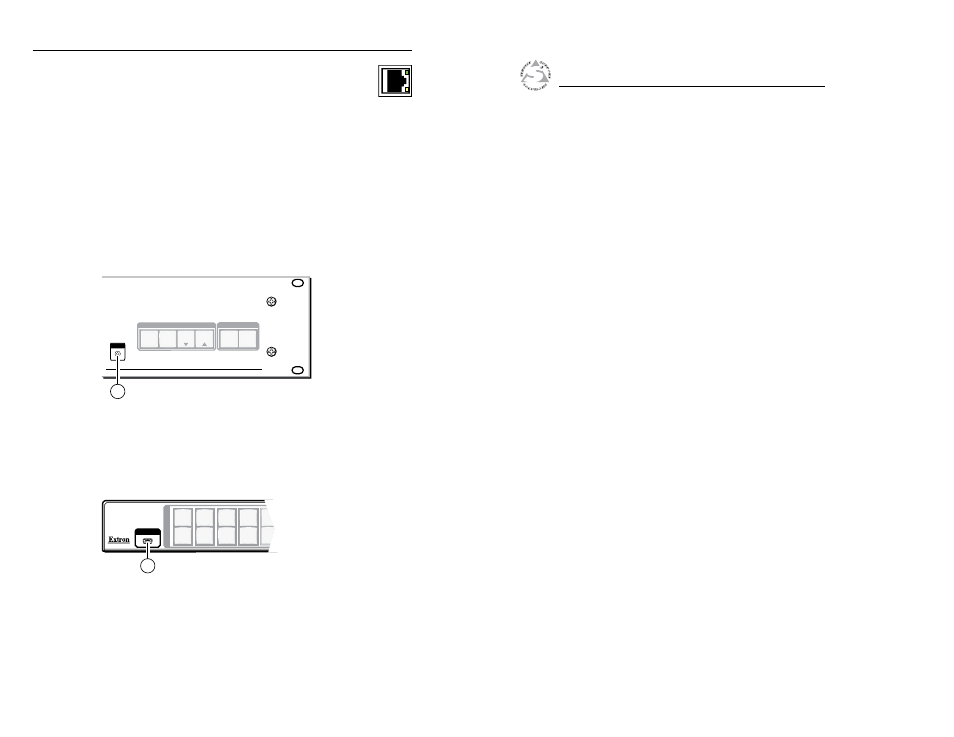

Figure 2-8 — Configuration port, most models
m
Configuration port (switchers other than the MTPX Plus 128) —
If desired, connect a control system or computer to the front
panel Configuration (RS-232) port. Use an optional 9-pin D
to 2.5 mm mini jack TRS RS-232 cable, part #70-335-01.
1
1 2
2 3
3 4
4 5
5 I N
P U T
O U T
P U T
CONFIG
14
Figure 2-9 — Configuration port, MTPX Plus 128
n
Configuration port (MTPX Plus 128 only) — If desired,
connect a control system or computer to the front panel
Configuration port, a mini USB B port.
