Refer also to the VersaTools ® MTP Series User’s Manual at www.extron.com.
Power connection (all models)
See Figure 1‑6 to identify the power connections and indicators.
INPUT
MTP T SV A RCA
OUTPUT S-VIDEO
L R
12V
0.5a MAX
OUTPUT
MTP R SV A RCA
INPUT
S-VIDEO
R L
12V
0.5a MAX
AUDIO IN
VIDEO
IN
L R
MTP T AV
12V 0.5A
MAX
OUTPUT
PO
WER −
+
MTP AAP Transmitters
MTP Transmitters MTP Receivers
g g
f g
f
f

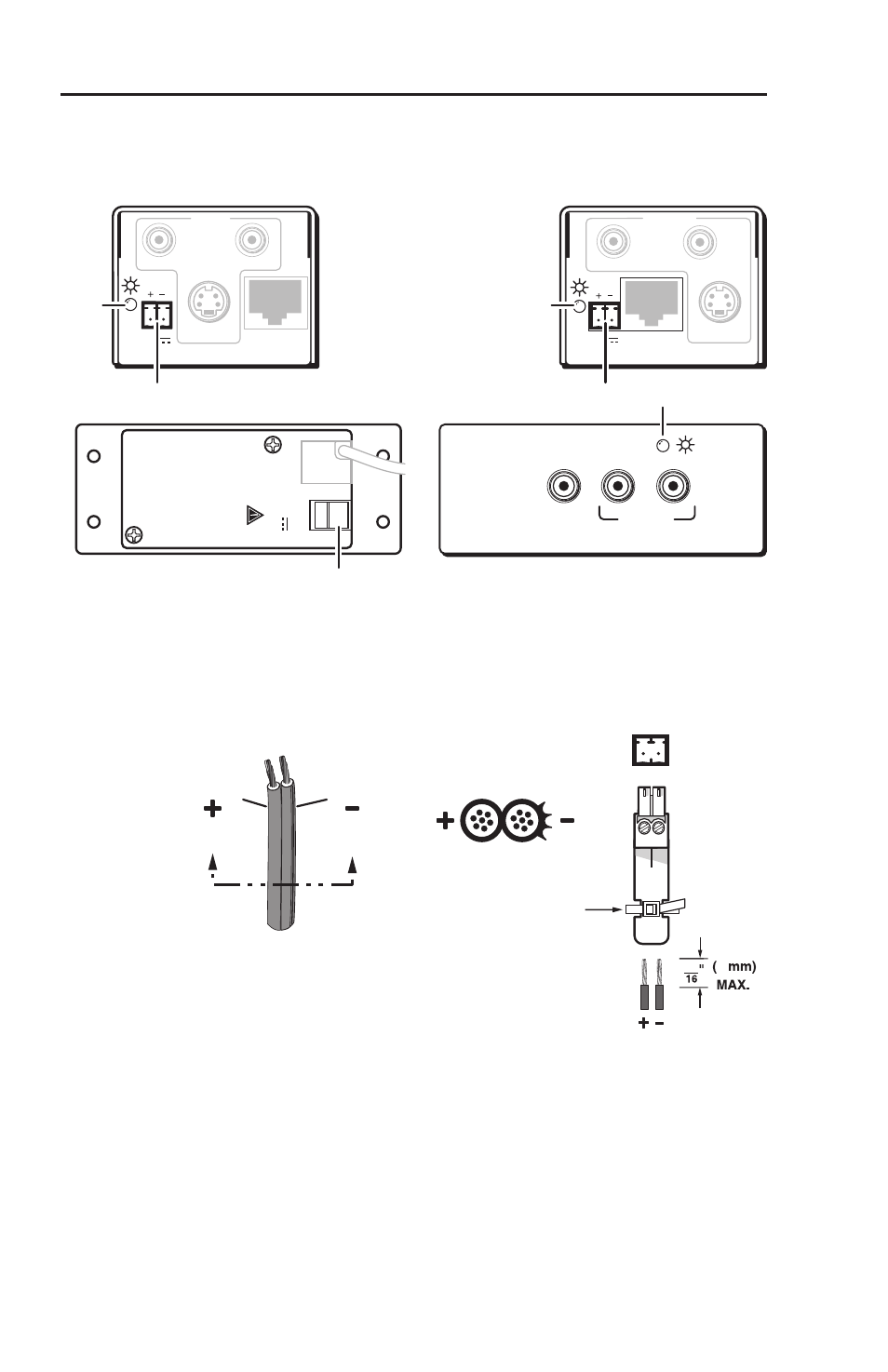

Figure 1-6 — Power connections and indicators
f
Power connector — Plug the external 12 VDC power supply
into this 2‑pole captive screw connector on both the transmitter
and the receiver. Figure 1‑7 shows how to wire the connectors.
Captive Screw Connector
SECTION A–A
Power Supply
Output Cord
Ridges
A
Smooth
A
Tie Wrap
+ _
3 5
Figure 1-7 — Power connector wiring
C Power supply voltage polarity is critical. Incorrect voltage
polarity can damage the power supply or MTP. Identify
the power cord negative lead by the ridges on the side of the
cord (Figure 1-7).
