Refer also to the VersaTools ® MTP Series User’s Manual at www.extron.com.
Panel Features and Connections
Transmitter input connections

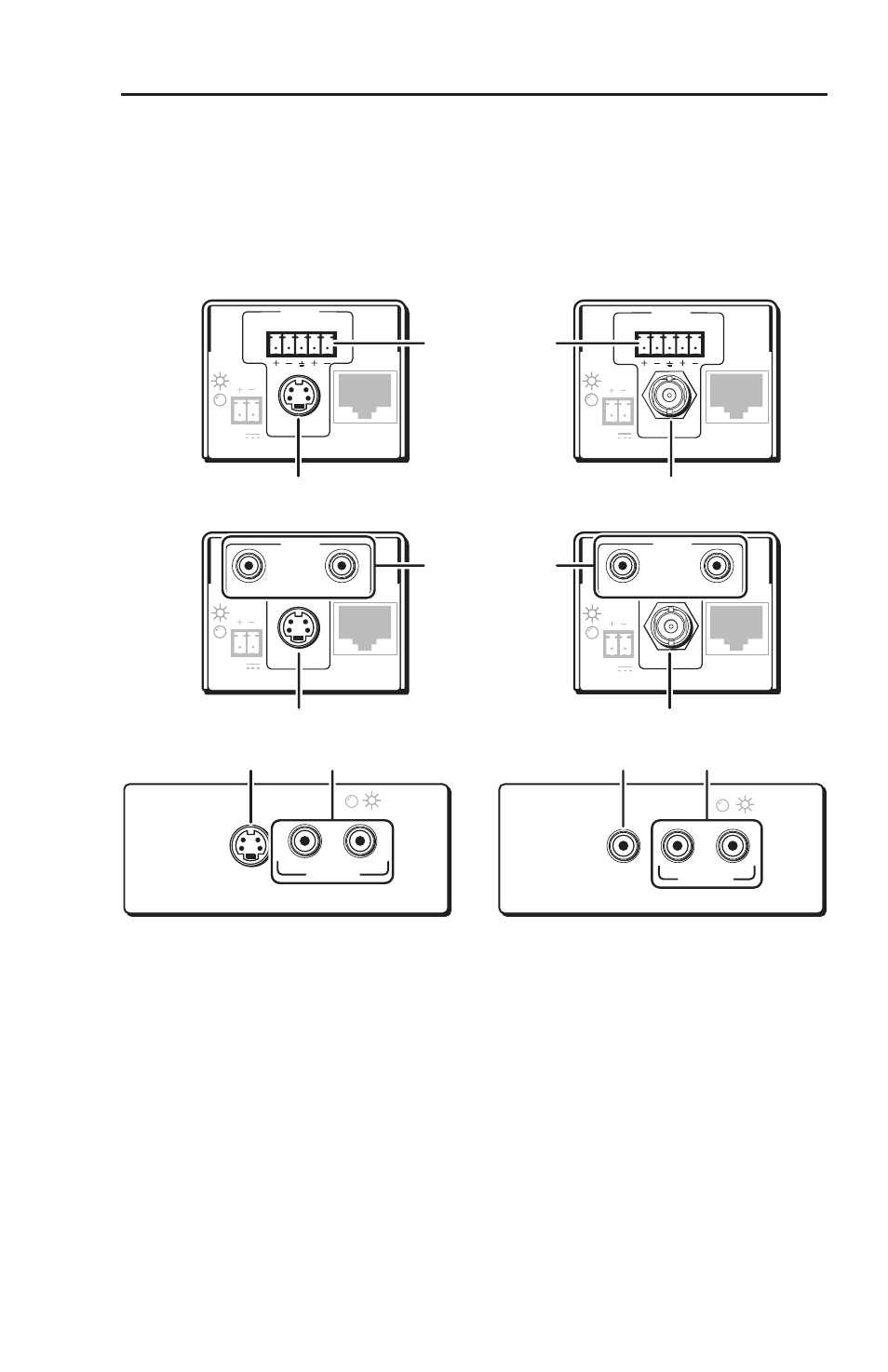

Figure 1‑1 shows the video and audio input connectors of the
MTP Series transmitters.
N Some transmitters do not have audio connections.
12V
0.5a
INPUT
MTP T AV RCA
OUTPUT
MAX
VIDEO
L R
INPUT
L R
12V
0.5a MTP T AV
OUTPUT
MAX
VIDEO
12V
0.5a
INPUT
L R
MTP T SV A
OUTPUT
MAX
S-VIDEO
12V
0.5a
INPUT
MTP T SV A RCA
OUTPUT
MAX
S-VIDEO
L R
MTP T SV A RCA,
Rear Panel MTP T AV RCA,
Rear Panel
MTP T AV AAP,
Front Panel MTP T SVA AAP,
Front Panel
MTP T SV A,
Rear Panel MTP T AV,
Rear Panel
AUDIO IN S-VIDEO
IN
L R
MTP T SVA
AUDIO IN
VIDEO
IN
L R
MTP T AV
a
c c
a
a
d d
d b
b
b
d
Figure 1-1 — Video and audio input connections
a
S-video connector (SV models) — Connect an S‑video input to
this 4‑pin mini DIN connector.
b
Composite video connector (CV and AV models) — Connect
a composite video input to this connector (female RCA on the
MTP T AV AAP, female BNC on all other models).
VersaTools ® MTP Series • Installation 1-5
