TeamWork Kits • Installation Guide (Continued)
8
Connect the Switcher to the Display Device
Connect the switcher HDMI output to the HDMI input of the display device, using the provided cable. Do not use HDMI to DVI
adapters. If necessary, see the user guide for the display device.
Connect the Display to the System Controller
Connect the power cord from the display device to the power output receptacle of the system controller. TeamWork systems work
by controlling the AC power to the display.
ATTENTION: If you are using the IPL T PC1i (International TeamWork kits) you must replace the power plug on the display
with the provided adapter (see page 2).
ATTENTION: Si vous utilisez le IPL T PC1i (Kits TeamWork International), vous devez remplacer la prise d’alimentation sur
l’écran par l’adaptateur fourni (voir page 2).

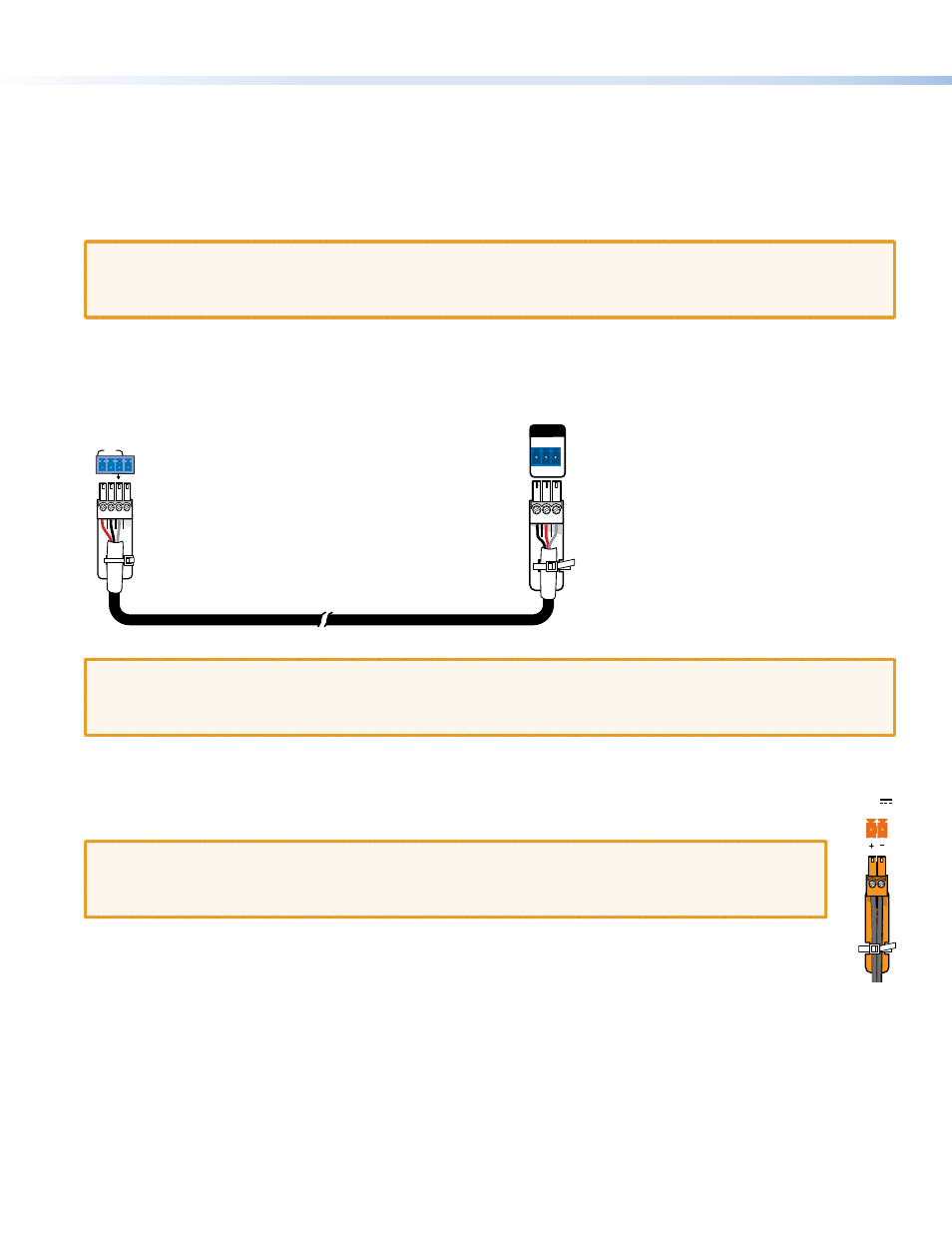

Connect the System Controller to the Switcher
Connect the COM port of the system controller to the RS-232 port on the switcher with the provided control cable.
System Controller
(IPL T PC1)
COM
TX +5V RX
Switcher
(MPS 601)
3-pole connector
(to switcher)
4-pole connector
(to system controller)
Switcher Control Cable
RS-232
Tx Rx G
REMOTE
ATTENTION: The two ends of the RS-232 control cable are different. One has a 4-pole connector, the other has a 3-pole
connector.
ATTENTION: Les deux terminaisons du câble de contrôle RS-232 sont différentes. L’une a un connecteur 4 pôles, l’autre a
un connecteur 3 pôles.
Connect Power
The system controller uses an internal power supply. Connect the power cord to a wall outlet.
The TeamWork 601 systems use a switcher with a 12 VDC, 1 A power supply, which is provided with the switcher.
ATTENTION: Do not power on the MPS 601 switcher until you have read the Attention in the Power Supply
section of the MPS 601 User Guide.
ATTENTION: Ne branchez pas le sélecteur MPA 601 avant d’avoir lu la mise en garde dans la section « sources
d’alimentation » du MPS 601 User Guide.
0.4A MAX
POWER
12V
