7

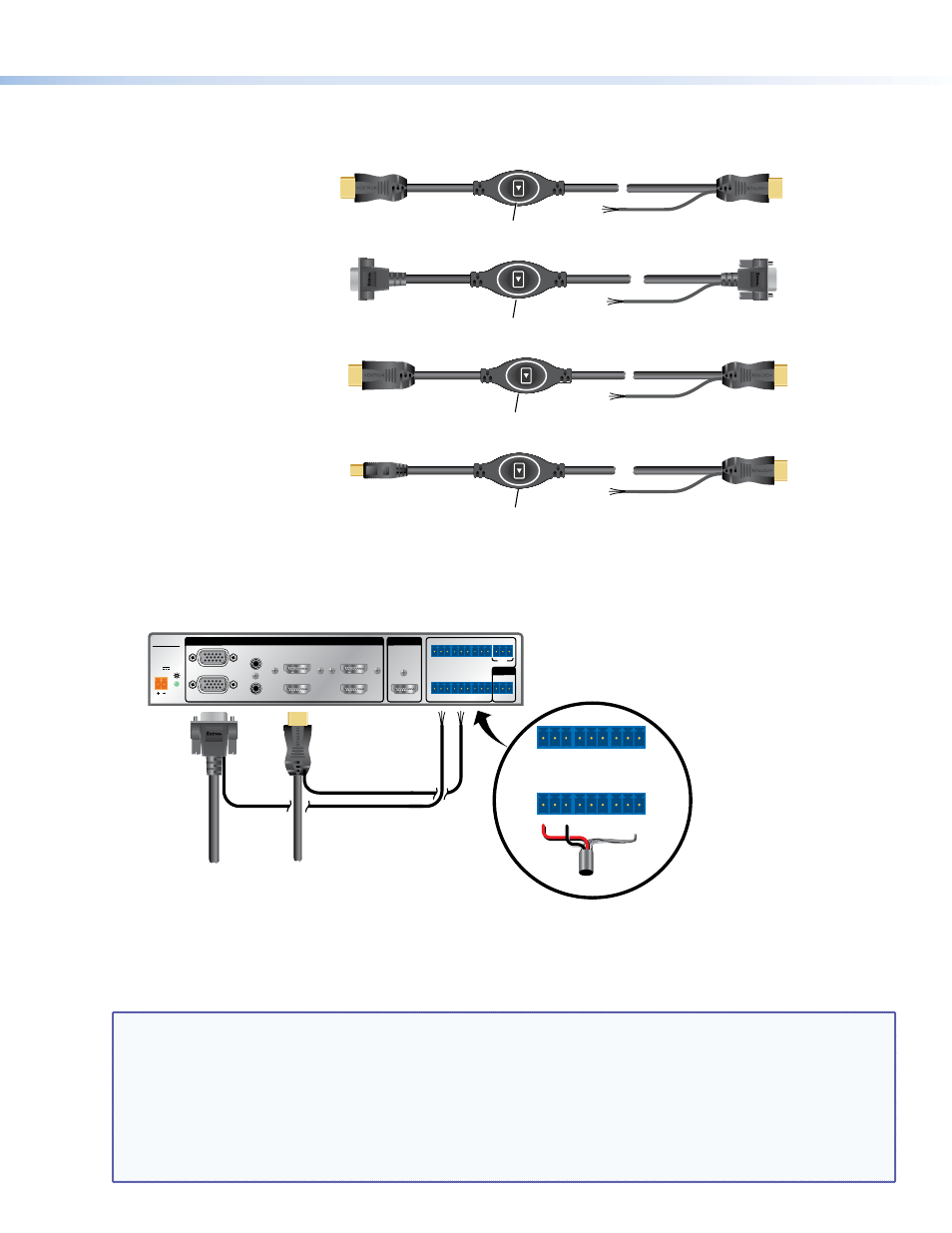

“Show Me” Cables
The Extron “Show Me” cables are for use with Extron TeamWork systems. They feature a Share button for remote input source
selection and a control pigtail, which may be wired directly into Extron switchers with contact closure and tally outputs.
HDMI “Show Me” cable
INPUT
(to source device)
Top of Cable Cubby
OUTPUT
(to switcher)
Bottom of
Cable Cubby
Share Button Three-conductor
pigtail for contact
closure and tally
VGA “Show Me” cable
SHAR
E
INPUT
(to source device)
Top of Cable Cubby
OUTPUT
(to switcher)
Bottom of
Cable Cubby
Share Button
Three-conductor
pigtail for contact
closure and tally
Display Port
“Show Me” cable INPUT
(to source device)
Top of Cable Cubby
OUTPUT
(to switcher)
Bottom of
Cable Cubby
Share Button
Three-conductor
pigtail for contact
closure and tally
SHARE
Mini Display Port
“Show Me” cable INPUT
(to source device)
Top of Cable Cubby
OUTPUT
(to switcher)
Bottom of
Cable Cubby
Share Button
Three-conductor
pigtail for contact
closure and tally
SHARE
Connecting “Show Me” Cables
1. Connect the input end of the “Show Me” cable to the source device.
2. Connect the HDMI output to the Extron switcher.
SHOW ME CABLE
SWITCHER END
(output)
Male HDMI connector
Three-conductor
pigtail for contact
closure and tally
Extron MPS 601 Switcher
CONTACT IN / TALLY OUT
G C
1 3 5
2 4 6
T T C G T C G
G C T T C G T C G
Black
(T)
Red
(C)
Pigtail
Drain wire
(not used)
Male VGA connector
0.5 A MAX
POWER
12V
1
2
B
A 3
4
5
6
INPUTS MPS 601
CONTACT IN / TALLY OUT
HDMI
RGBHV
HDMI
HDMI RS-232
G C
1 3 5
2 4 6
T T C G T C G
G C T T C G T +V C G
Tx Rx G
OUTPUT
REMOTE
3. Connect the black (Tally Out) and red (Contact In) pigtail wires as shown above. The number adjacent to the Tally Out and
Contact pins must correspond to the video input on the switcher.
4. Press the Share button to switch the connected source to the main presentation display. Pressing the Share button creates
a momentary contact closure, which triggers the switcher to select the connected source device. If a tally output is available,
the button will light up blue.
NOTES:
• The drain wire does not need to be wired to the switcher. The “Show Me” cables are grounded via the video
connectors.
• Do not connect the “Show Me” cable to the +V pin on the Extron switcher.
• The source device provides the +5 VDC supply voltage needed to illuminate the Share button. If the source device
does not supply this +5VDC, the Share button will not illuminate. Some mobile devices do not provide the required
voltage to light up the button.
• Digital “Show Me” cables support embedded audio and CEC signals.
