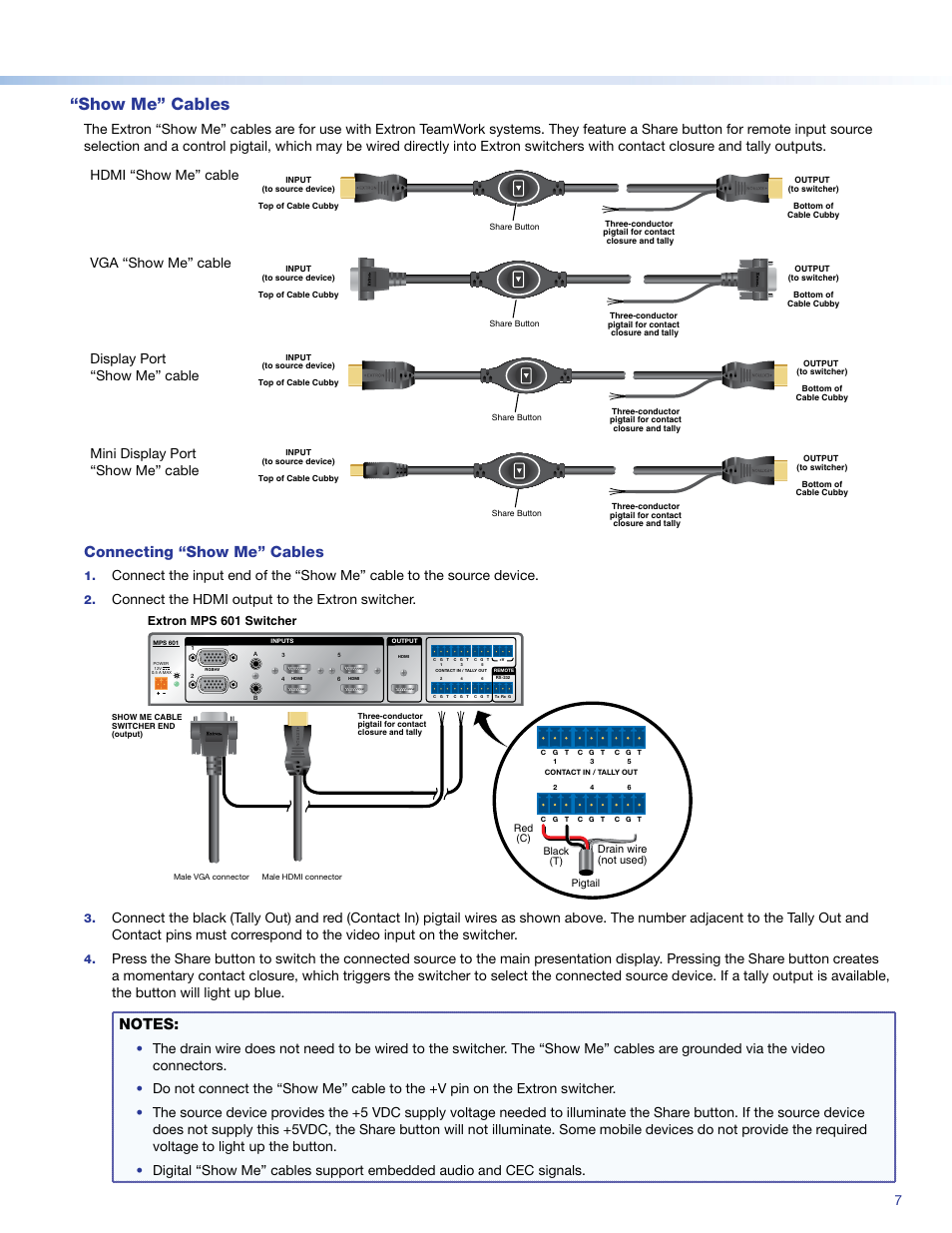

Show me” cables, Connecting “show me” cables, Vga “show me” cable – Extron Electronics TeamWork 601i Kits Installation User Manual
Page 7: Display port “show me” cable, Mini display port “show me” cable, Connect the hdmi output to the extron switcher, Extron mps 601 switcher
