PVM 220 • Installation Guide (Continued)

Step 11 — Attach the door tether to the door.

The PVM 220 enclosure has a door tether cable installed on
the right side of the enclosure (when viewed from the front).
After the device mounting plate is installed, the tether should
be attached to the door to ensure safety when the door is
opened.
To attach the tether to the door:

With the door fully open, locate the door tether
attached within the enclosure. The tether
has a looped end to be attached to the door.

In the lower corners of the door locate the cutout with
a "T" shaped metal tab (see figure 12).

Stretch the tether and close up the door until the loop on
the tether can be carefully slid over the "T" tab on
the door. Ensure the loop is completely over the "T".

Carefully lower the door to the full extent of the tether
to ensure it functions correctly.

Step 12 — Secure the door latches.

Both door latches can be made secure so the door cannot
be opened accidentally or inadvertently.
To secure the latches close the door and tighten down the
small set screws onto the latch (see figure 13).
For full safety secure both latches.

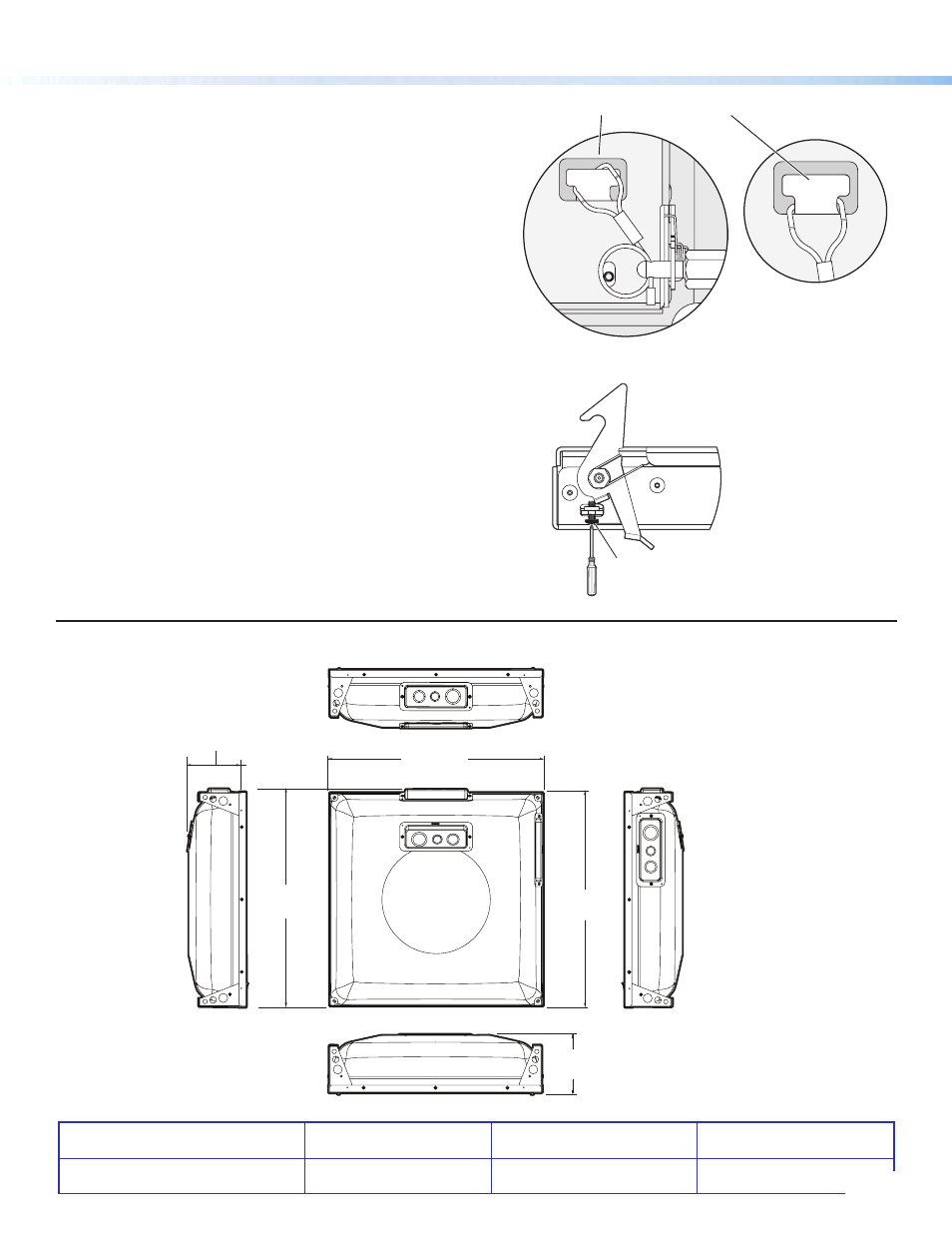

Figure 12.

Attach the Tether to the Door (as viewed from

inside enclosure).

To secure the latch from opening
tighten down the set screw onto the latch.

Figure 13.

Secure the door latches (side of door view).

Push the tether loop completely over the T tab on the door.

Figure 14.

Enclosure Dimensions

PVM 220 Enclosure Dimensions
