P/2 DA4xi/6xi • User’s Guide

100-240V 0.2A

INPUT

P/2 DA6xi

VIDEO GAIN

1V

.7V

3

(LOCAL MONITOR)

2

1

3

5

4

6

50/60 Hz

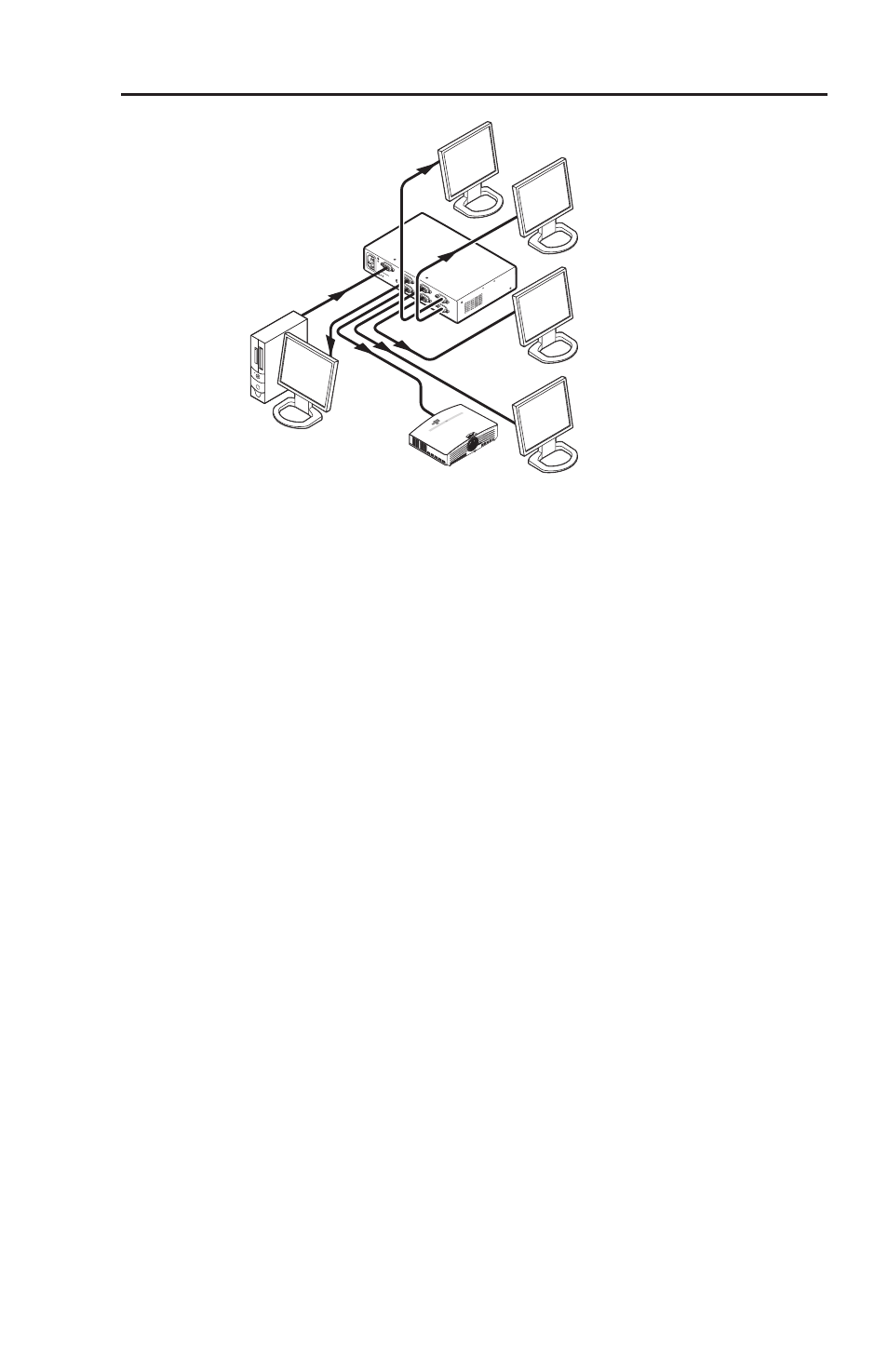

PC

Projector

Displays

Extron

P/2 DA6xi

VGA Distribution

Amplifier

Video Gain

The Video Gain switch is located on the rear panel with a default

setting of 0.7 V (down). Set the switch to 1 V when long cable

runs affect the picture quality.

This boosts the signal level to

compensate for degradation due to cable length.

Signal Compatibility

Signal compatibility is affected by voltage. When the Video

Gain switch is set to

0.7 V (default) — the P/2 DA can pass all signal types

(VGA-QXGA, RGBHV, RGBS, RGBsB, RsGsBs, component

video, S-video and composite video).

1 V — the P/2 DA can pass only the RGBHV and RGBS

video types.

7
