IPL M PDP-ES • Quick Start Guide QS-1
To install and set up the IPL M PDP-ES interface card, follow
these steps:
Step 1
Turn all of the equipment off and disconnect it from the power
source.
Step 2
Remove the preinstalled Pioneer communication ES card from the
Pioneer plasma. Refer to Removing the Pioneer communication ES card
in chapter 2 for more information.
Step 3
Install the Extron IPL M PDP-ES interface card into the Pioneer
plasma. Refer to Installing the Extron IPL M PDP-ES card in chapter 2
for more information.
Step 4
Affix the Extron IPL M PDP-ES sticker label to the display, covering
the existing Pioneer label.
Step 5

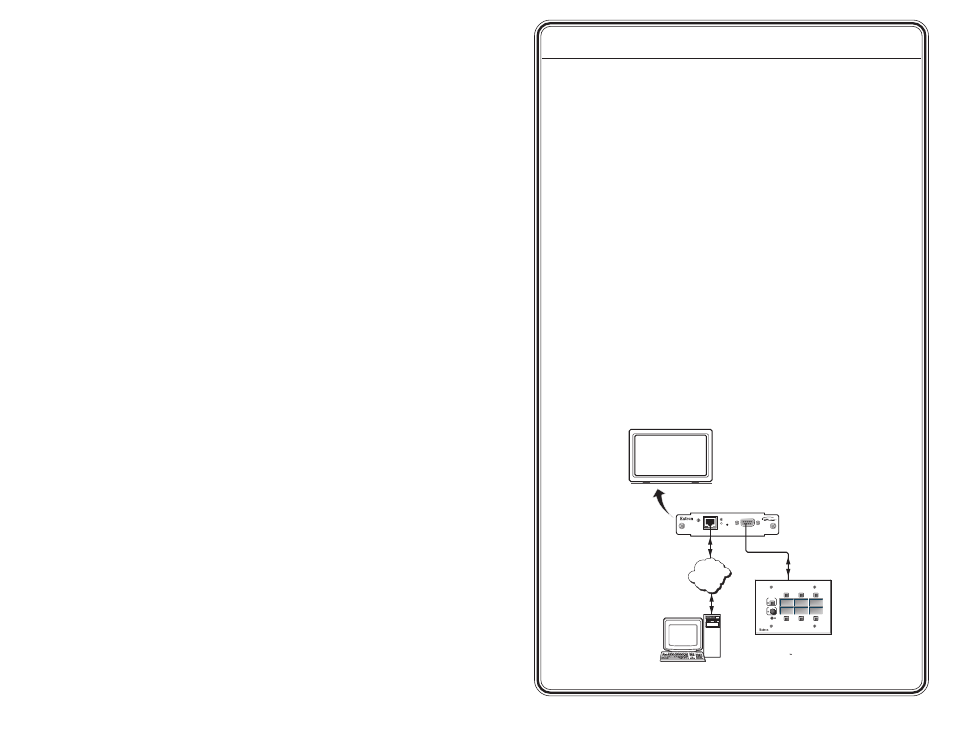

Attach the network (LAN) cable to the LAN port of the
IPL M PDP-ES interface card installed in the Pioneer plasma. Attach
the other end to a switch, hub, router, or a host PC, as shown below.
See Ethernet/LAN port in chapter 3 for more information on this
connection.
IPL M PDP-ES ACT LINK RESET
LAN
RS-232
Extron
IPL M PDP-ES
Pioneer Plasma Ethernet Card
Extron
MLC 206
MediaLink Controller
PC
RS-232
LAN
MLC 206
DISPLAY
POWER
VOLUME MAX/ MIN
VCR DVD Laptop
Quick Start Guide — IPL M PDP-ES
