Extron • Matrix 3200/6400 Series • User’s Manual
Chapter 2 • Installing the Matrix 3200/6400 Wideband Video Switchers
2-4

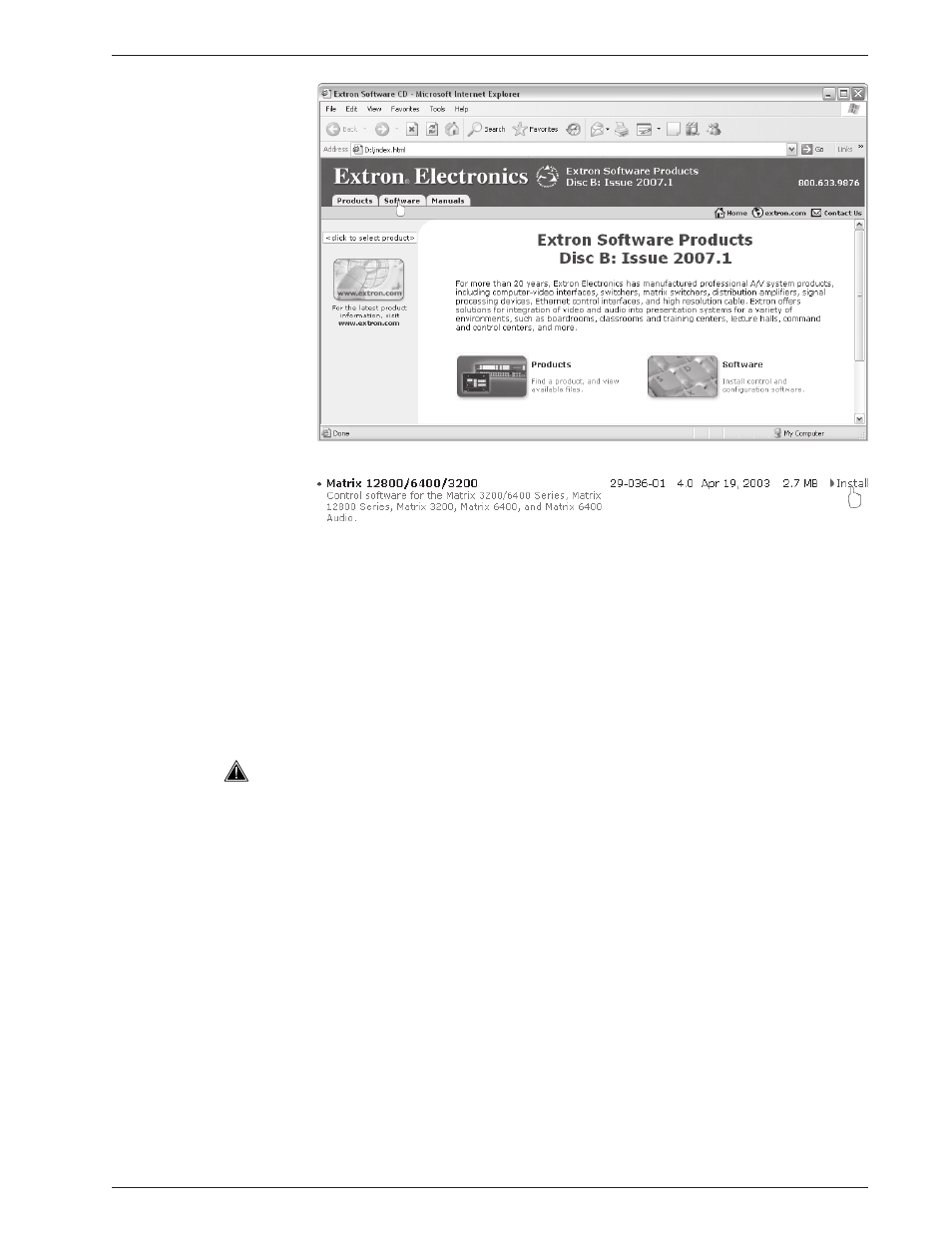

3. Scroll to the desired program and click Install.
4. Follow the on-screen instructions. By default, the Windows installation of the
Virtualization/Control Program creates a C:\ Mtrx6400 directory, and it places
four the following two icons into a group folder named “Extron Electronics:
•
MATRIX 6400+12800 Control Program
• MATRIX 6400+12800 Help
5. To run the Virtualization/Control Program, click Start > Programs > Extron
Electronics > Matrix 6400+12800 Control Pgm.
The Comm Port Selection window (figure 3-6.A on page 3-6) appears.
6. You will be asked to select the Comm Port, or choose “Emulate” mode. After
selecting the COMM port, the software looks for the matrix system, “reads” its
configuration, and then displays it in a window called “Extron’s MATRIX 6400
Control Program”.
______ Emulate mode allows you to exercise the software without having a switcher
connected to the PC. It may also be used as a learning tool.
8. Virtualizing the Matrix 3200/6400 System
Detailed instructions for virtualizing the Matrix 3200/6400 System begin on Page
3-1.
