2-9 IN1502 • Installation and Operation
Picture Control

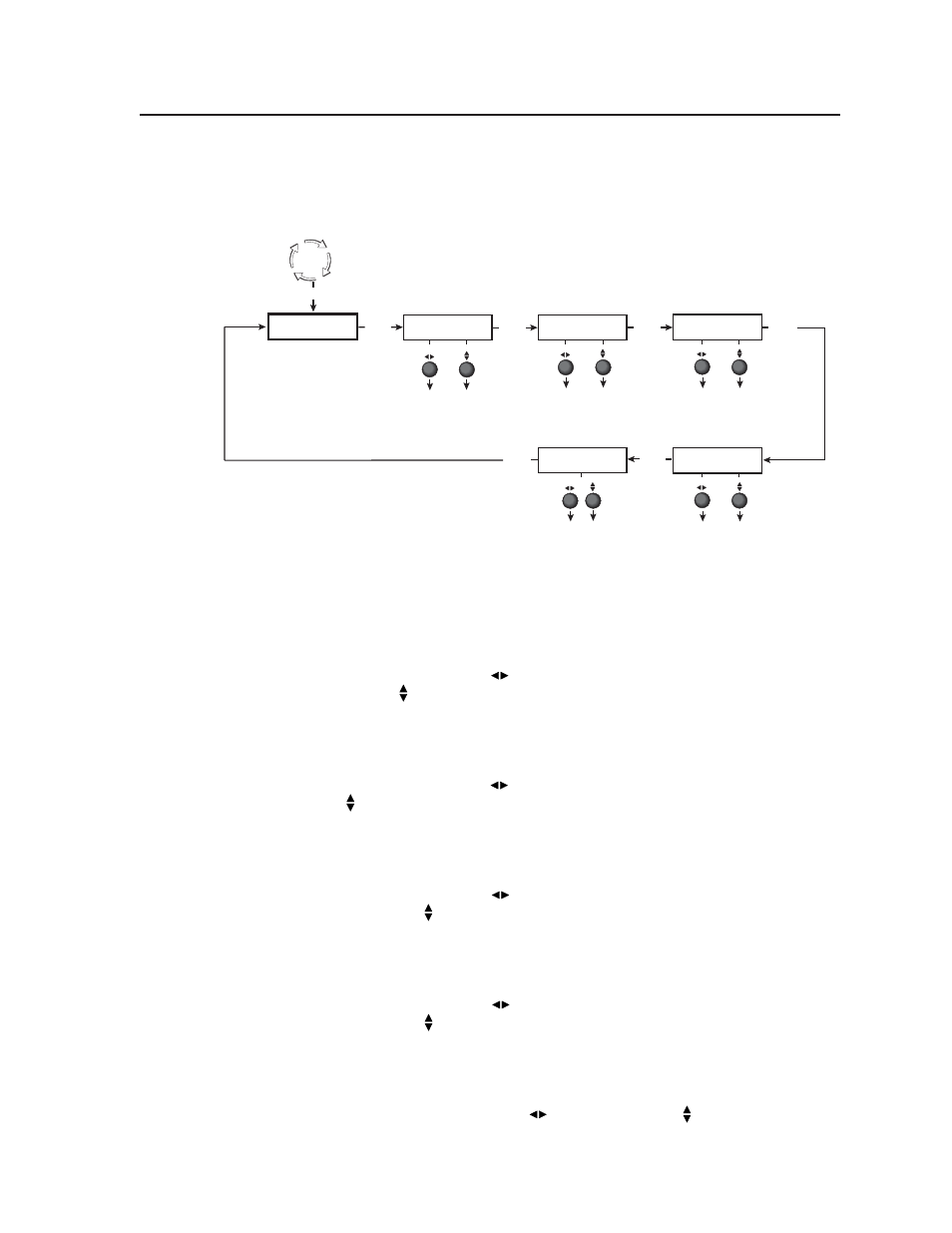

The following flowchart provides an overview of the Picture Control submenus
and the options for each setting.
CONTROL
MENU
NEXT
BRT CONT
128 128
COL TINT
128 128
H CNTR V
128 128 NEXT
NEXT
NEXT
NEXT
NEXT
Brightness and Contrast
• Brightness ranges from 000 to 255.
The default is 128.
• Contrast ranges from 000 to 255.
The default is 128.
DETAIL
016
H SIZE V
. .
Color and Tint
• Color ranges from 000 to 255.
The default is 128.
• Tint ranges from 000 to 255.
The default is 128.
Detail
• Detail (sharpness) ranges from
000 to 63. The default is 16.
Default
Cycle
Horizontal and Vertical Centering
• Horizontal centering ranges from 000 to
255. The default is 128.
• Vertical centering ranges from 000 to 255.
The default is 128.
Horizontal and Vertical Sizing
• Adjust horizontal and vertical sizing while
observing the display.
Brightness and contrast control
This submenu allows adjustment of the brightness and contrast of the output
display. The adjustment ranges from 0 to 255. The default is 128.
Rotate the horizontal Adjust ( ) knob to adjust the brightness and use the
vertical Adjust ( ) knob to adjust the contrast of the output display.
Color and tint control
This submenu allows adjustment of the color and tint of the output display. The
adjustment ranges from 0 to 255. The default is 128.
Rotate the horizontal Adjust ( ) knob to adjust the color and use the vertical
Adjust ( ) knob to adjust the tint of the output display.
Horizontal and vertical centering control
This submenu allows adjustment of the horizontal and vertical centering of the
output display. The adjustment ranges from 0 to 255. The default is 128.
Rotate the horizontal Adjust ( ) knob to adjust the horizontal centering and use
the vertical Adjust ( ) knob to adjust the vertical centering of the output display.
Horizontal and vertical sizing control
This submenu allows adjustment of the horizontal and vertical sizing of the
output display.
Rotate the horizontal Adjust ( ) knob to adjust the horizontal sizing and use
the vertical Adjust ( ) knob to adjust the vertical sizing of the output display.
Detail control
This submenu allows adjustment of the image detail (sharpness) of the output
display. The adjustment ranges from 0 to 63. The default is 16.
Using either the horizontal Adjust ( ) or vertical Adjust ( ) knob, adjust the
detail while observing the output display.
