2-3 IN1502 • Installation and Operation
Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
NOTE: Using screws longer
than 3/16” will damage the
unit and void the warranty.

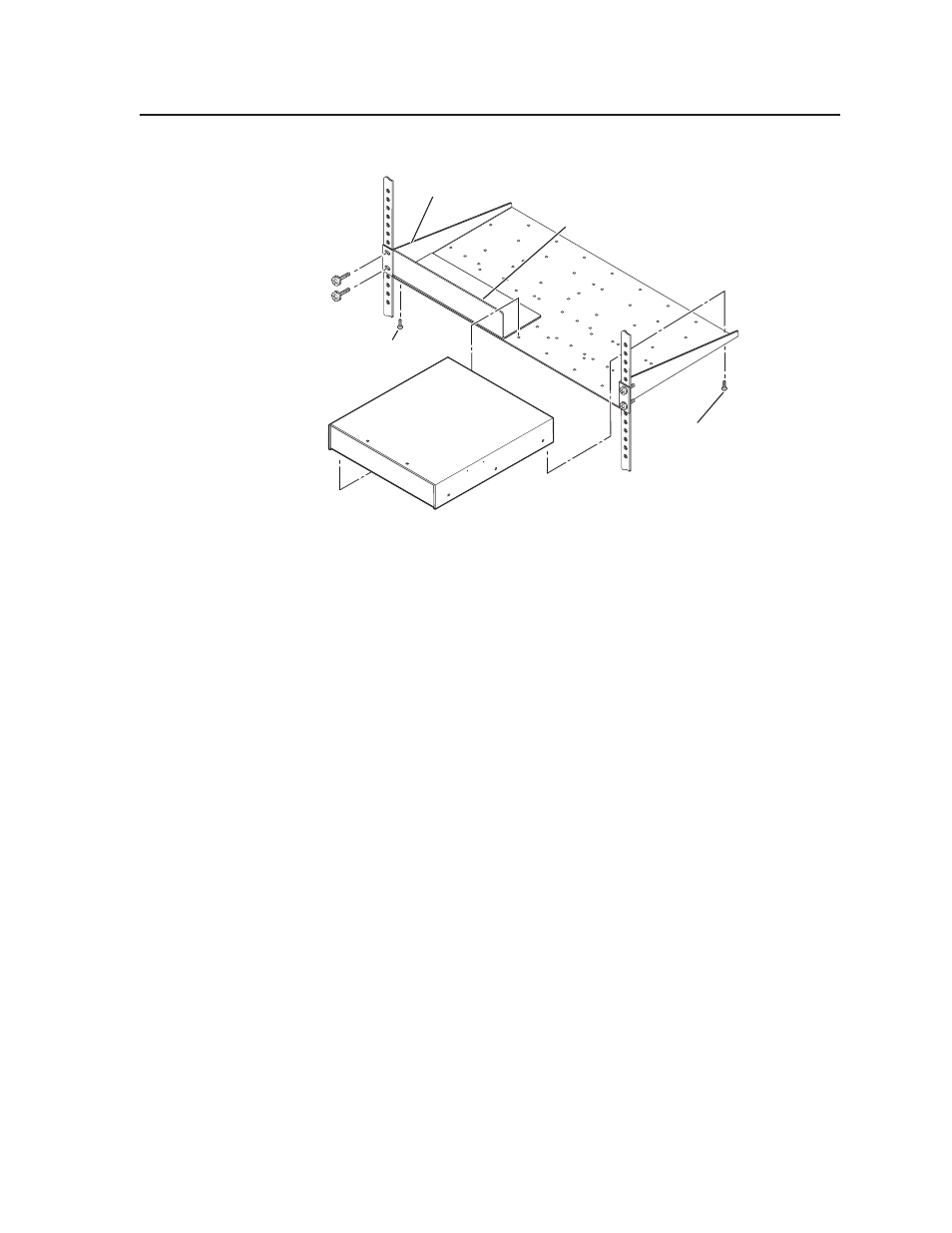

1U Universal Rack Shelf
Front false
faceplate
uses 2
screws.
1/2 Rack Width Front False
Faceplate
Rack mounting the IN1502
4 . Attach the false front panel (provided with rack shelf part #60-190-01) to
the unoccupied side of the rack (as shown above), or install a second half-
rack-width device in that side by repeating steps 1 through 3.
5 . Attach the rack shelf to the rack using four 10-32 x ¾" bolts (provided).
Insert the bolts through #10 beveled washers, then through the holes in the
rack, as shown above.
