Installation and Operation, cont’d
IN1502 • Installation and Operation 2-8

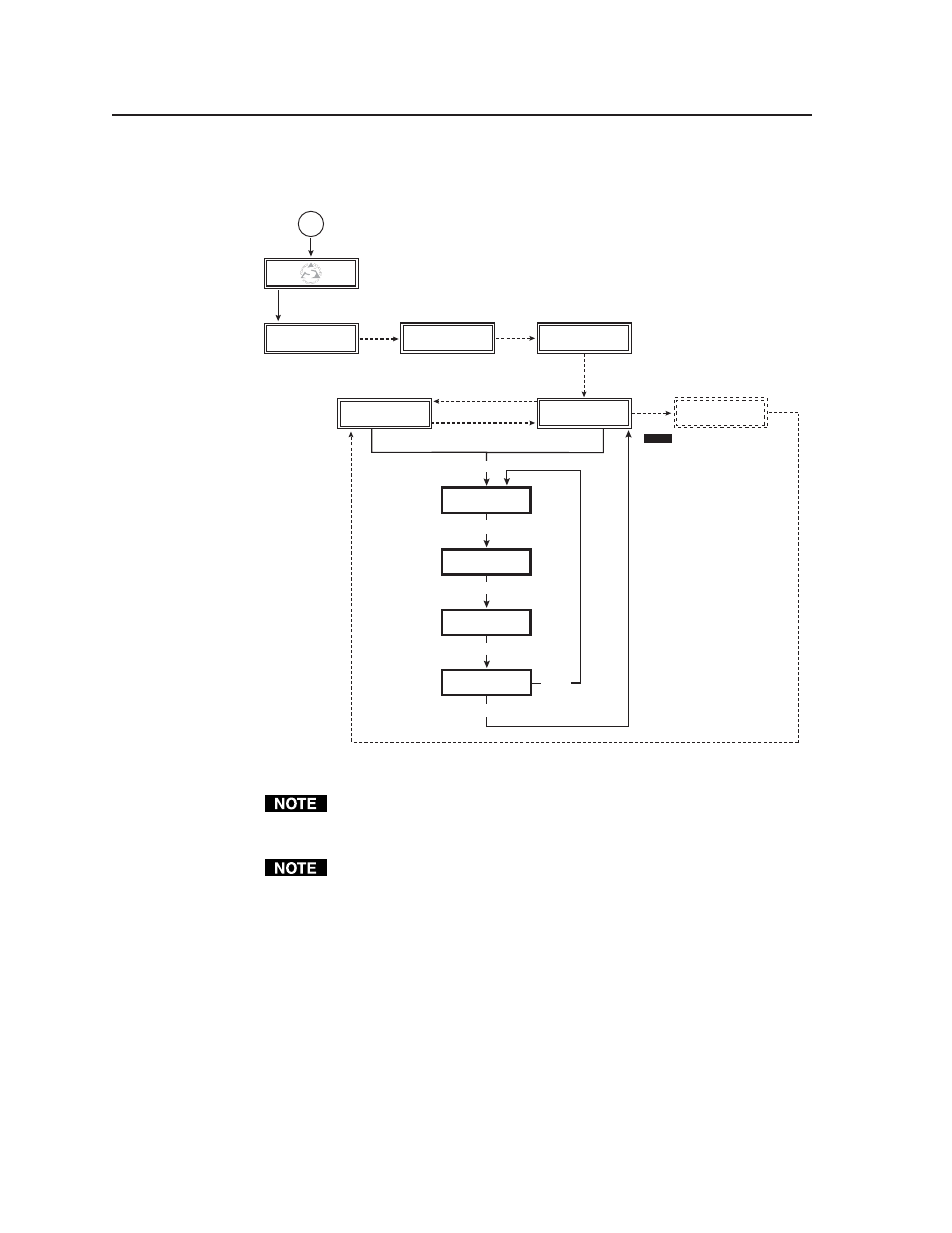

The main menus are as shown in the following flowchart. Use the Menu key to
scroll between them.
MENU
CONTROL
MENU
OUTPUT
CONFIG
MENU
ADVANCED
CONFIG
MENU
NEXT
MENU
EXIT
MENU
Power
on
INPUT 1
CMPOSITE
INPUT 1
CMPOSITE
2 sec.
60-726-1
FW v.1.00
1360 x
765 @60
EXTRON
IN1502 2 sec.
2 sec.
2 sec.
2 sec.
DEFAULT CYCLE 2 s e c .
NO
SIGNAL
2 s e c .
The No Signal default menu
only occurs if there is no
signal present at the currently
selected input connector. NOTE
Main menus
To return to the default screens, let the IN1502 time-out for 10 seconds, or
press the Menu button until the Exit Menu menu appears, then press the Next
button.
Submenus are accessed from a main menu by pressing the Next button. If
you press the Menu button while a submenu is active, the next main menu
becomes active. For example, the menu changes from the Output
Configuration menu or its submenus to the Advanced Configuration main
menu.
