Replacing a Blank Panel with a QuickSwitch Front Panel Controller
_______ Installing a front panel may be easier by placing the Matrix face-up, being
careful to protect the BNC connectors from damage. See Figure 4-4.
After removing the Matrix 100 cover, remove the Blank Front Panel as follows:
1. Remove the four screws and dress washers (items & in Figure 4-4) from
the existing front panel. Take care to remove the four spacers from the rear of
the panel.
2. When removing the blank
panel, disconnect the Power
Indicator cable from J13 on
the right side of the Main
Controller board. See
in
Figure 4-3 (right).

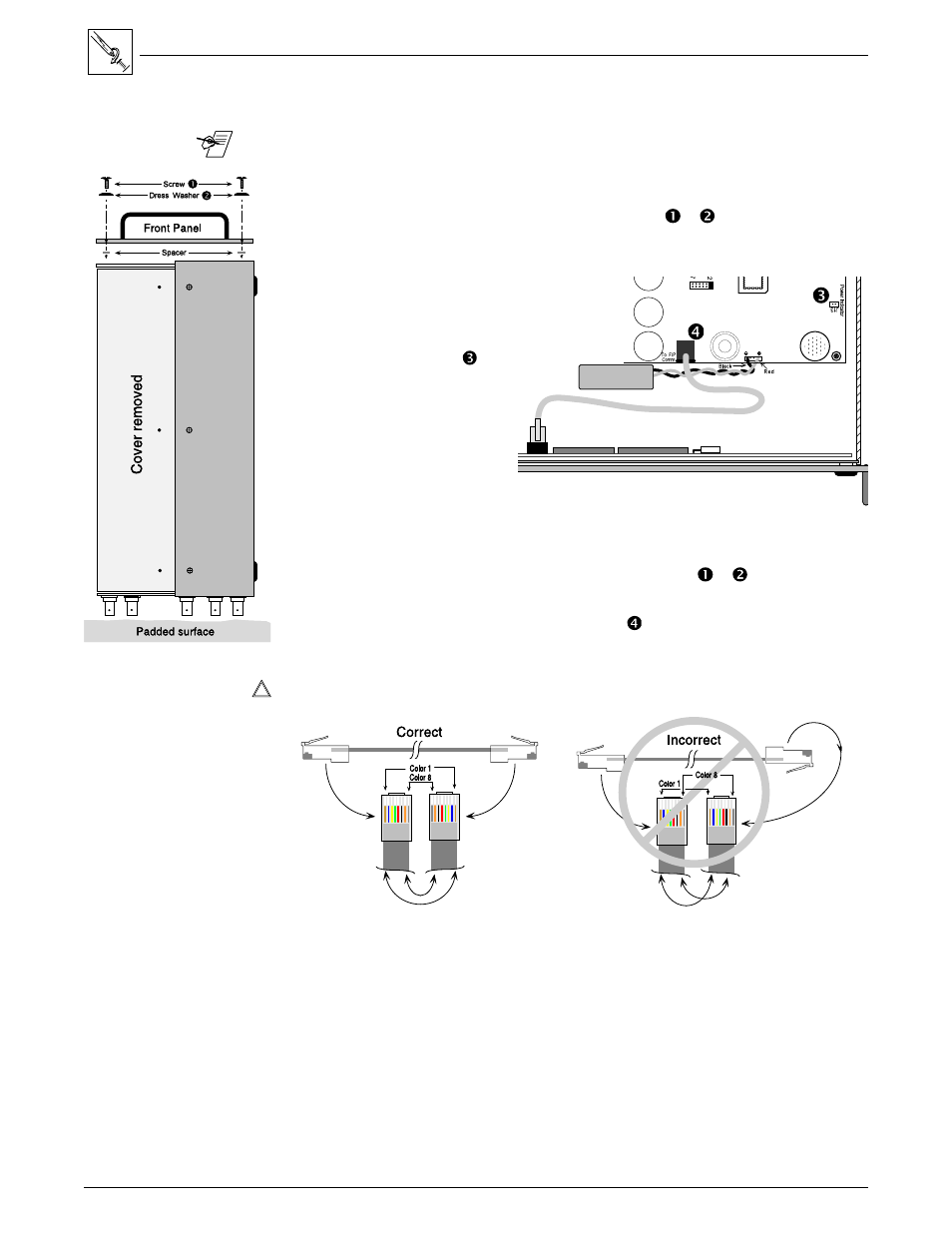

Figure 4-3. Front Panel Cable Connections and Battery Location
3. Remove the Blank Front and set it aside.
4. Position the QS-FPC on the front of the Matrix 100, with a spacer behind each
screw. Install the four screws and dress washers (items & ).
5. Connect the modular cable from the plug on the QS-FPC to the RJ45 connector
on the Matrix 100 Main Controller board. See in the picture above for the
RJ45 connector location.
___ Circuits may be damaged by using the wrong RJ45 cable. See Figure 4-5 for
correct orientation of cable conductors.
Figure 4-5. Wiring the RJ45 Cable
6. Refer to page 4-2 when reassembling the Matrix 100.
Operating instructions for the QS-FPC are found in Chapter 3.
Replacing the Lithium Battery
With the power disconnected and the cover removed (refer to page 4-2), locate
the battery as illustrated in Figure 4-3. Disconnect the red and black battery
cable from the Main Controller board by pulling on the connector. You may then
remove the battery which is attached on the bottom with a Velcro™ fastener.
Please heed any warnings on the battery concerning its proper disposal. Install
the correct type of replacement battery, attach the battery cable to the board,
and replace the cover.
LITHIUM
BATTERY
Figure 4-4. Matrix 100, face-up
